Home >> Mazda >> 2012 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Variable Valve Timing Actuator >> Locations

Variable Valve Timing Actuator: Locations

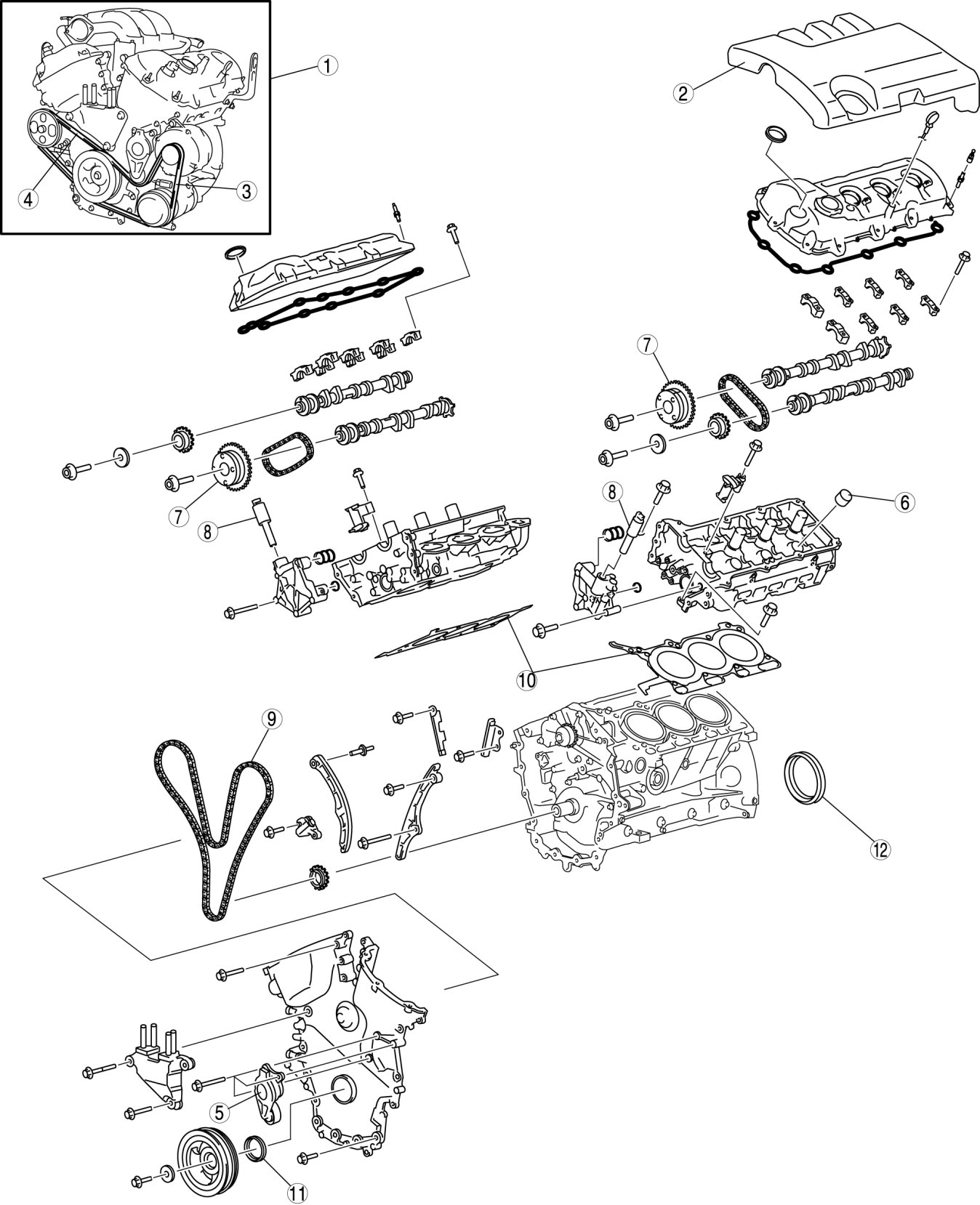

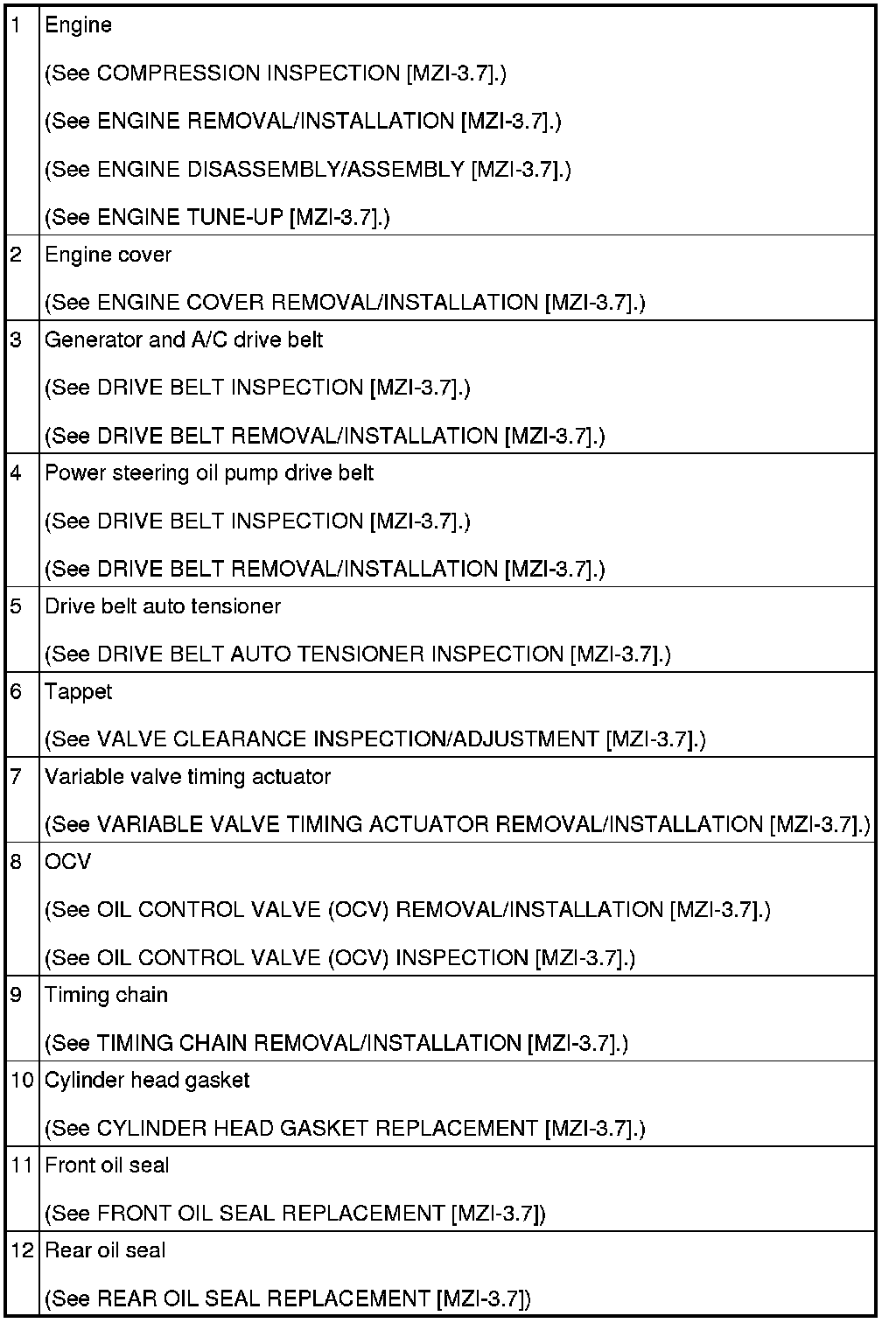

ENGINE LOCATION INDEX [MZI-3.7]
