Home
>>
Mazda
>>
2012
>>
CX-7 FWD L4-2.5L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
Scan Tool Testing and Procedures

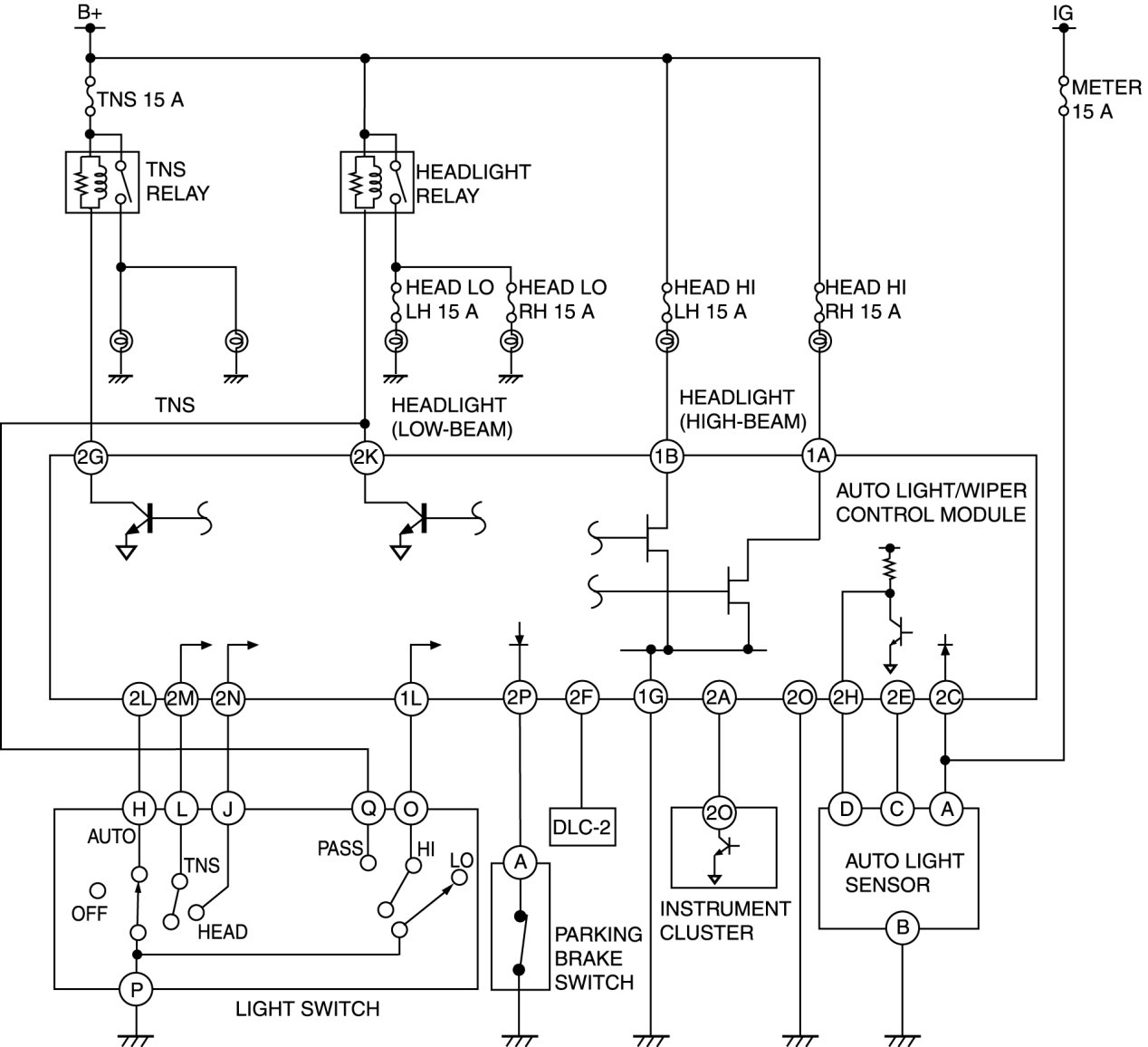

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [AUTO LIGHT/
WIPER CONTROL MODULE
]
