Power Transistor HVAC: Service and Repair

POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the glove compartment. Service and Repair

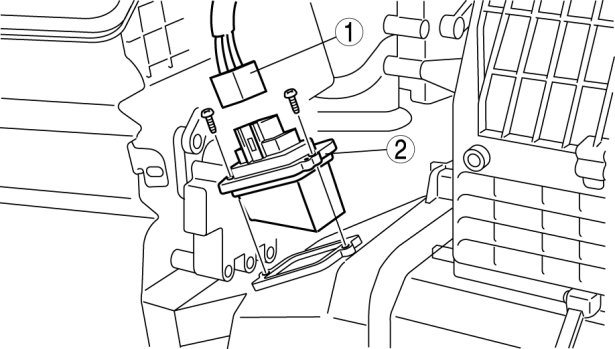

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
