Keyless Entry System (With Advanced Keyless Entry and Start System)

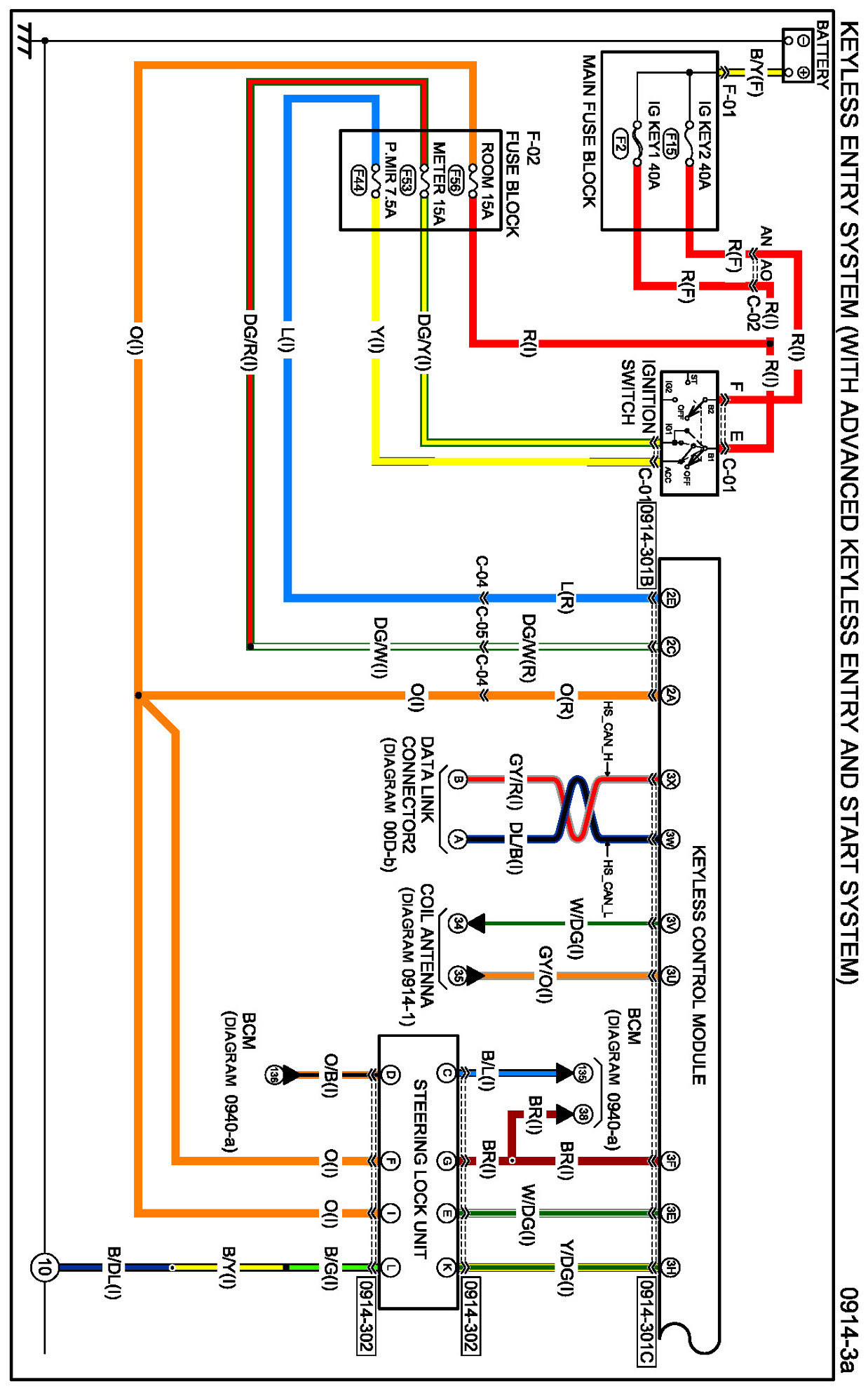

Diagram 0914-3a:




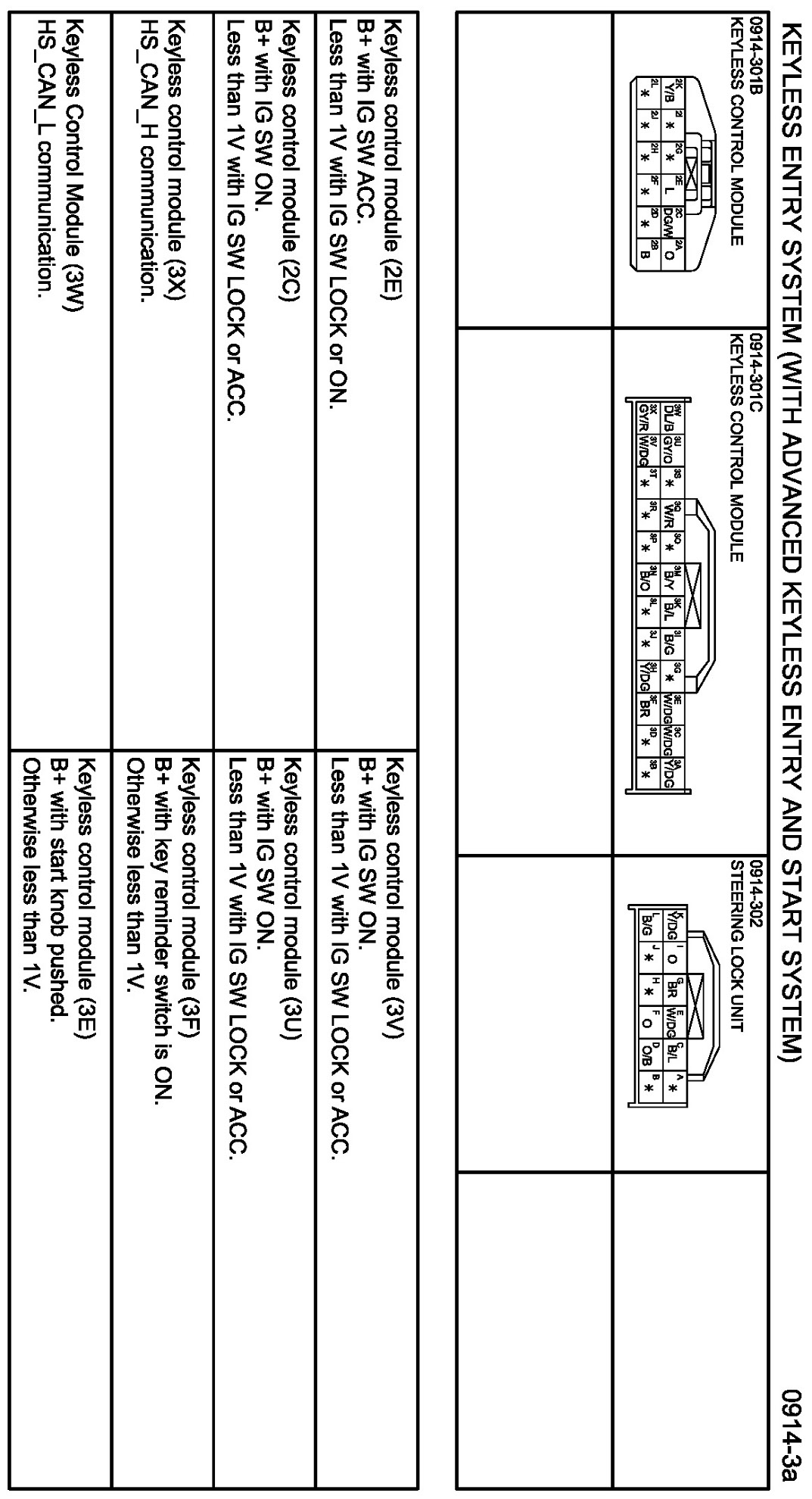

Connectors 0914-3a:




Routing View 0914-3a:

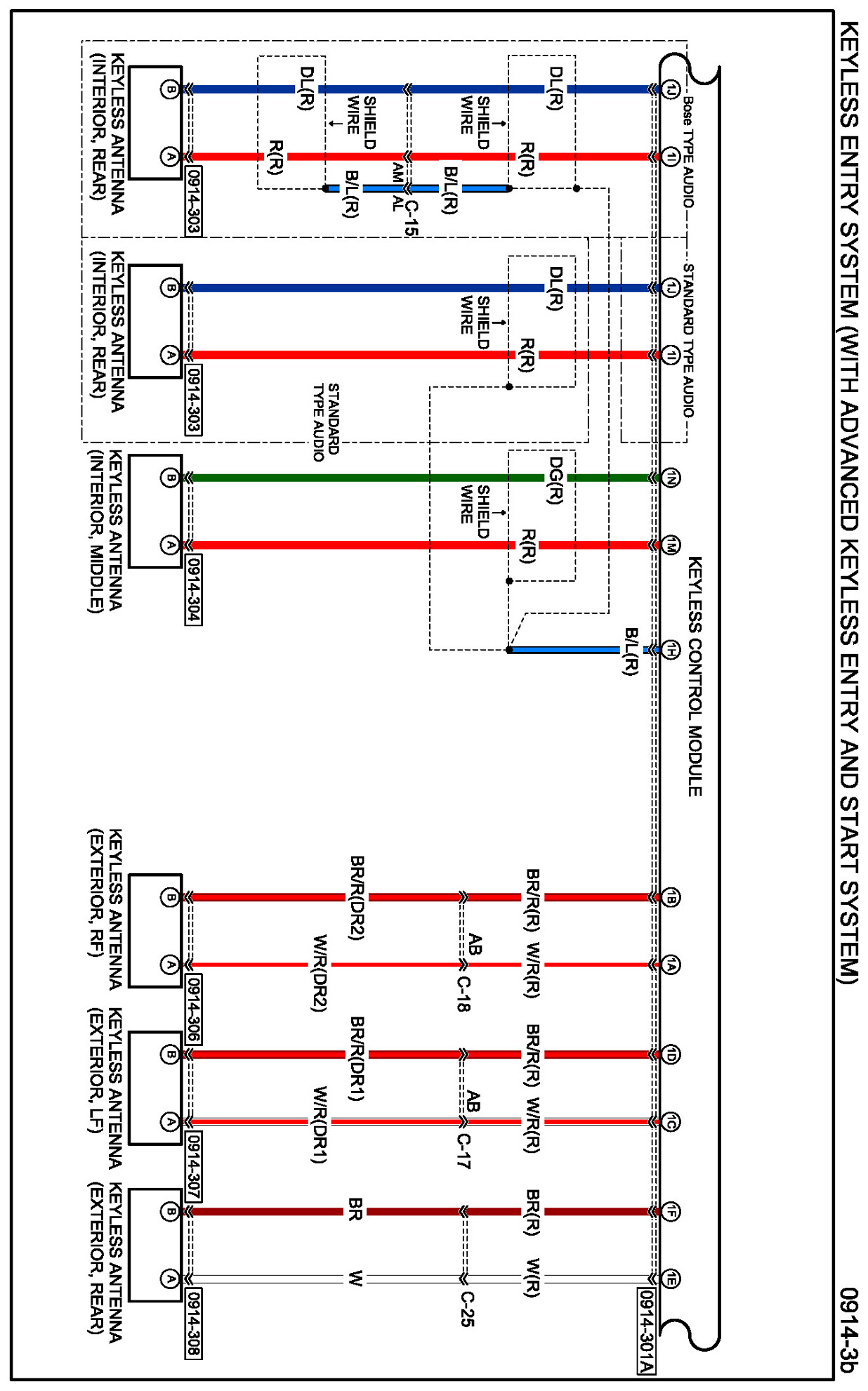

Diagram 0914-3b:




Connectors 0914-3b:

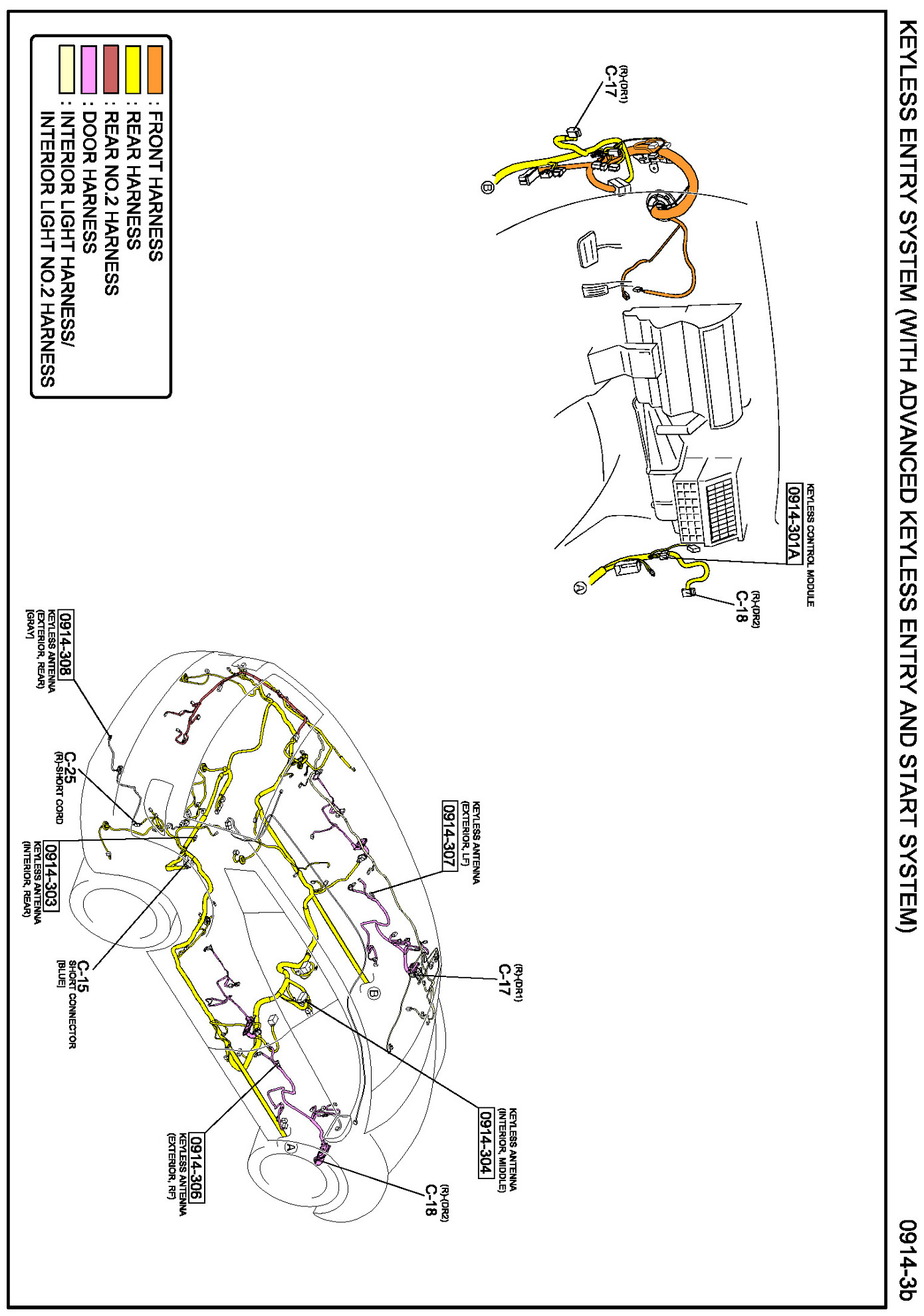

Routing View 0914-3b:

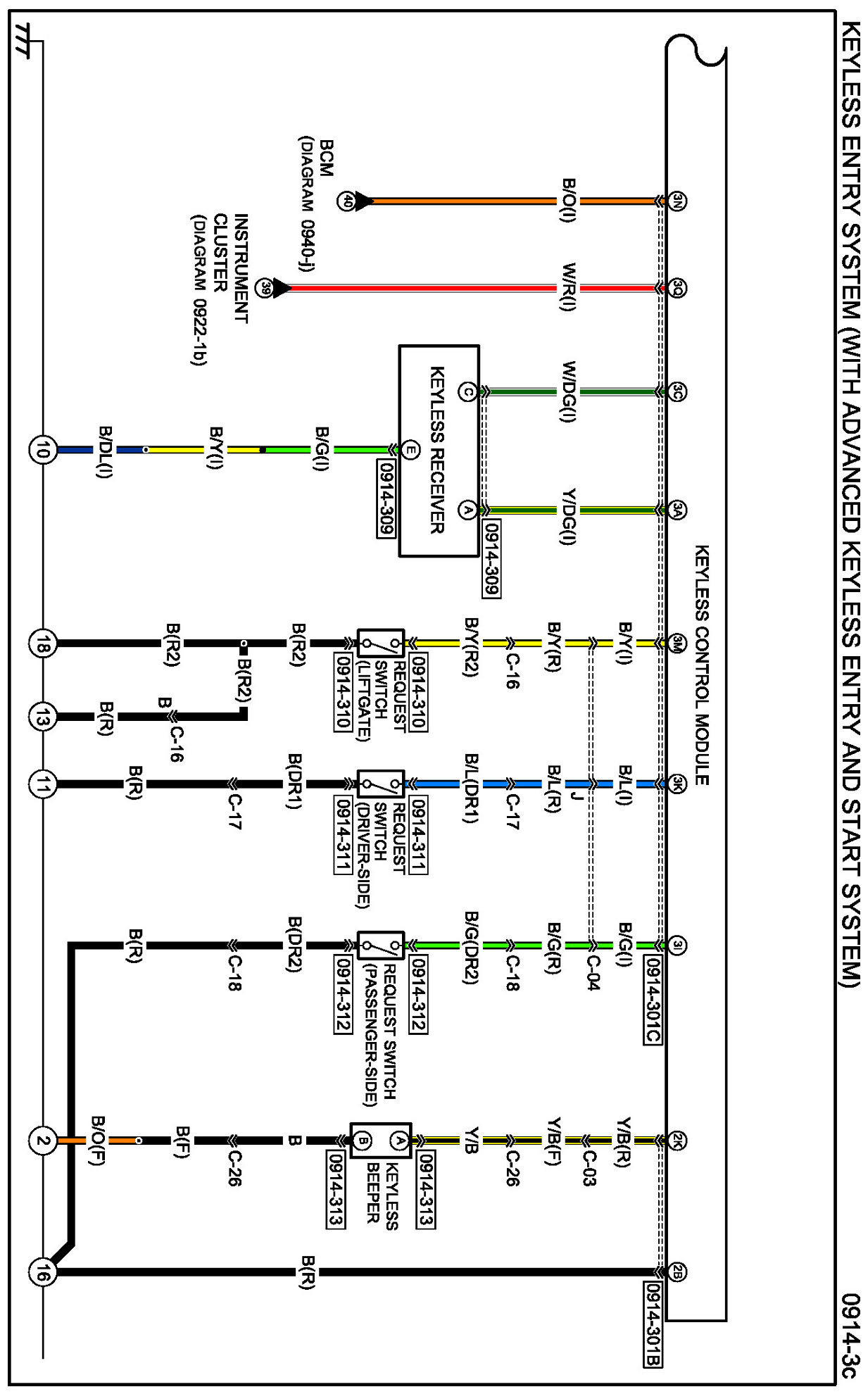

Diagram 0914-3c:

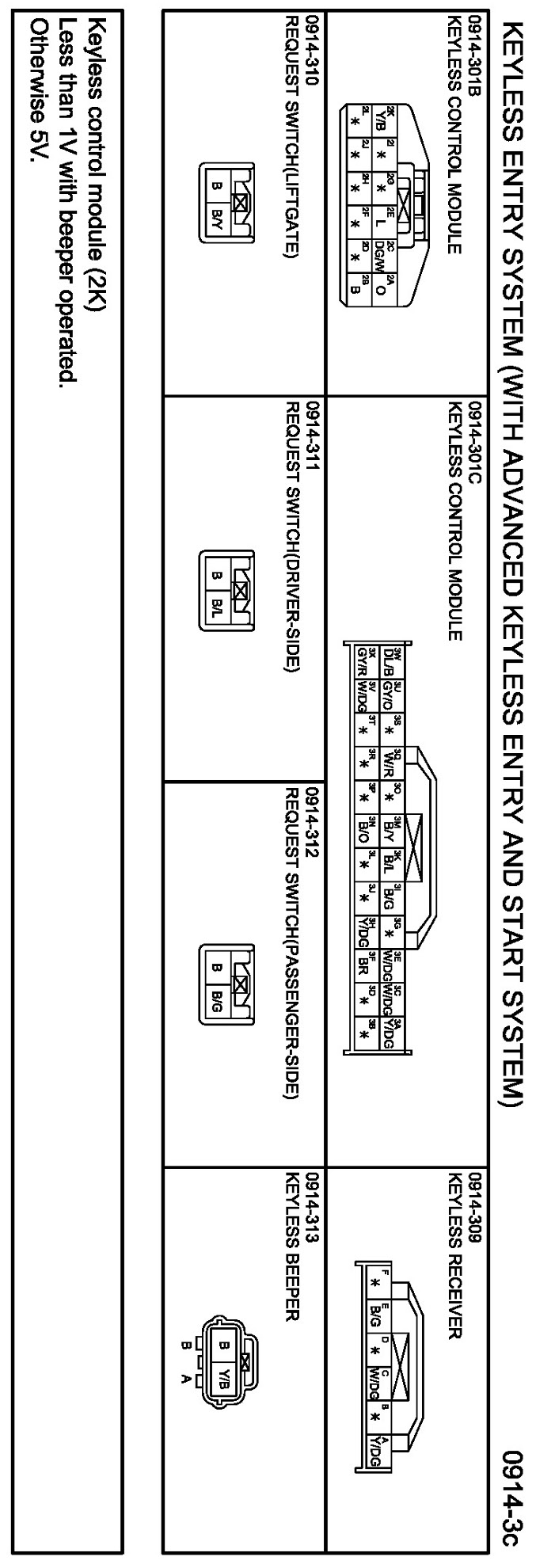

Connectors 0914-3c:

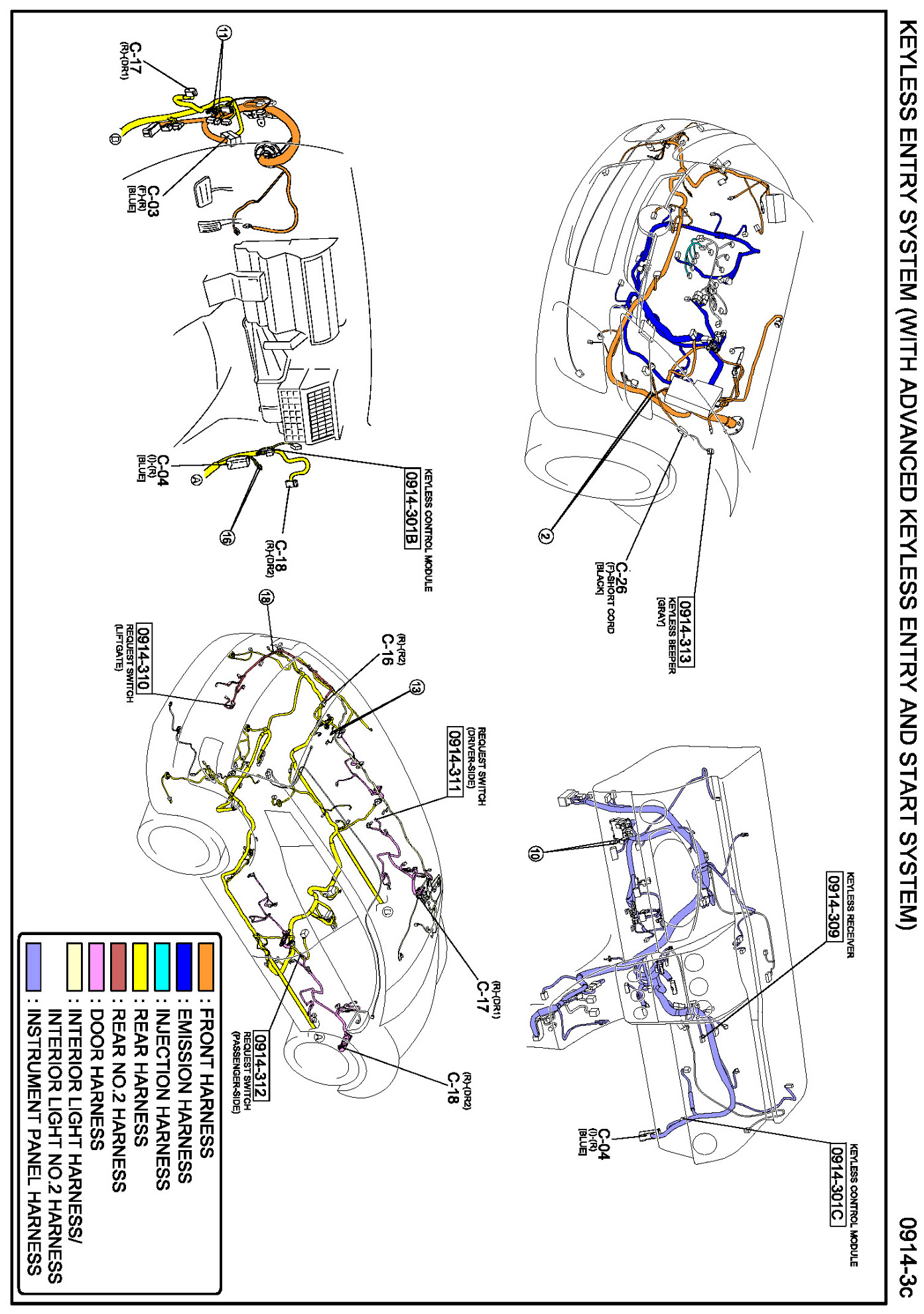

Routing View 0914-3c:
