Advanced Keyless Entry And Start System





PID/DATA MONITOR TABLE [ADVANCED KEYLESS ENTRY AND START SYSTEM]

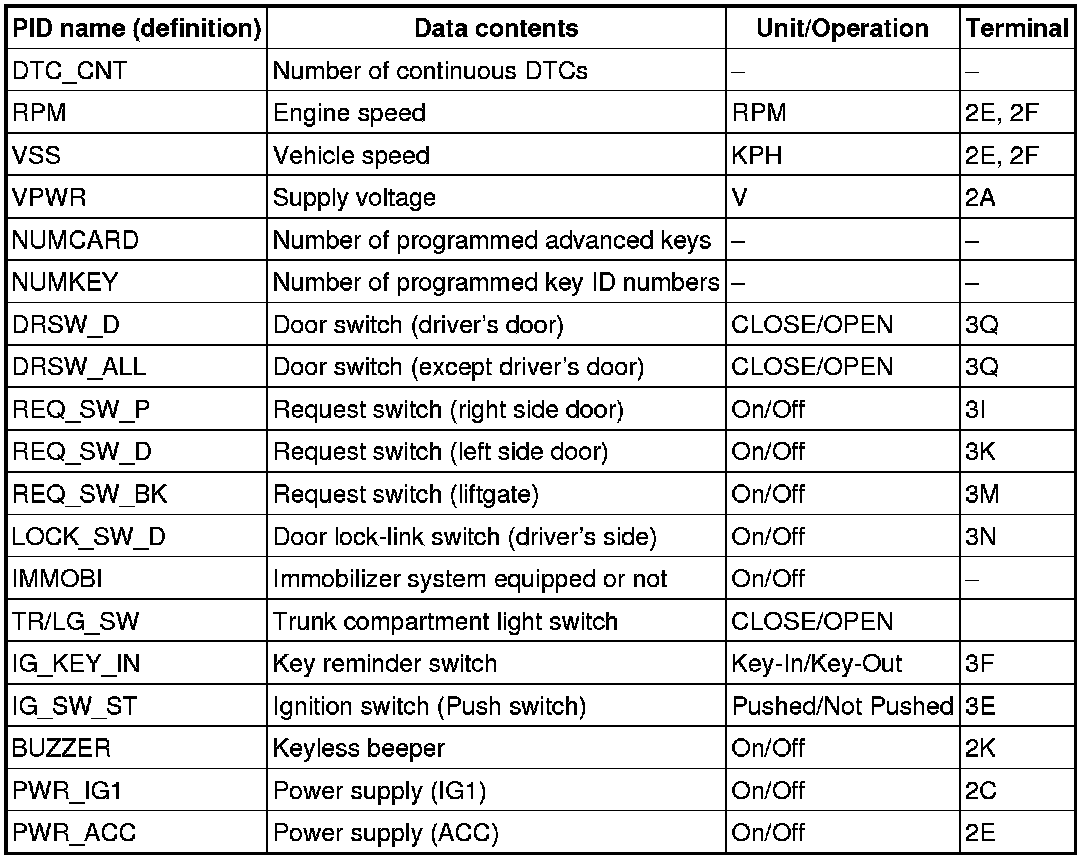

PID/data monitor table





Active command mode table
