Home >> Mazda >> 2012 >> CX-7 FWD L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Variable Valve Timing Actuator >> Locations

Variable Valve Timing Actuator: Locations

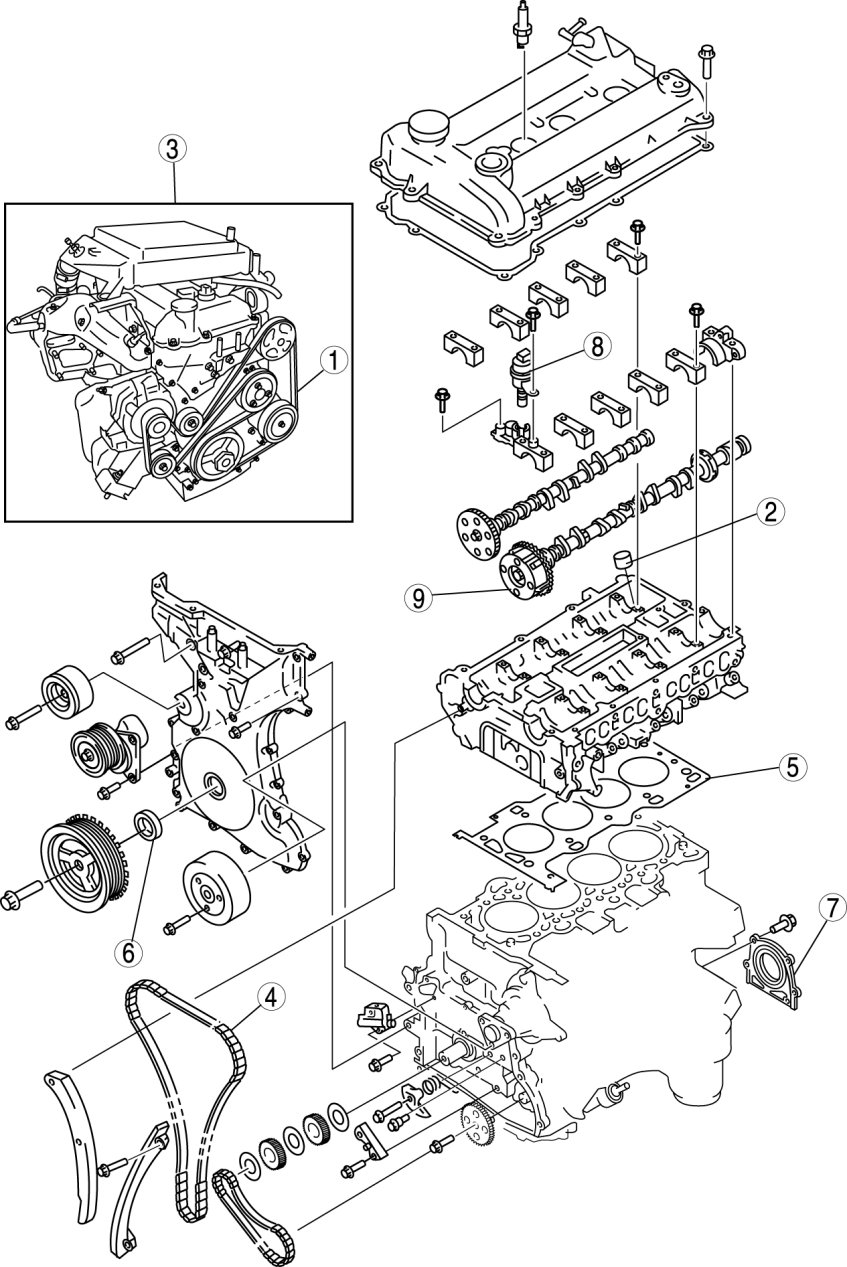

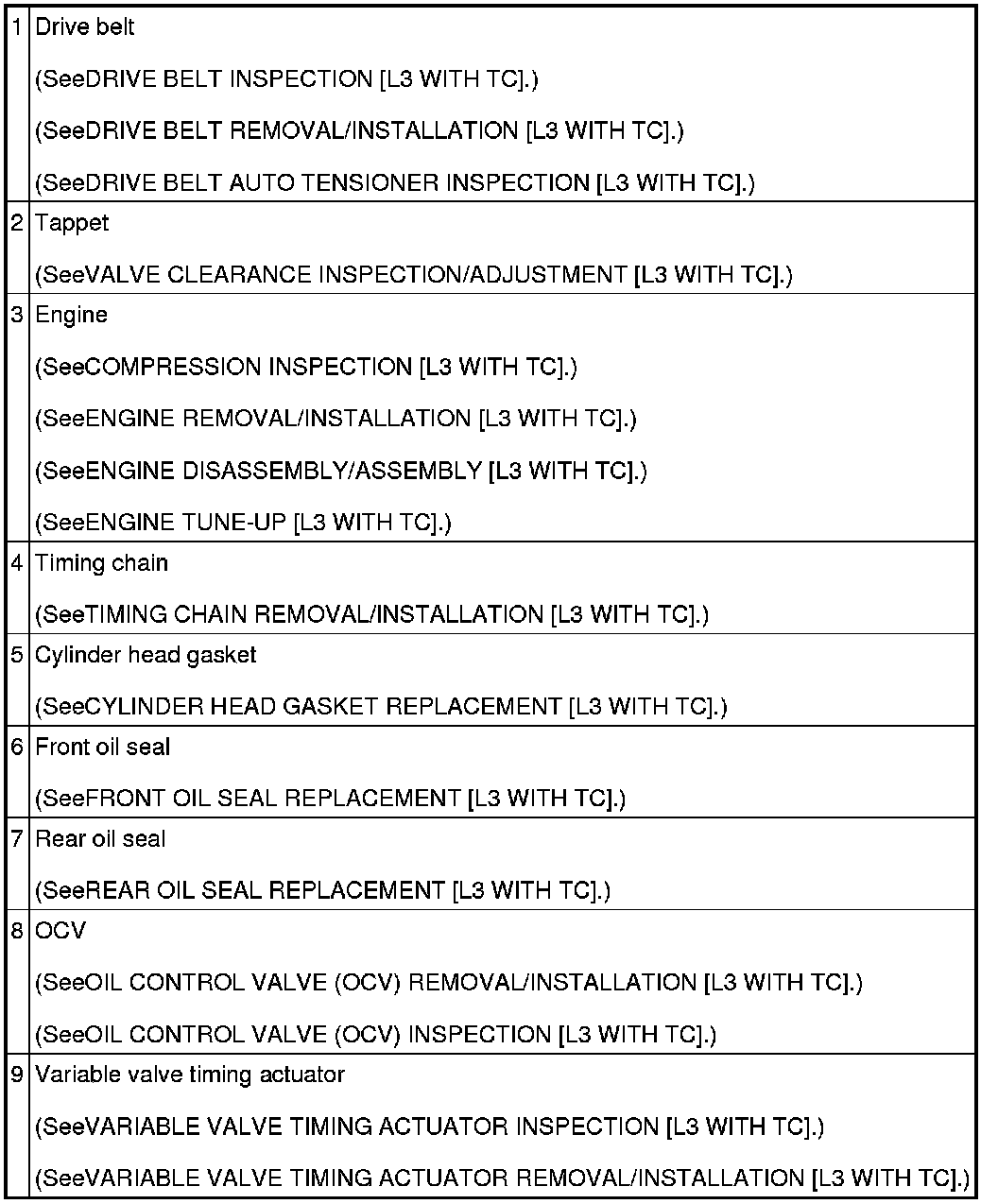

ENGINE LOCATION INDEX [L3 WITH TC]
