No. 1 Auto Door Lock Function Does Not Operate





No.1 AUTO DOOR LOCK FUNCTION DOES NOT OPERATE [AUTO DOOR LOCK SYSTEM]

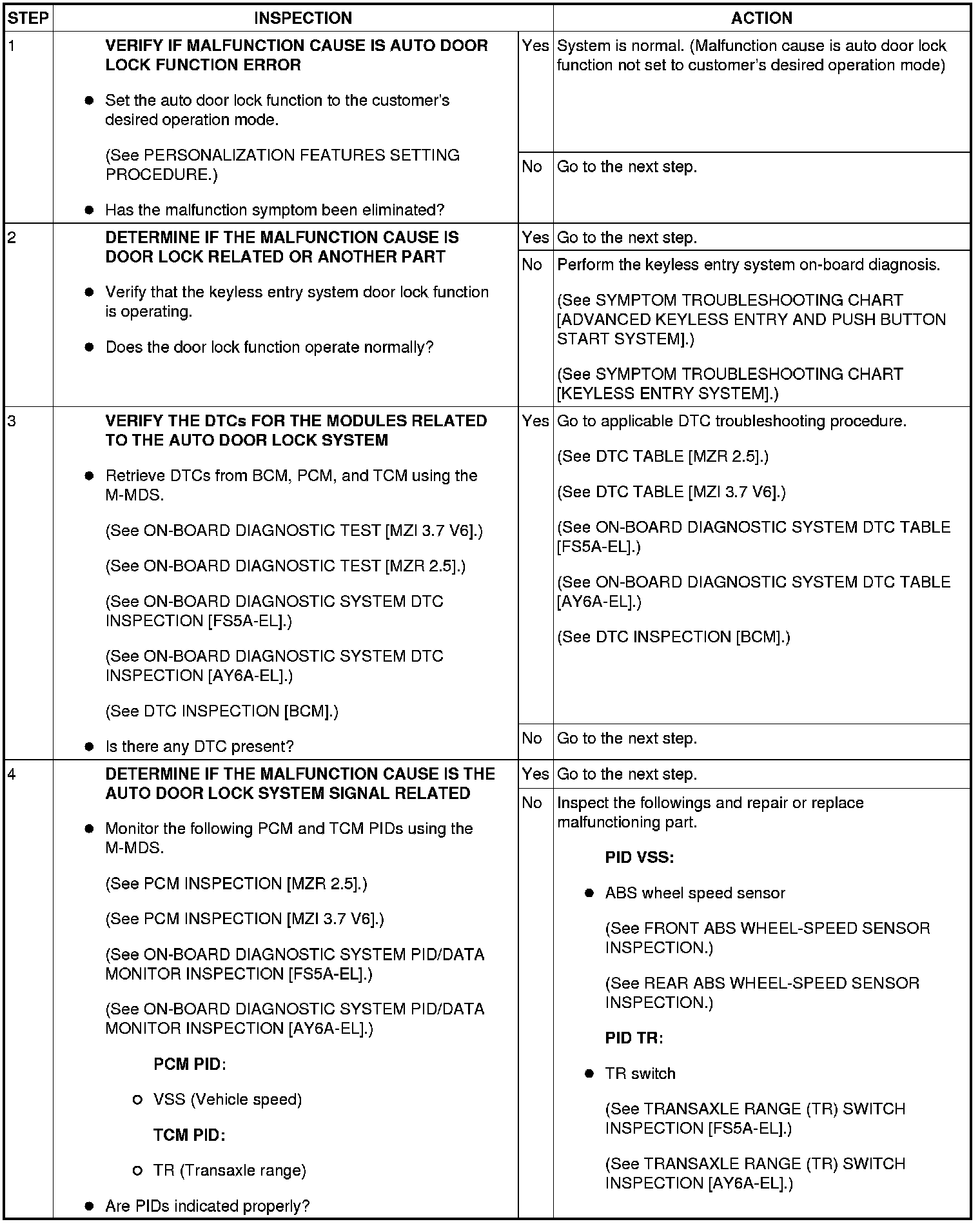

Diagnostic procedure









*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system
