Home >> Mazda >> 2012 >> 6 L4-2.5L >> Repair and Diagnosis >> Wiper and Washer Systems >> Description and Operation

Wiper and Washer Systems: Description and Operation

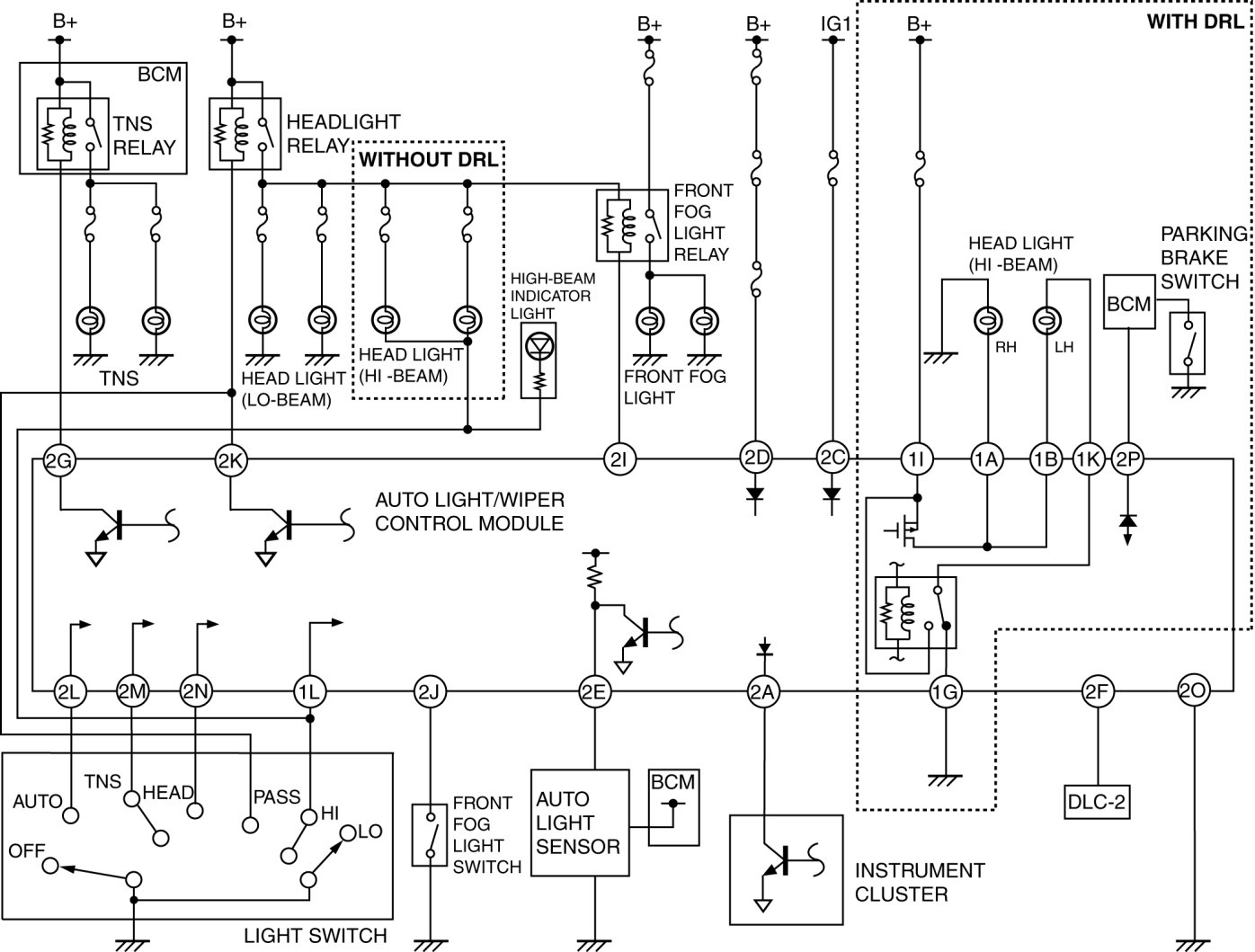

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [AUTO LIGHT/WIPER CONTROL MODULE]
