Caliper (Front) Disassembly/Assembly

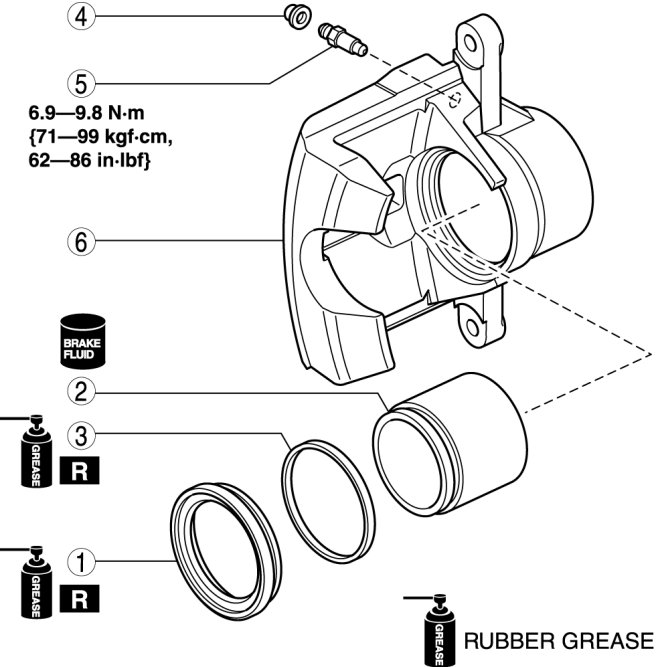

CALIPER (FRONT) DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.










2. Assemble in the reverse order of removal.

Piston Disassembly Note

CAUTION:
- The piston could be damaged if it is blown out with great force. Blow compressed air slowly to prevent the piston from suddenly popping out.

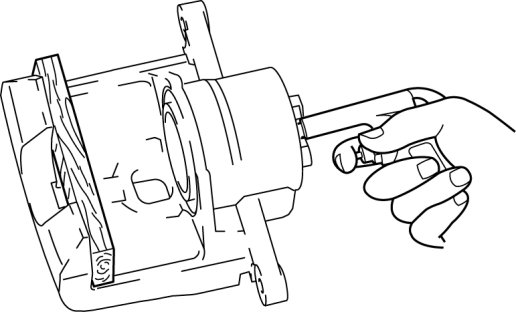

1. Place a piece of wood in the caliper, then blow compressed air through the hole to force the piston out of the caliper.
