Home >> Mazda >> 2012 >> 6 L4-2.5L >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

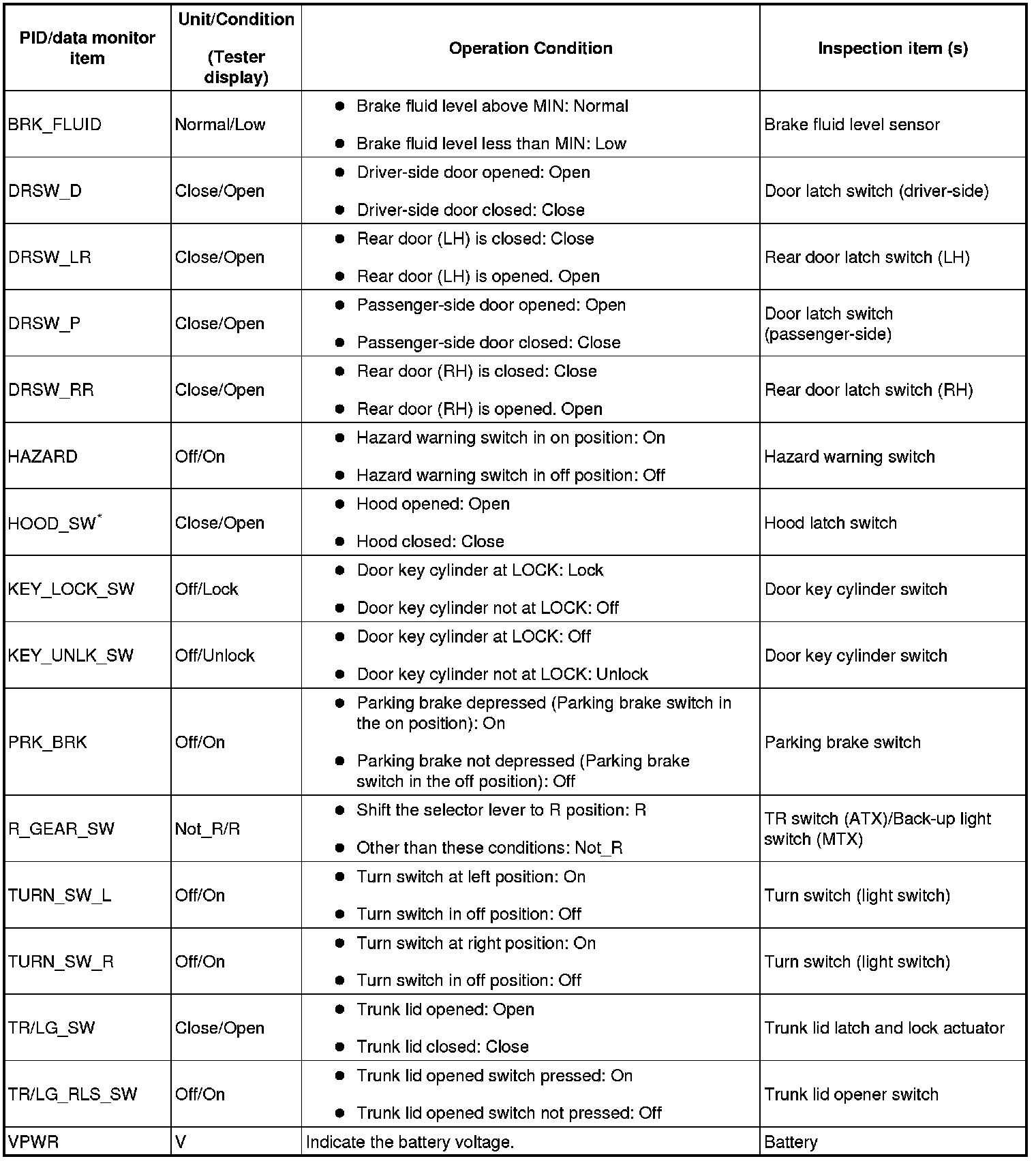

PID/DATA MONITOR TABLE [BCM]





*
Vehicles with theft-deterrent system
