Windshield Washer Motor: Service and Repair

WASHER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front mudguard (RH). Mudguard Removal/Installation

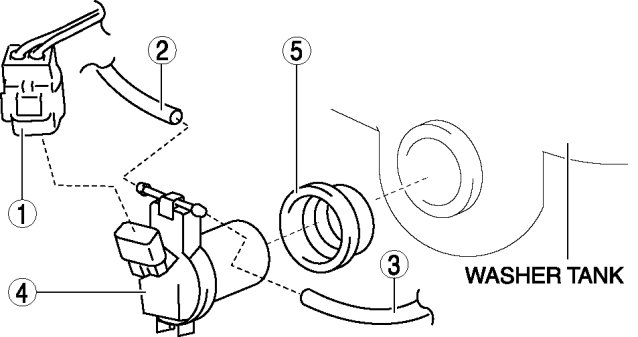

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
