Ground Distribution

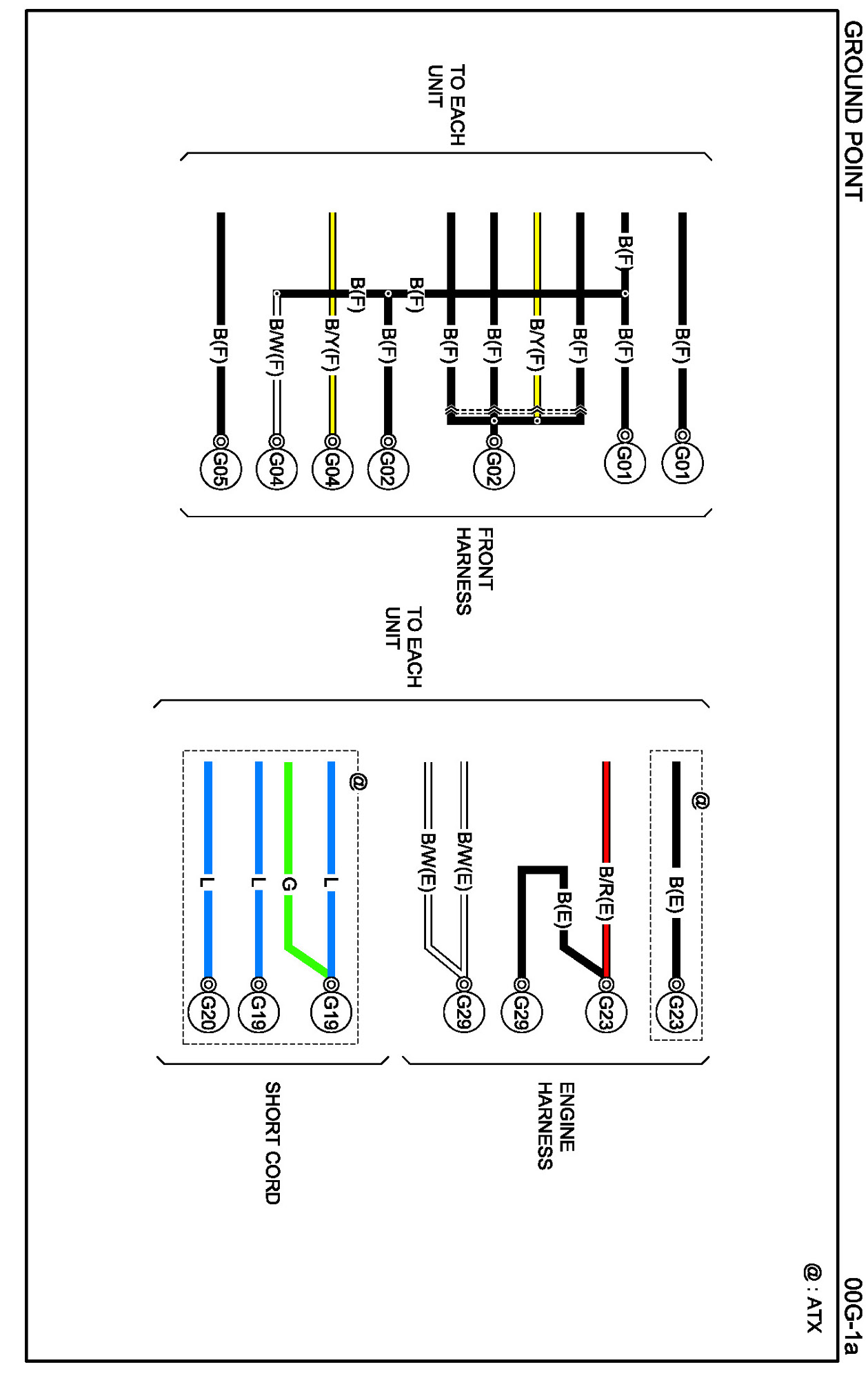

Diagram 00G-1a:

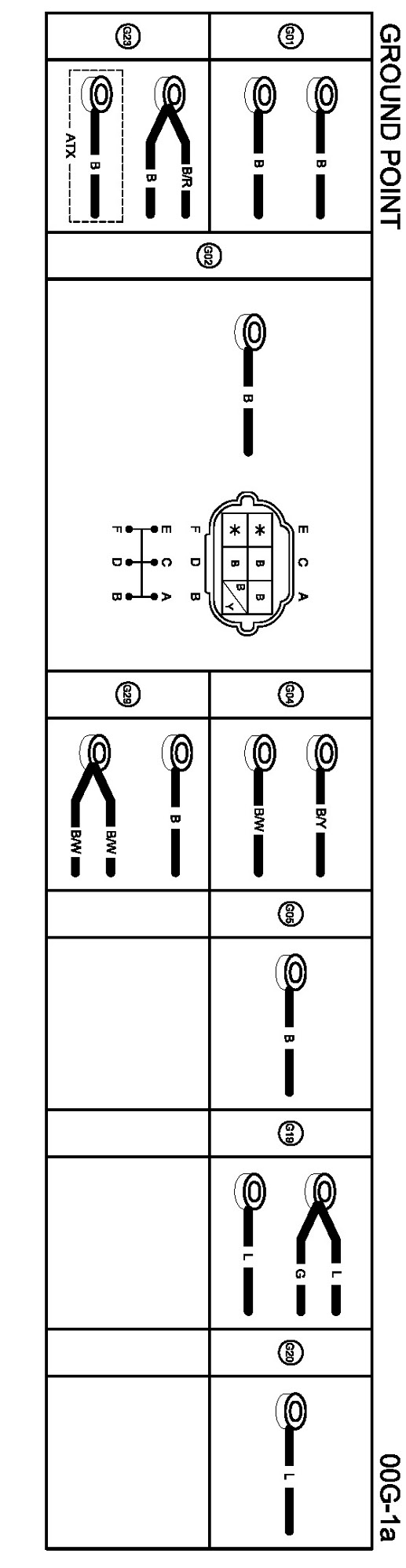

Connectors 00G-1a:

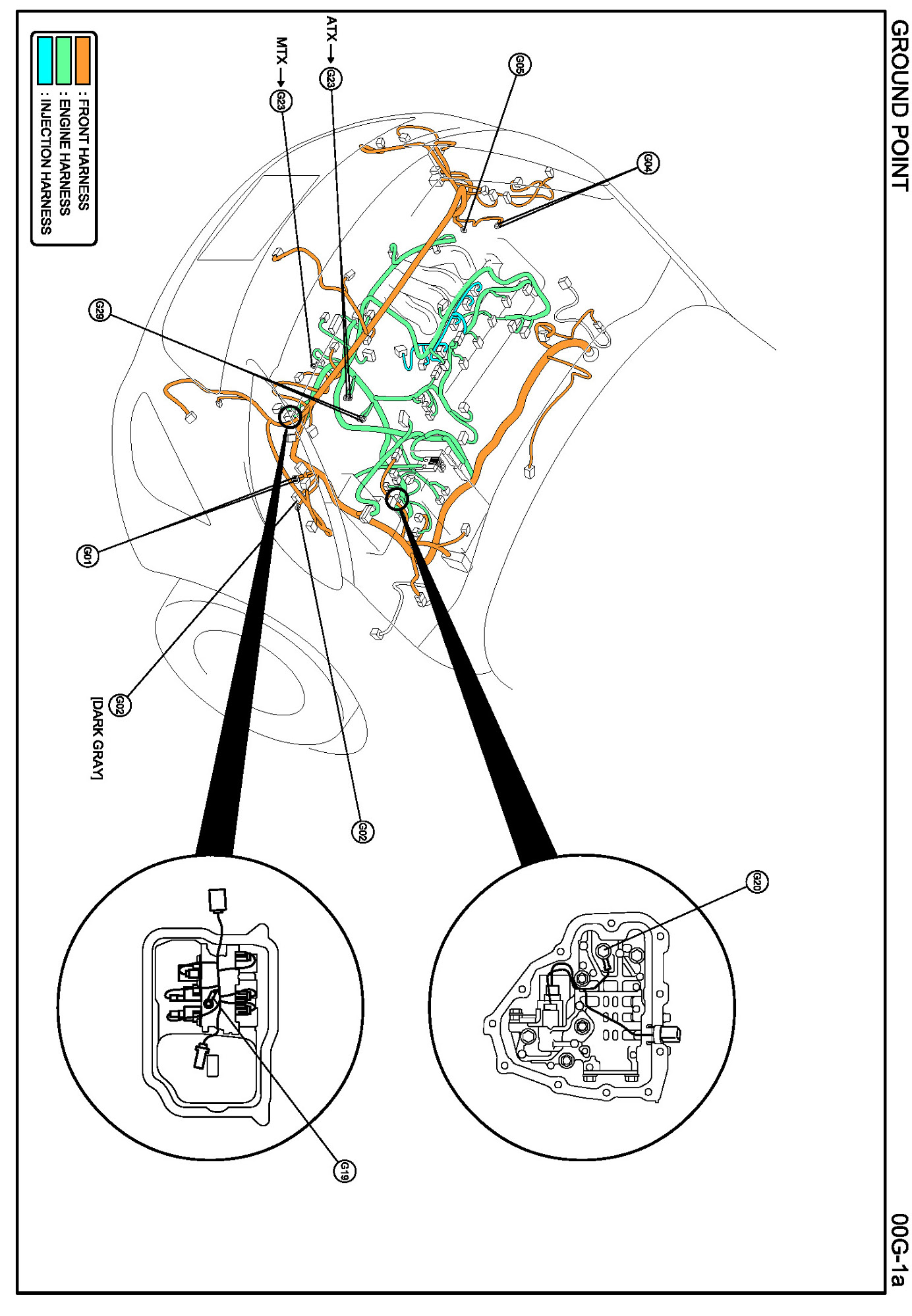

Routing View 00G-1a:

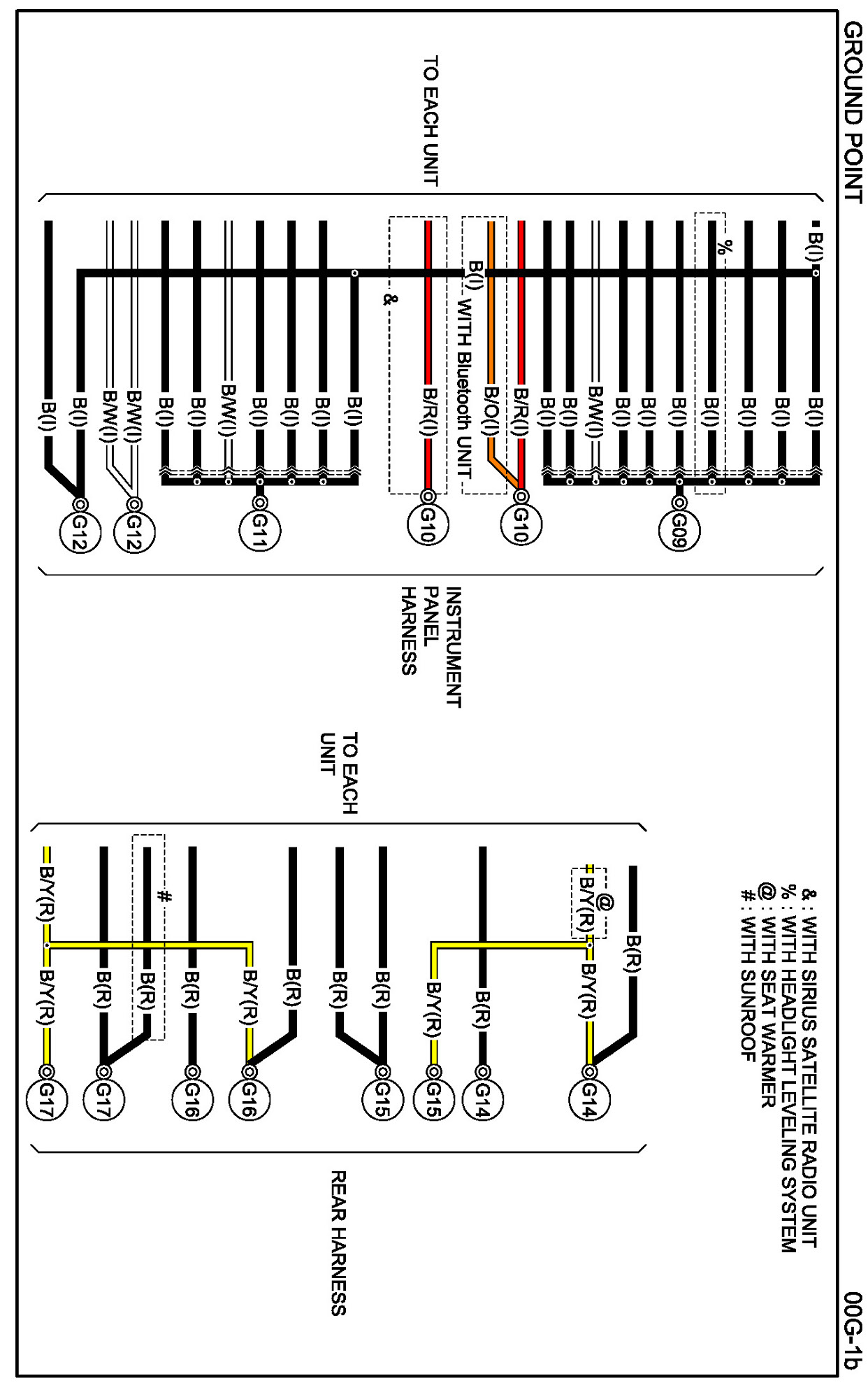

Diagram 00G-1b:

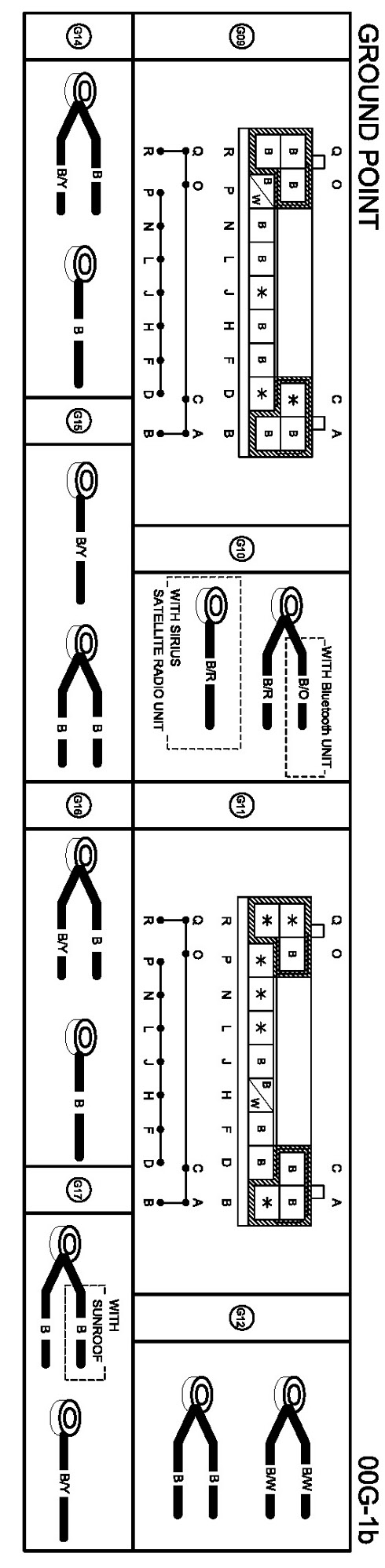

Connectors 00G-1b:

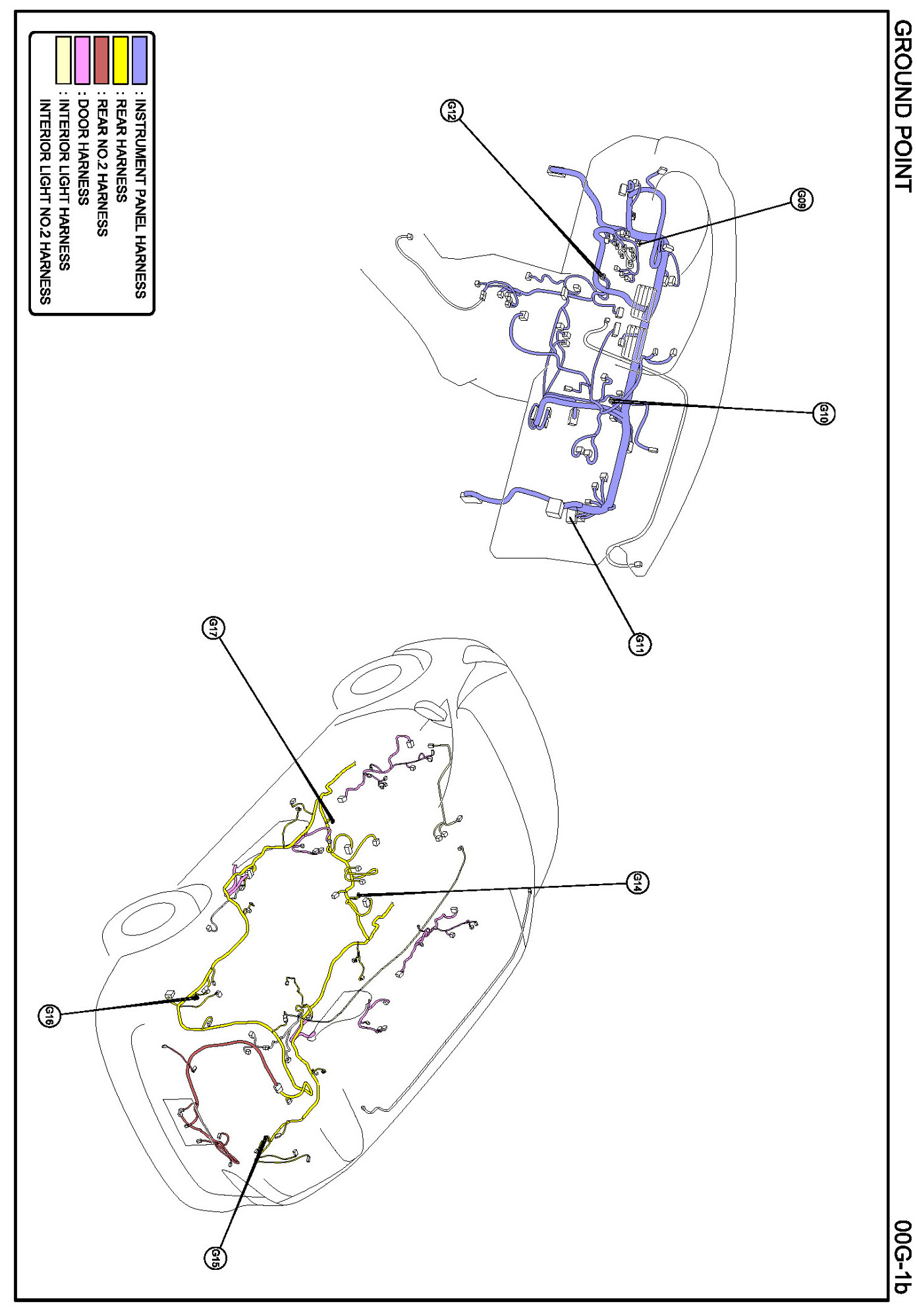

Routing View 00G-1b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
