License Plate Lamp: Service and Repair

LICENSE PLATE LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Liftgate upper trim

b. Liftgate side trim

c. Liftgate recess

d. Liftgate lower trim

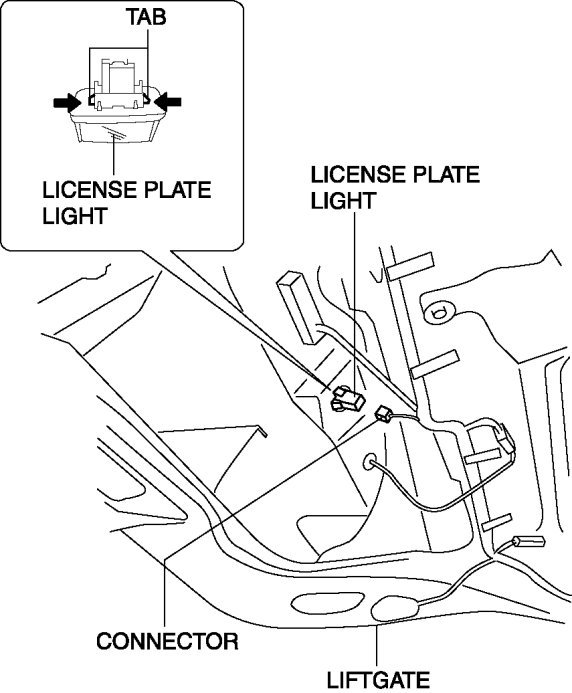

3. Disconnect the connector.






4. Release the tabs in the direction of arrow shown in the figure.

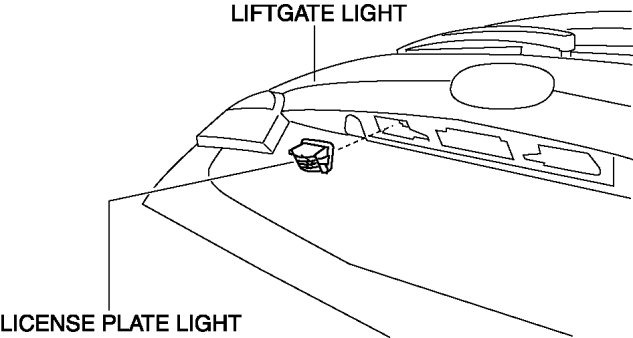

5. Remove the license plate light.






6. Install in the reverse order of removal.
