Front Power MOS FET Transistor

FRONT POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER]

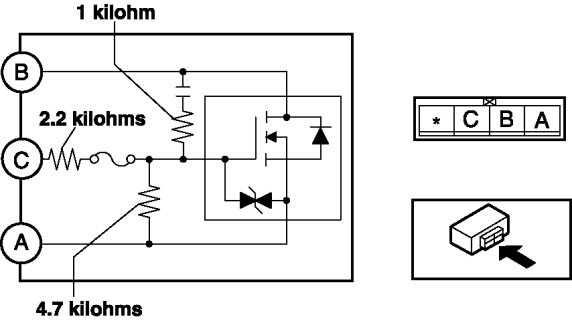

1. Verify that the continuity between the front power MOS FET terminals is as indicated in the table.






- If there is any malfunction, replace the front power MOS FET.
- If the front blower motor operation is not normal even though no malfunction can be verified, inspect the climate control unit. Testing and Inspection
