Seat Temperature Switch: Testing and Inspection

SEAT WARMER SWITCH INSPECTION

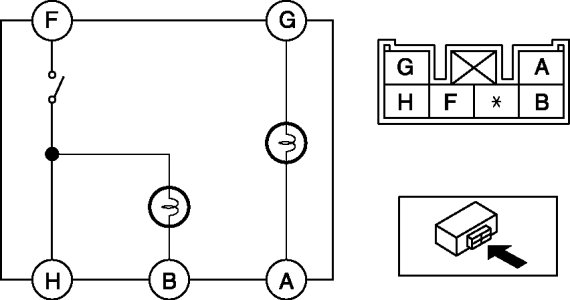

Left Side

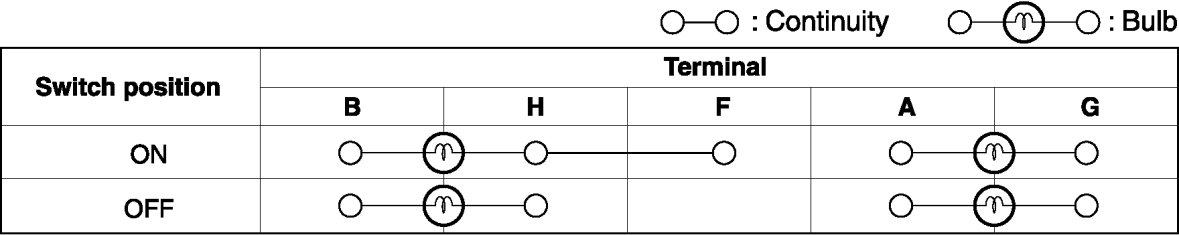

1. Verify that the continuity between the seat warmer switch terminals is as indicated in the table.






- If not as indicated in the table, replace the seat warmer switch. Service and Repair

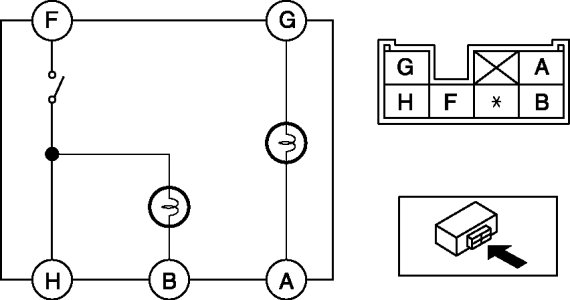

Right Side

1. Verify that the continuity between the seat warmer switch terminals is as indicated in the table.






- If not as indicated in the table, replace the seat warmer switch. Service and Repair
