Control System Personalization Features Setting Procedure: Notes

WARNING: This page is about a different car, the 2013 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Connect the M-MDS to the DLC-2.

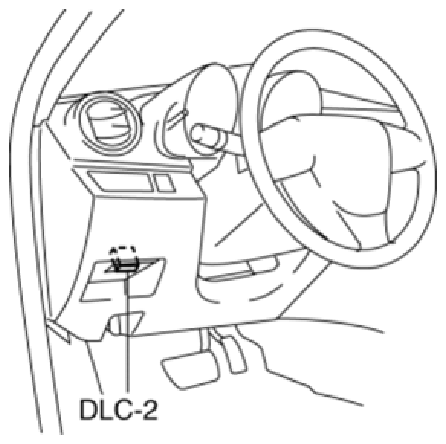

Fig 1: Identifying DLC-2
After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using the IDS (laptop PC)
  - Select the "Module Programming".
  - Select the "Programmable Parameters".
Select menu in the "Personality", "Interior lighting", "Washer/Wiper", "Security" or "Power Door Locks".

Select an item name, and then select option. Items of "Personality"

M-MDS display	Function	Initial setting	Setting content	Control unit
2 stage door unlocking (without AKE)	2-step unlocking system can be set.	Enabled	Disabled / Enabled	BCM
Answer feed back (hazard)	Answer back hazard can be set to inoperable.	Enabled	Enabled / Disabled	BCM
Answer feed back (horn)	Answer back horn can be set to inoperable.	Enabled	Enabled / Disabled	BCM
Auto relock timer (without AKE)	Auto re-lock operation timing can be changed.	30sec	30sec / 60sec / 90sec	BCM
Rear defroster off timer	Rear defroster off timer operation timing can be changed.	15min	15min / 20min / 25min / 30min	BCM
Room lamp control time (when no transmitter is in the room)	The elapsed time between the doors closing and the interior light turning off can be adjusted.	15s	7.5s / 15s / 30s / 60s	BCM
Room lamp control time (when the transmitter is in the room)	The elapsed time between the doors unlocking and the interior light turning off can be adjusted.	30s	7.5s / 15s / 30s / 60s	BCM
Smart turn	The turn light system function can be set.	Disabled	Disabled / Enabled	BCM
