Body Control Module (BCM) Removal/Installation: MTX
WARNING: This page is about a different car, the 2013 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Perform the BCM configuration when replacing it. (See BODY CONTROL MODULE (BCM) CONFIGURATION .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Remove the following parts:
- Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION )
- Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
- Shift knob (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R] .) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R] .) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
- Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
- Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
- Console (See CONSOLE REMOVAL/INSTALLATION .)
- Set the hood release lever out of the way. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
- Remove the lower panel. (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
- Remove the starter cut relay. (with advanced keyless entry and push button start system) (See STARTER CUT RELAY REMOVAL/INSTALLATION [MTX] .)

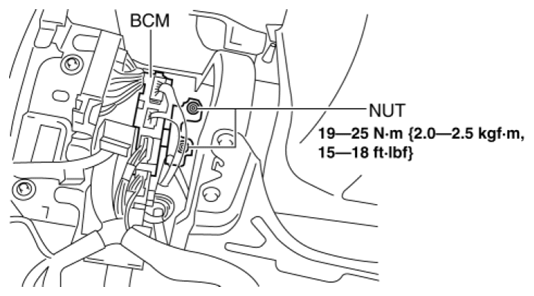

- Remove the nuts shown in the figure.

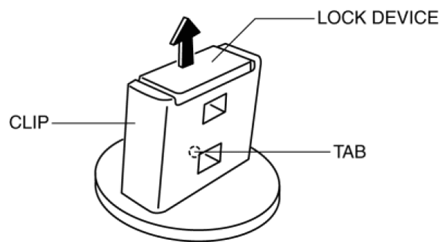

- Pry off the lock device of the clip while pressing the tab in the position shown in the figure.

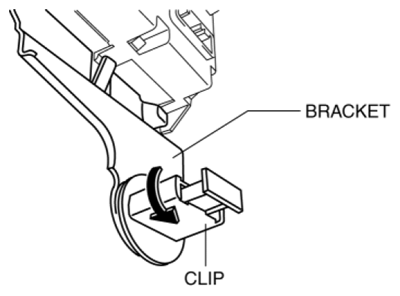

- Rotate the clip in the direction of the arrow shown in the figure.

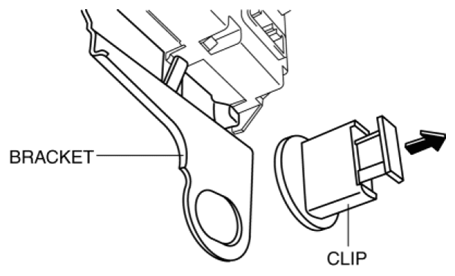

- Remove the clip by pulling it in the direction of the arrow shown in the figure.

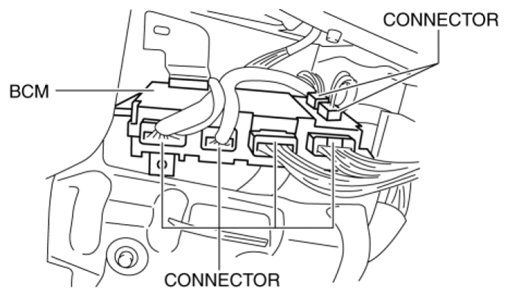

- Disconnect the connector shown in the figure.

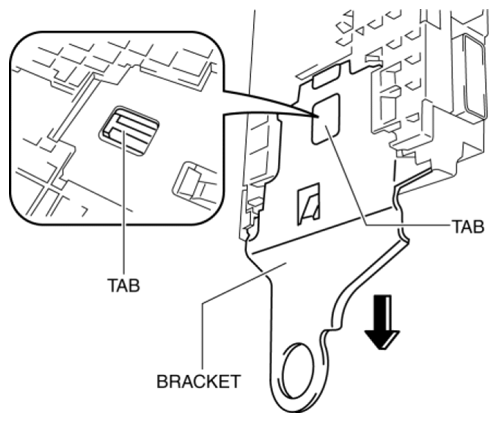

- While pressing the tab shown in the figure, pull the bracket in the direction of the arrow and remove it.
- Remove the BCM.
- Install in the reverse order of removal.
