Windshield Washer Motor: Service and Repair

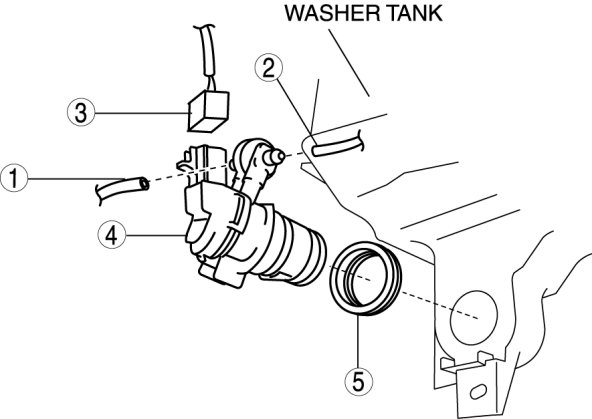

WASHER MOTOR REMOVAL/INSTALLATION

4SD

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement

2. Remove the front mudguard (RH). Service and Repair

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

5HB

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the front mudguard (RH). Service and Repair

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
