Input/Turbine Speed Sensor Removal/Installation

INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [FS5A-EL]

CAUTION:
- Always use a new bolt. If the removed input/turbine speed sensor installation bolt is reused, it may cause oil leakage.
- A sealant coating is applied to the input/turbine speed sensor installation bolt to prevent oil leakage from the installation bolt hole which passes through the component.

1. Perform the following procedures.
a. Remove the battery cover. Removal and Replacement

b. Disconnect the negative battery cable.

c. Remove the air cleaner component. Service and Repair

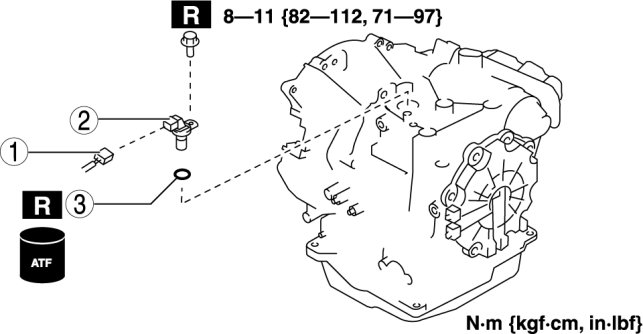

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
