Mazda
>>
2012
>>
3 L4-2.5L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Standard Deployment Control System
Standard Deployment Control System

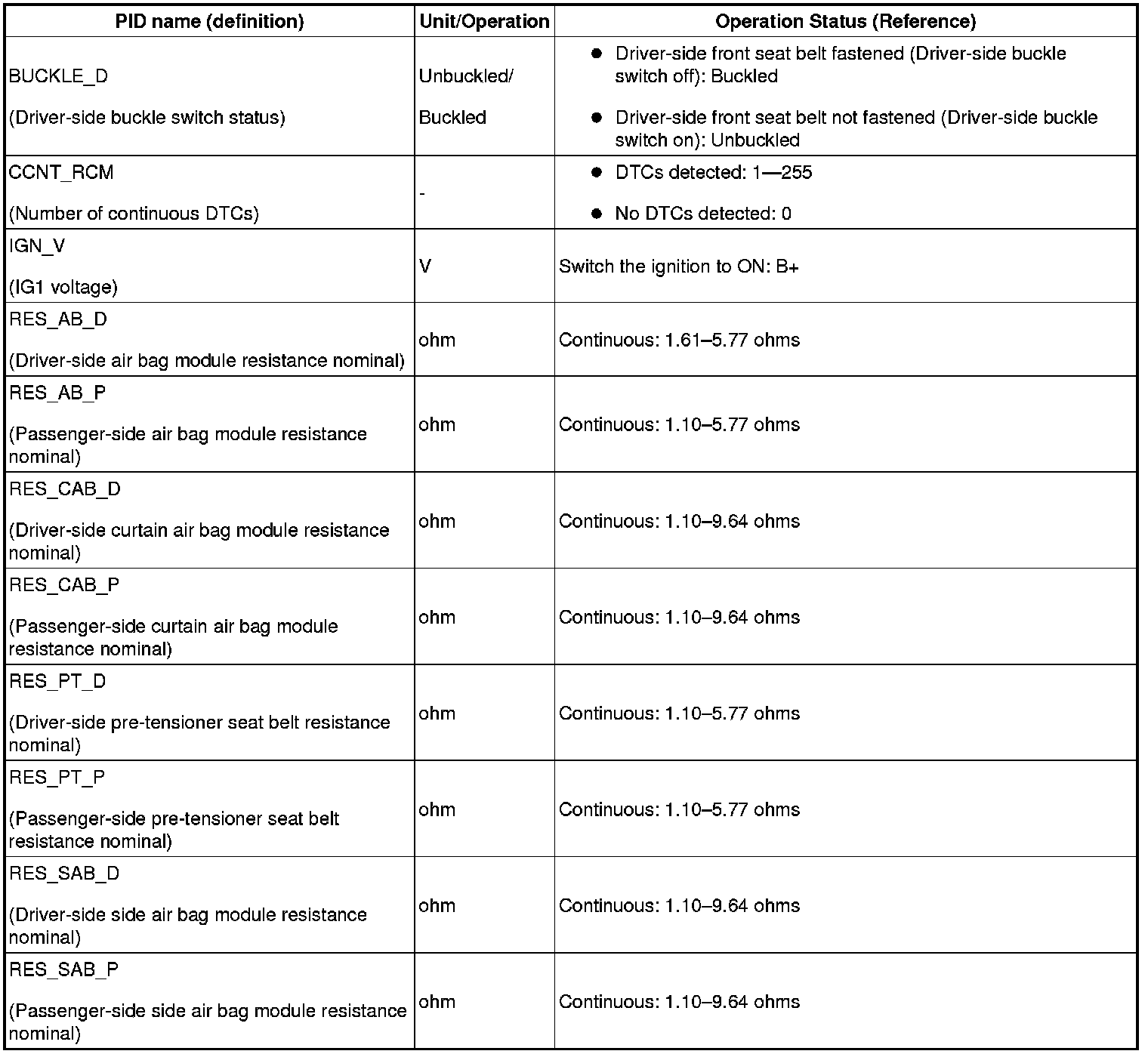

PID/DATA MONITOR TABLE [STANDARD DEPLOYMENT CONTROL SYSTEM]
