Blower Motor Resistor: Service and Repair

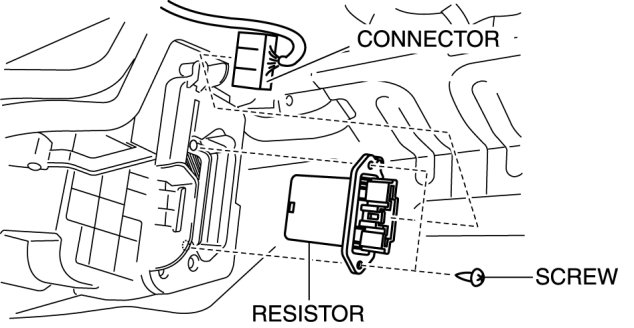

RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement

2. Disconnect the connector.






3. Remove the screw.

4. Remove the resistor.

5. Install in the reverse order of removal.
