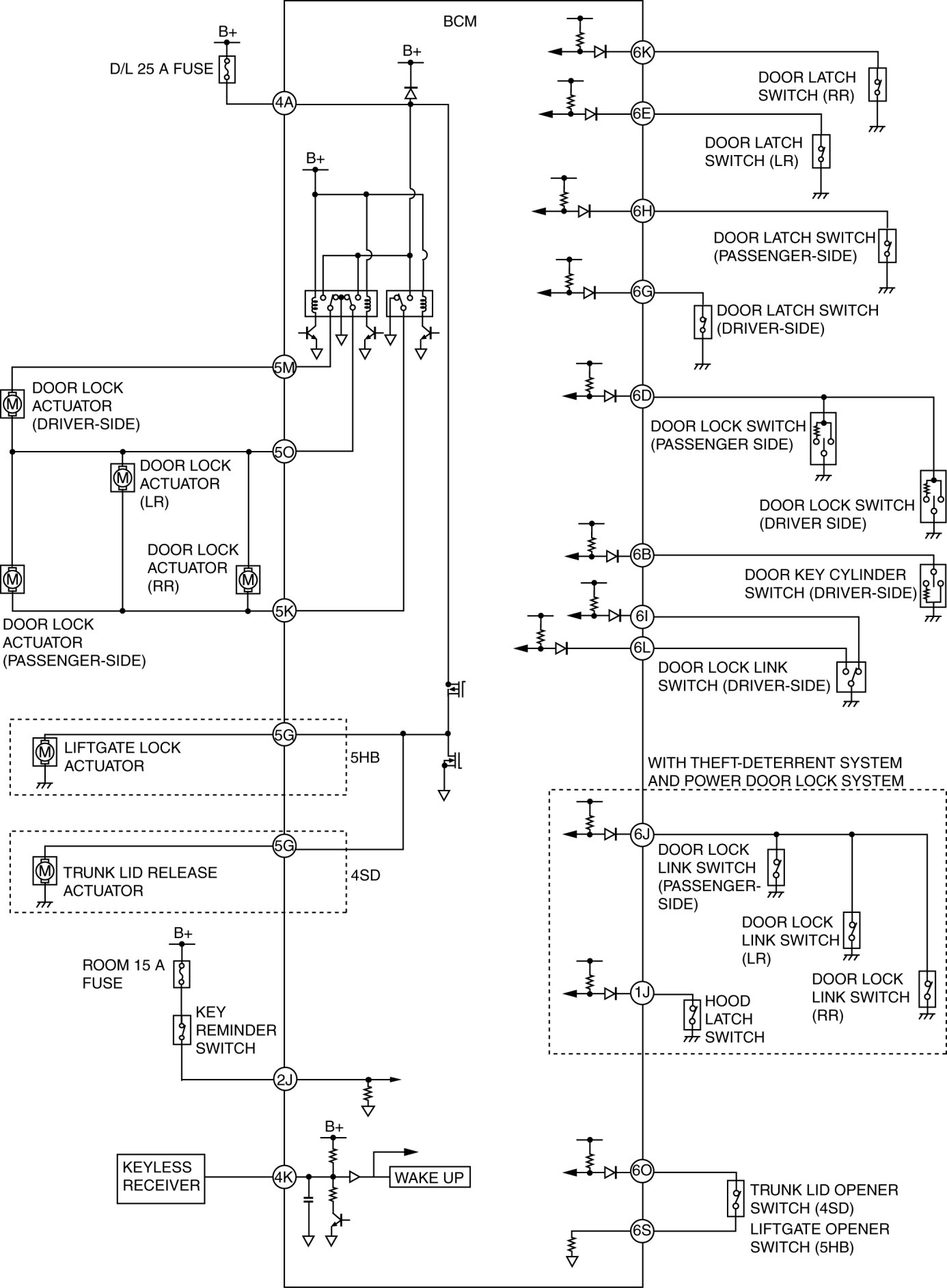

Home >> Mazda >> 2012 >> 3 L4-2.5L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Keyless Entry System >> System Wiring Diagram
