Control System Device And Control Relationship Chart

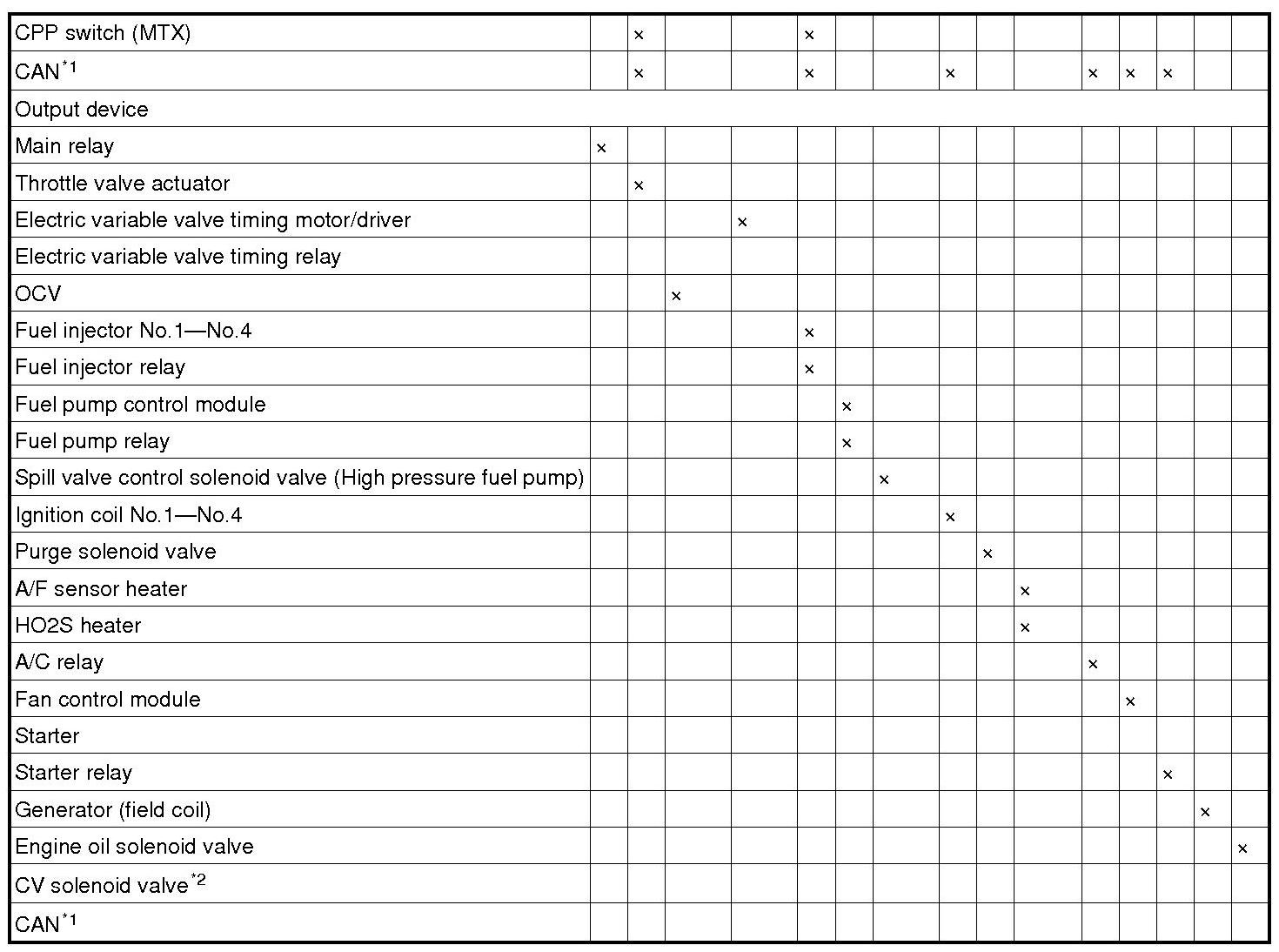

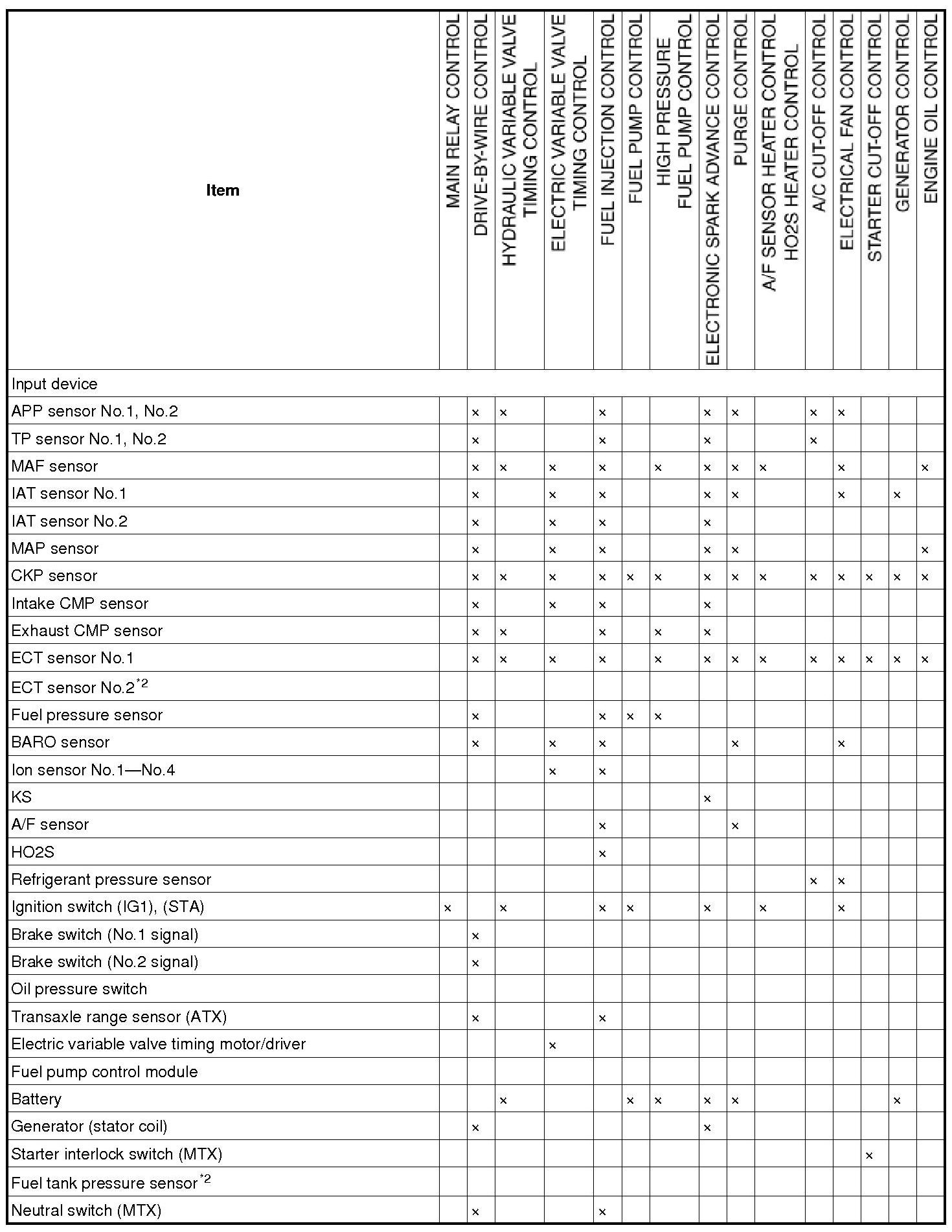

CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART [SKYACTIV-G 2.0]









*1
TCM (ATX), DSC HU/CM, instrument cluster, EHPAS control module
*2
Only used for OBD.
