Windshield Washer Switch: Testing and Inspection

WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Remove the wiper and washer switch. Service and Repair

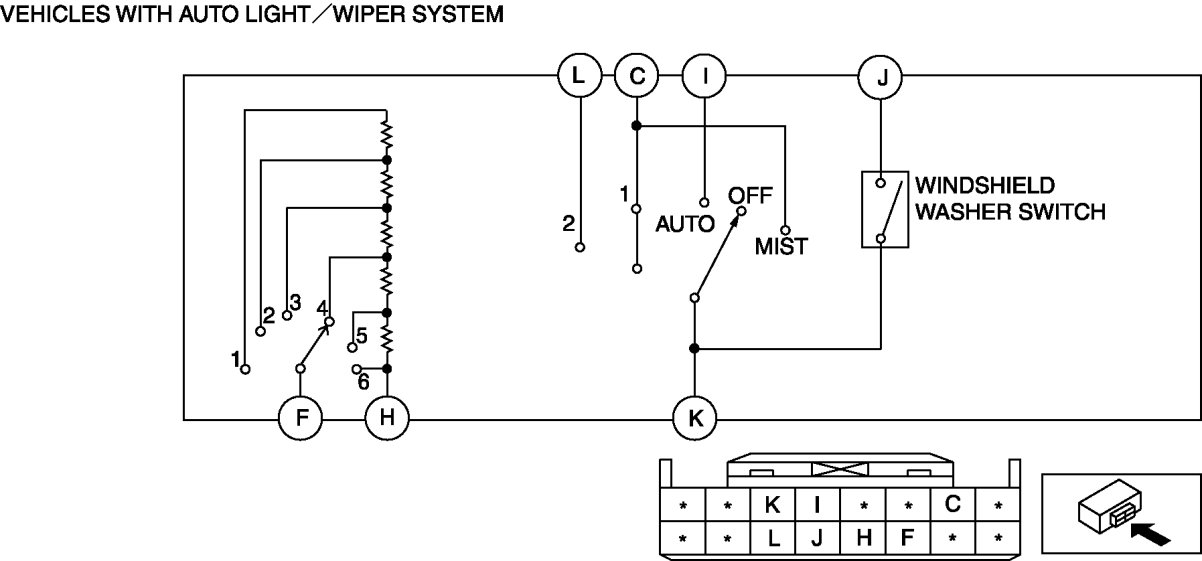

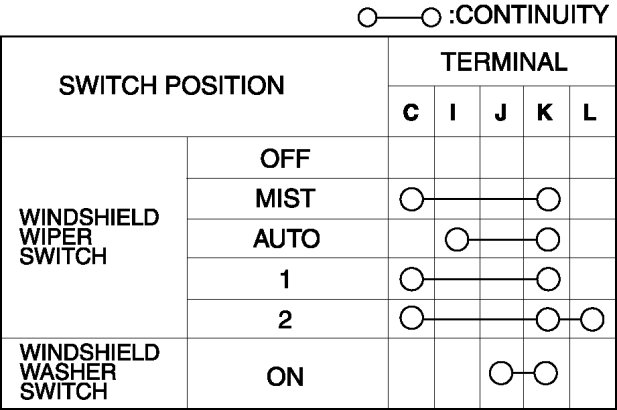

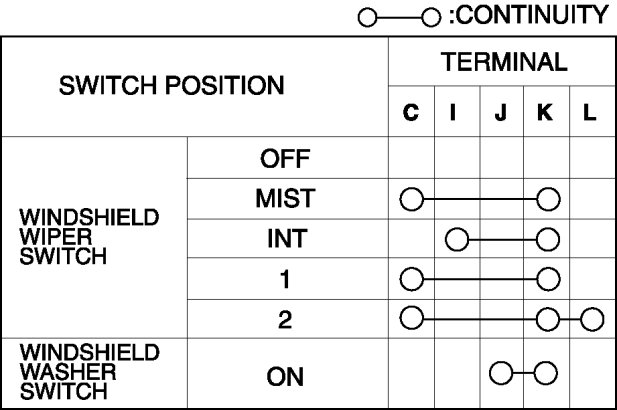

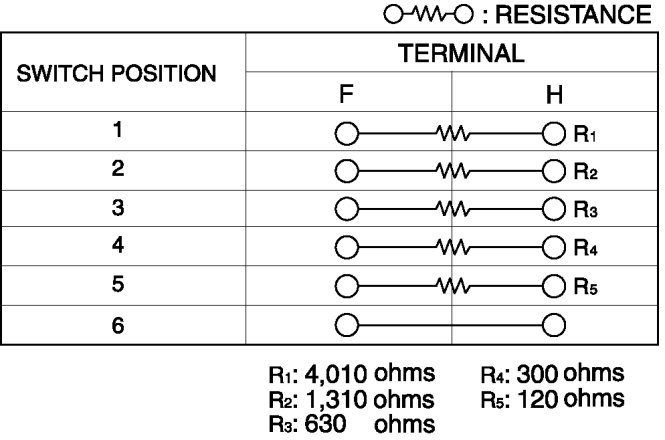

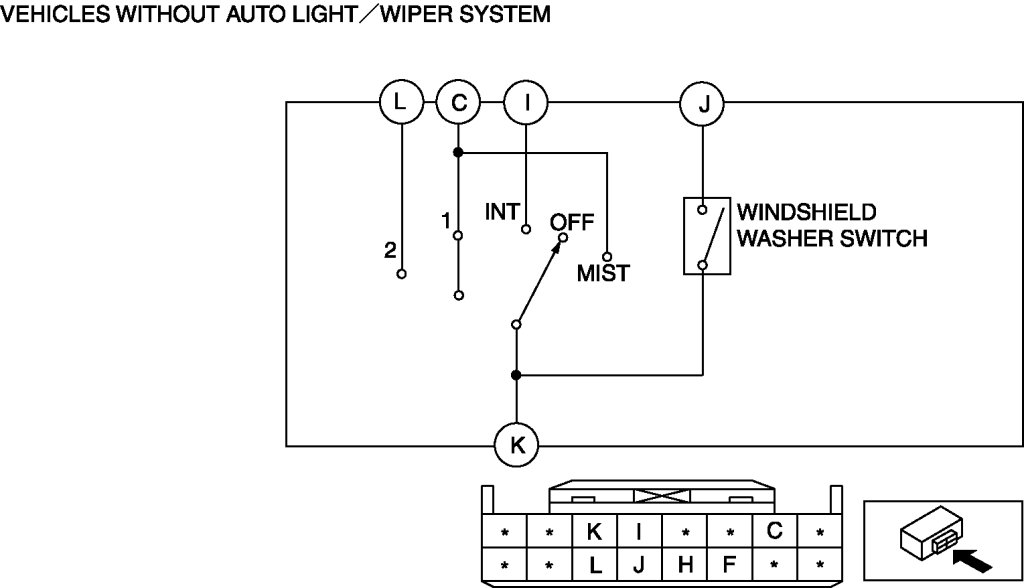

4. Verify that the resistance and continuity between the windshield wiper and washer switch terminals as indicated in the table.

- If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the windshield wiper and washer switch.
