License Plate Lamp: Service and Repair

LICENSE PLATE LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

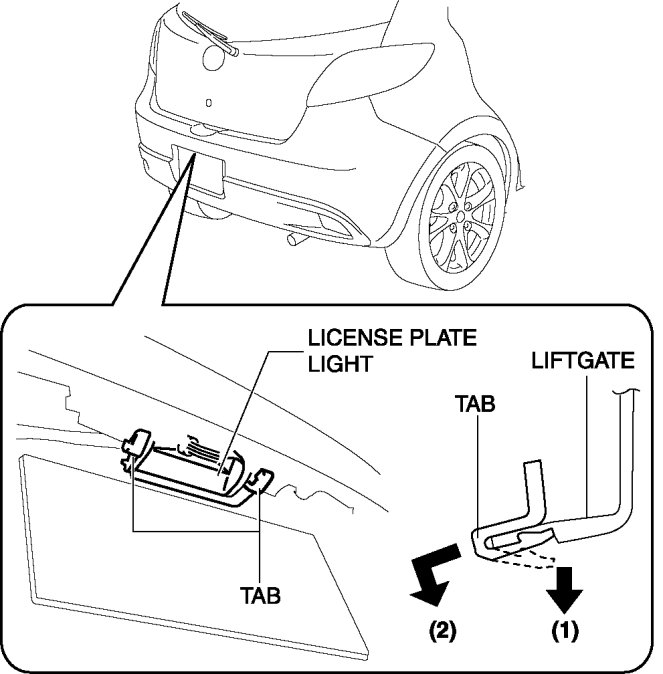

2. Pull the tabs shown in the figure in the direction of the arrow (1) and remove them in the direction of the arrow (2).

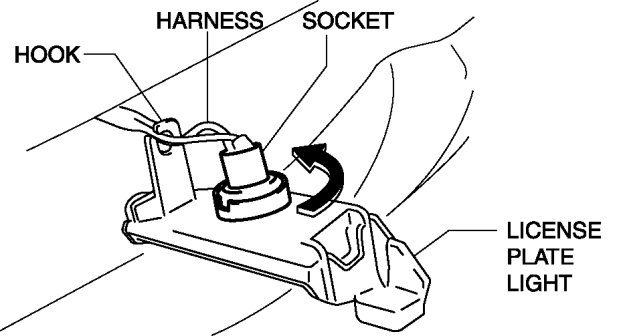

3. Pull out the wiring harness from the hook.






4. Rotate the socket in the direction of the arrow as shown in the figure to remove it.

5. Remove the license plate light.

6. Install in the reverse order of removal.
