No. 4 No Temperature Control With Climate Control Unit

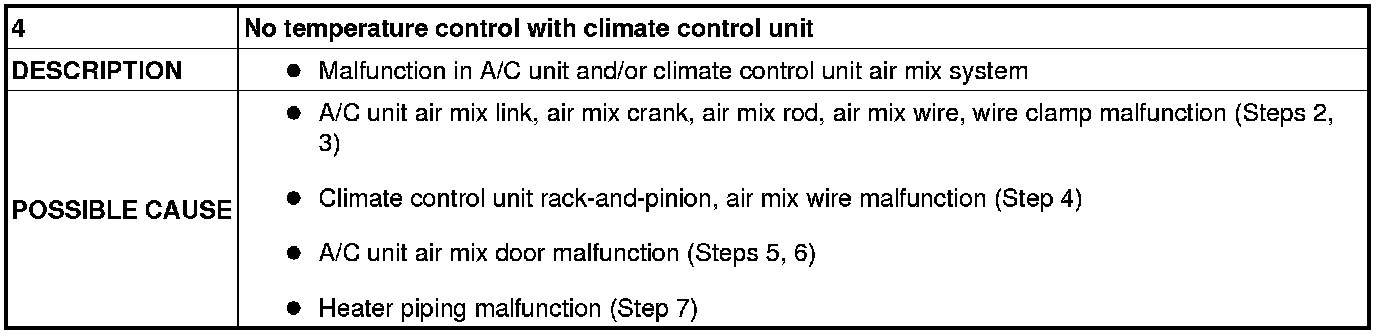

NO.4 NO TEMPERATURE CONTROL WITH CLIMATE CONTROL UNIT [MANUAL AIR CONDITIONER]

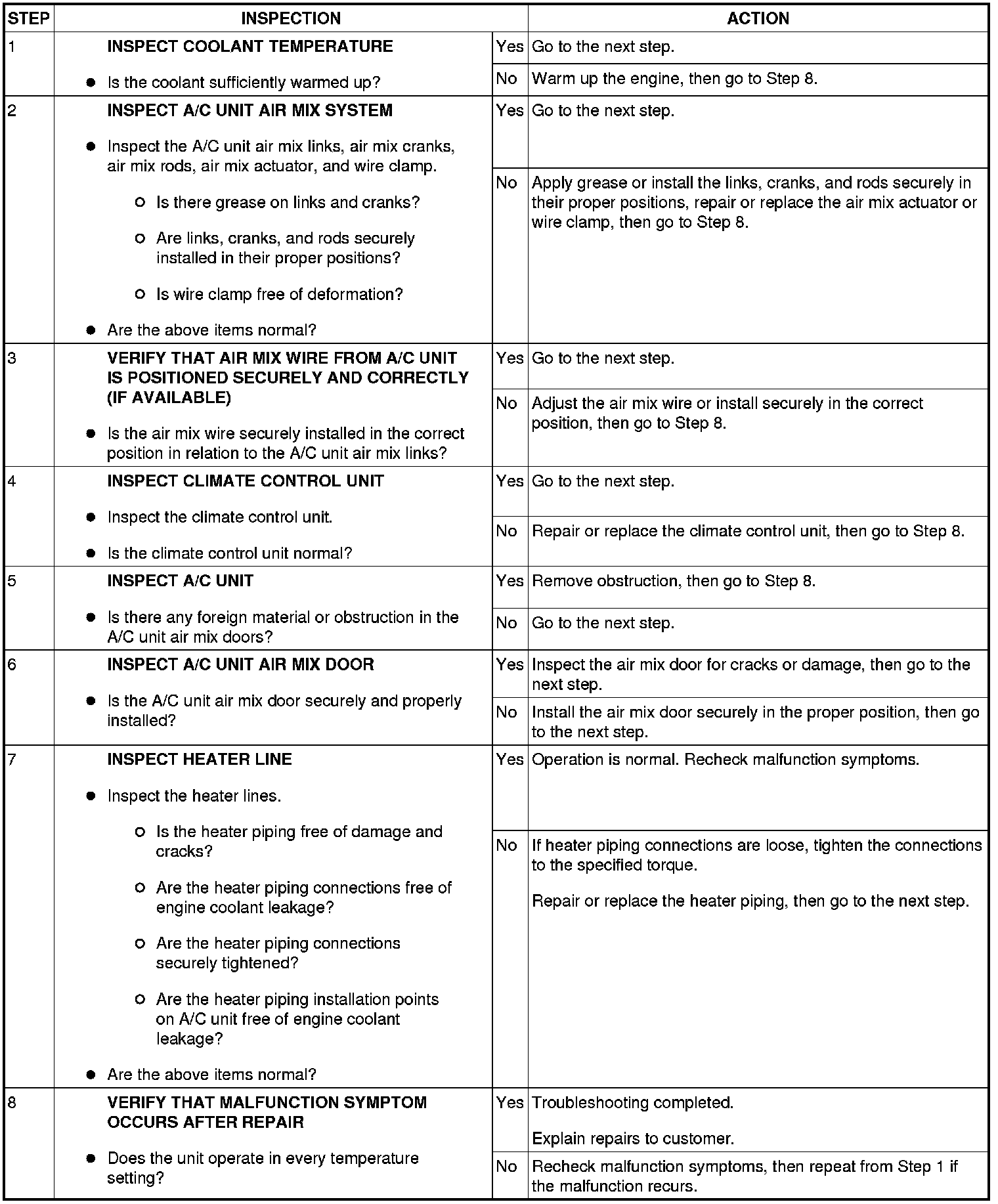

Diagnostic procedure
