Blower Motor Resistor: Service and Repair

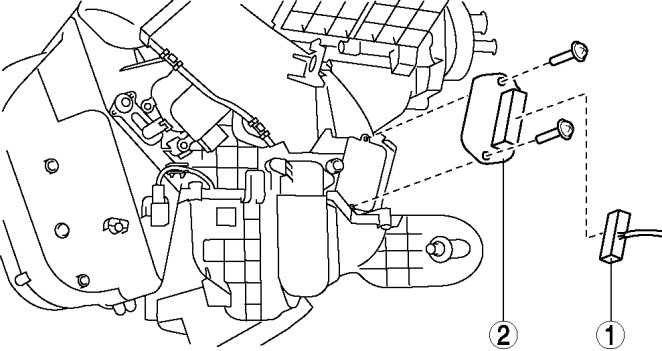

RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
