Power Mirror Switch: Testing and Inspection

POWER OUTER MIRROR SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the front door trim. Front Door Trim Removal/Installation

4. Remove the switch panel. Overhaul

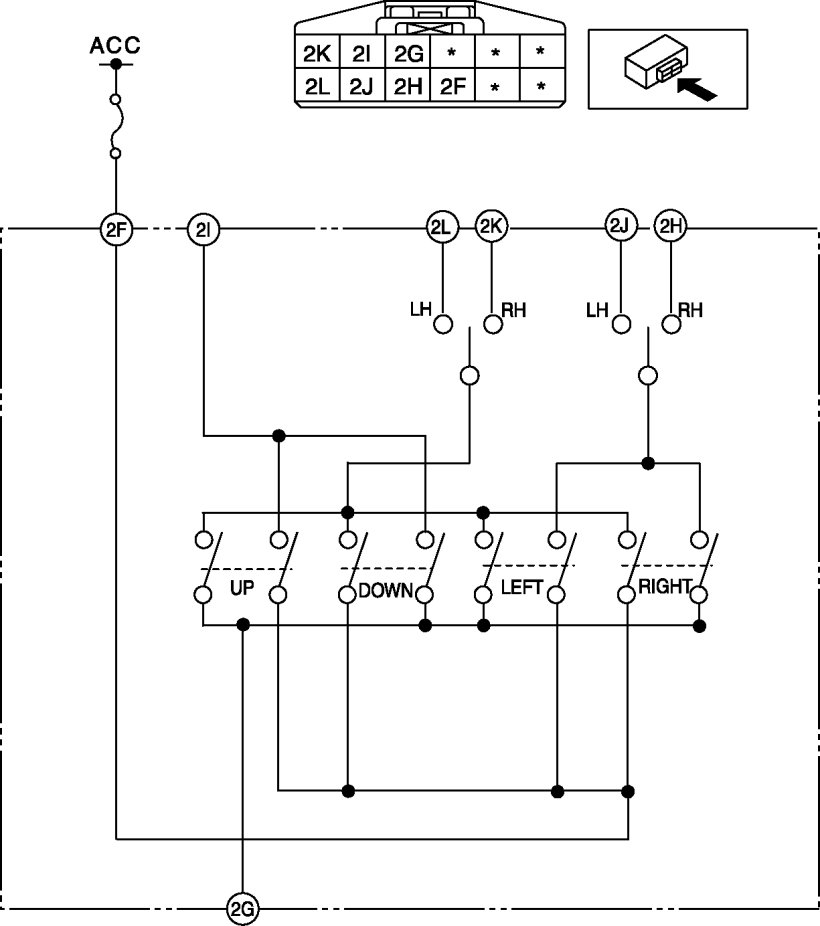

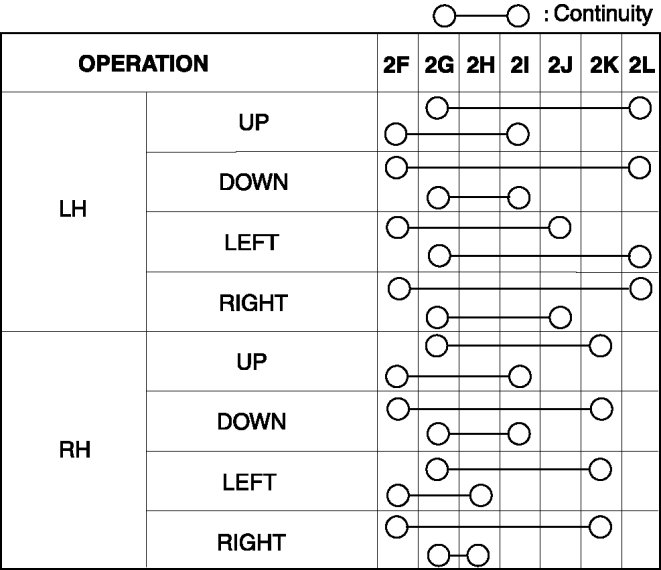

5. Using a tester, verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

- If not as indicated in the table, replace the power outer mirror switch.
