LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
2011
>>
Tribute 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

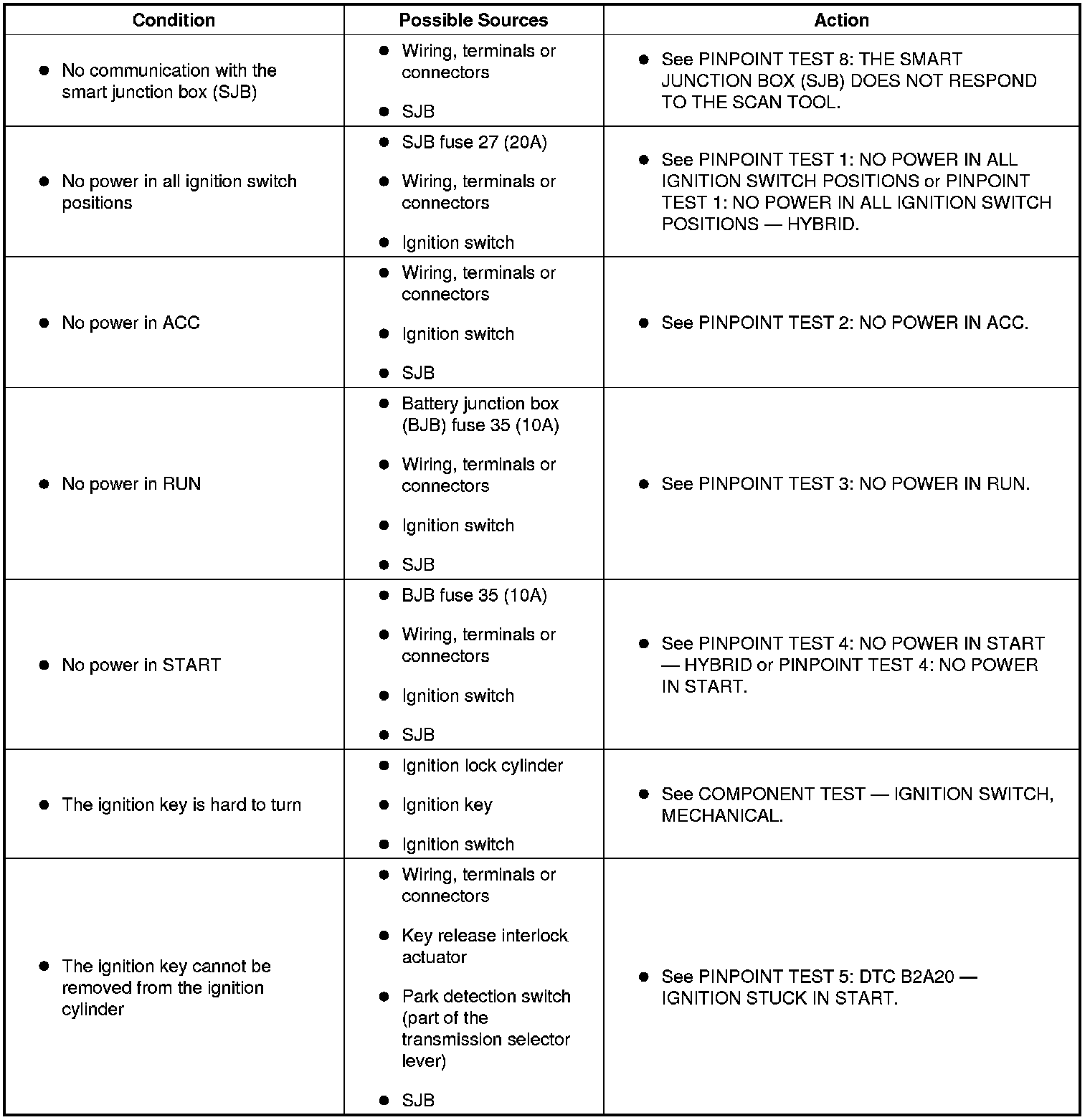

SYMPTOM TROUBLESHOOTING CHART - POWER SYSTEMS
