Variable Valve Timing Solenoid: Service and Repair

VARIABLE CAMSHAFT TIMING (VCT) OIL CONTROL SOLENOID - 2.5L REMOVAL/INSTALLATION









1. Remove the valve cover. See - Service and Repair or - Service and Repair.

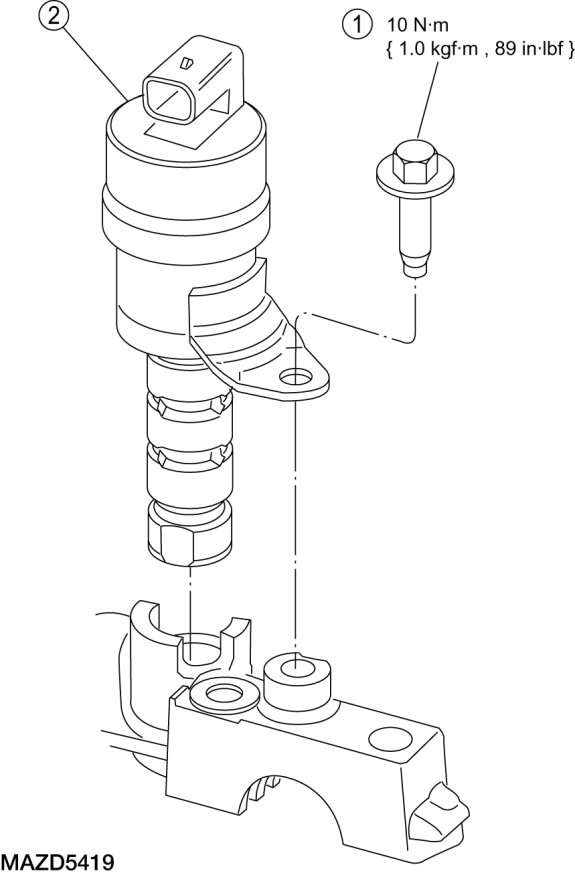

2. Remove the bolt and the Variable Camshaft Timing (VCT) oil control solenoid.

- To install, tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}.

3. To install, reverse the removal procedure.
