Connector End Views - Speed Control
Connector End Views - Speed Control

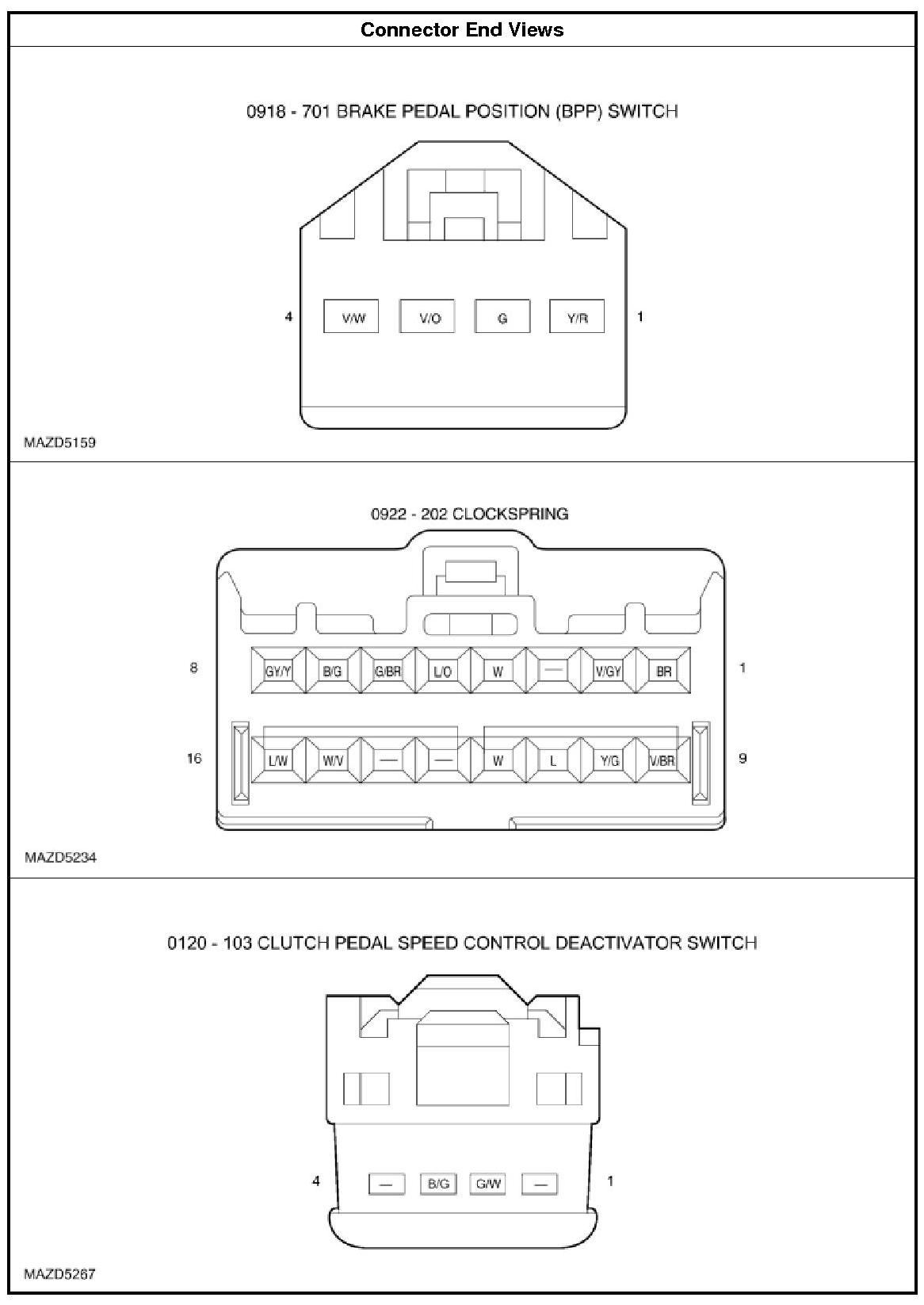

CONNECTOR END VIEWS - SPEED CONTROL
