Neutral Safety Switch: Service and Repair

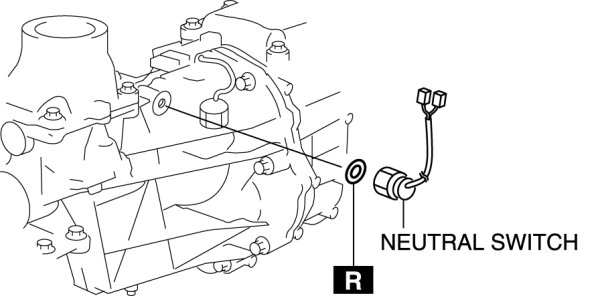

NEUTRAL SWITCH REMOVAL/INSTALLATION [P66M-D]

1. Remove the transmission. Transmission Removal/Installation

2. Remove the neutral switch with the packing.






3. Install the neutral switch and a new packing to the transmission case.

Tightening torque
- 23.6-35.3 Nm {2.5-3.5 kgf-m, 18-26 ft-lbf}

4. Install the transmission. Transmission Removal/Installation
