Home >> Mazda >> 2011 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Powertrain Management >> Description and Operation

Powertrain Management: Description and Operation

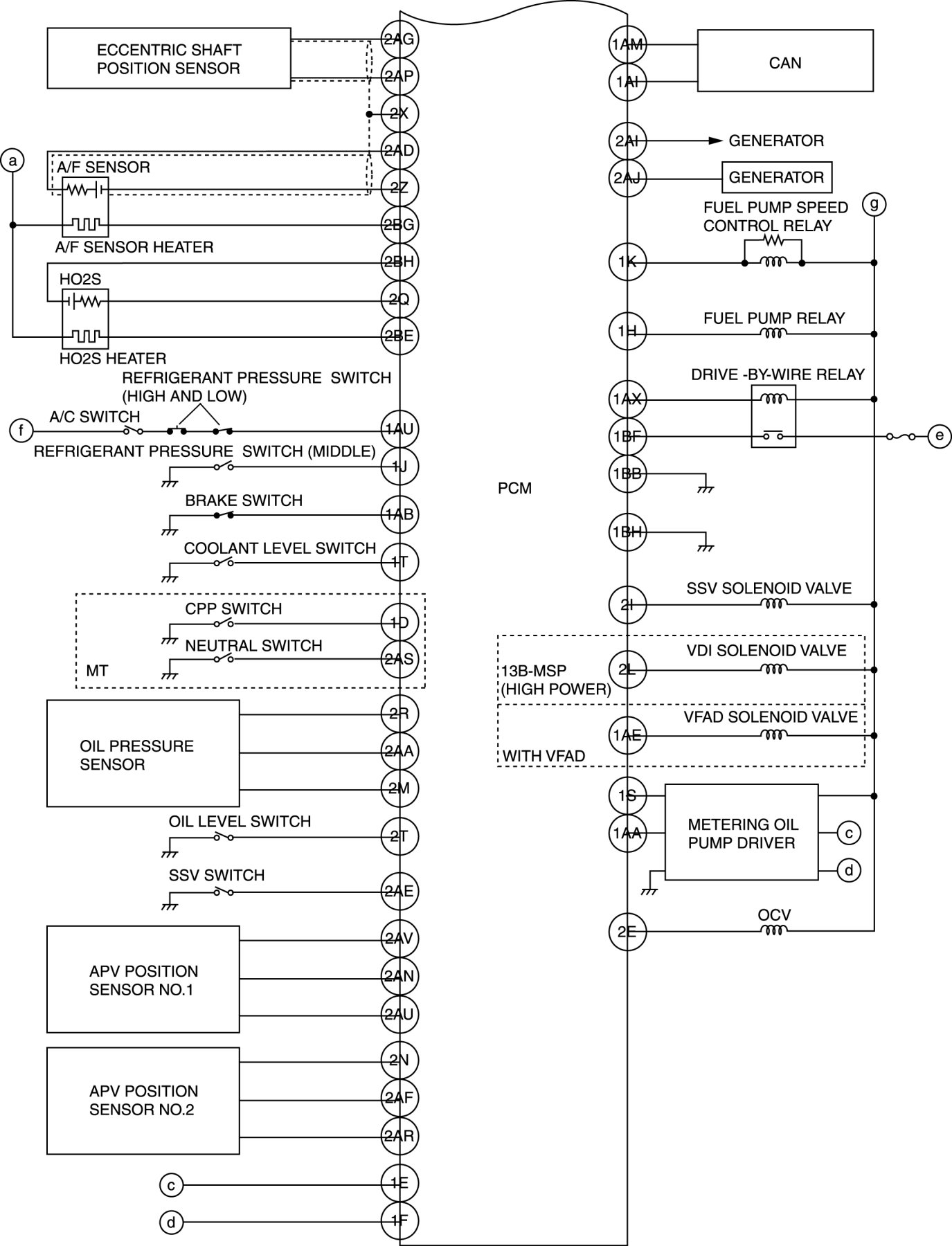

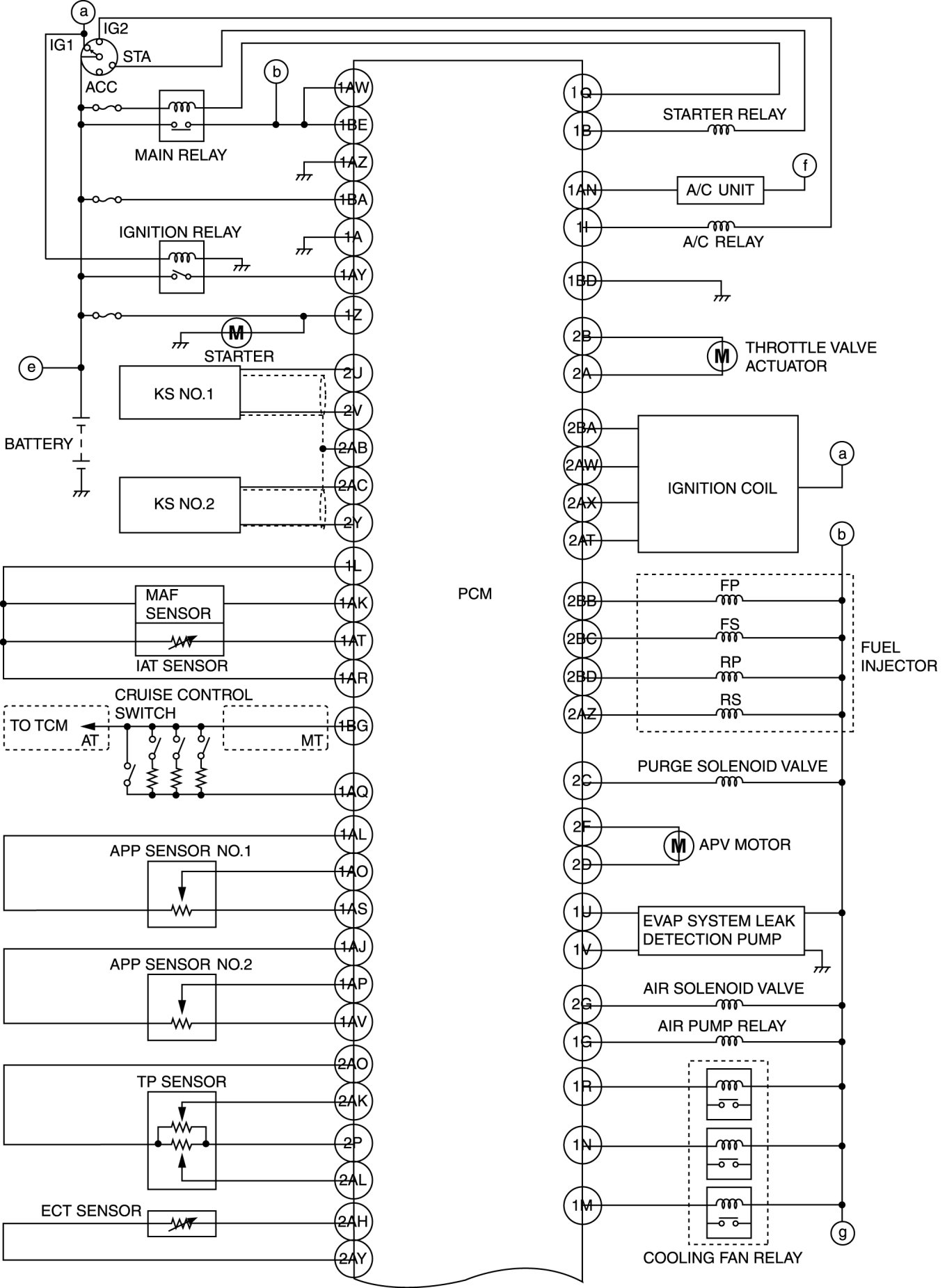

CONTROL SYSTEM WIRING DIAGRAM [13B-MSP]
