Splash Shield Removal/Installation

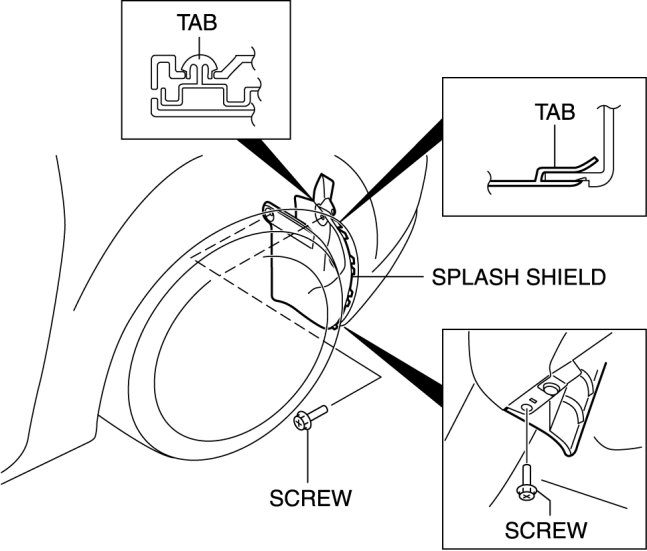

SPLASH SHIELD REMOVAL/INSTALLATION

1. Remove the screws.

2. Pull out the splash shield to uninstall it.






3. Install in the reverse order of removal.
