Front Fender: Service and Repair

FRONT FENDER PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front side turn light. Service and Repair

3. Remove the front bumper. Removal and Replacement

4. Remove the front combination lights. Service and Repair

5. Remove the side step molding.

6. Set the front mudguard out of way. Service and Repair

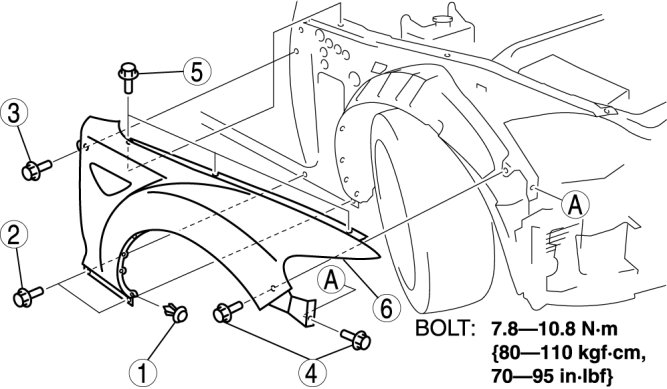

7. Remove in the order indicated in the table.










8. Install in the reverse order of removal.
