Access Cover: Service and Repair




ENGINE COVER REMOVAL/INSTALLATION [13B-MSP]

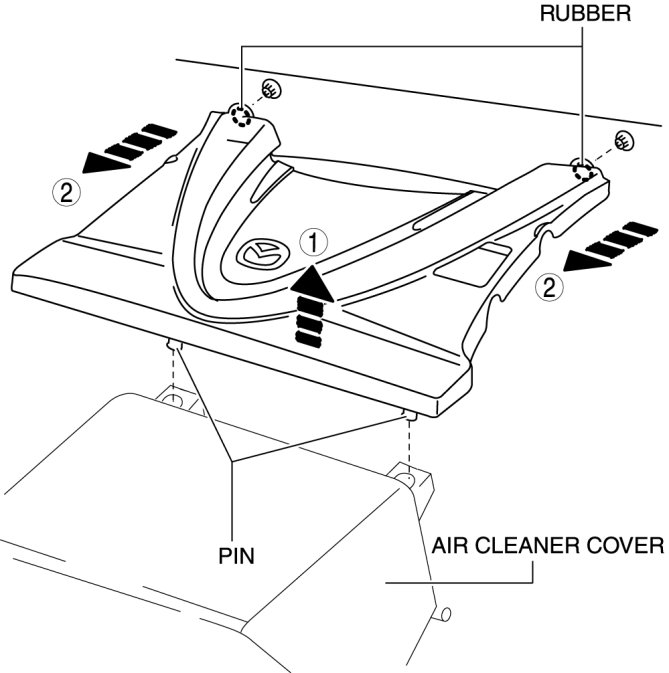

1. Remove in the order shown in the figure.






2. Install in the reverse order of removal.
