Home >> Mazda >> 2011 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Description and Operation

Powertrain Management: Description and Operation

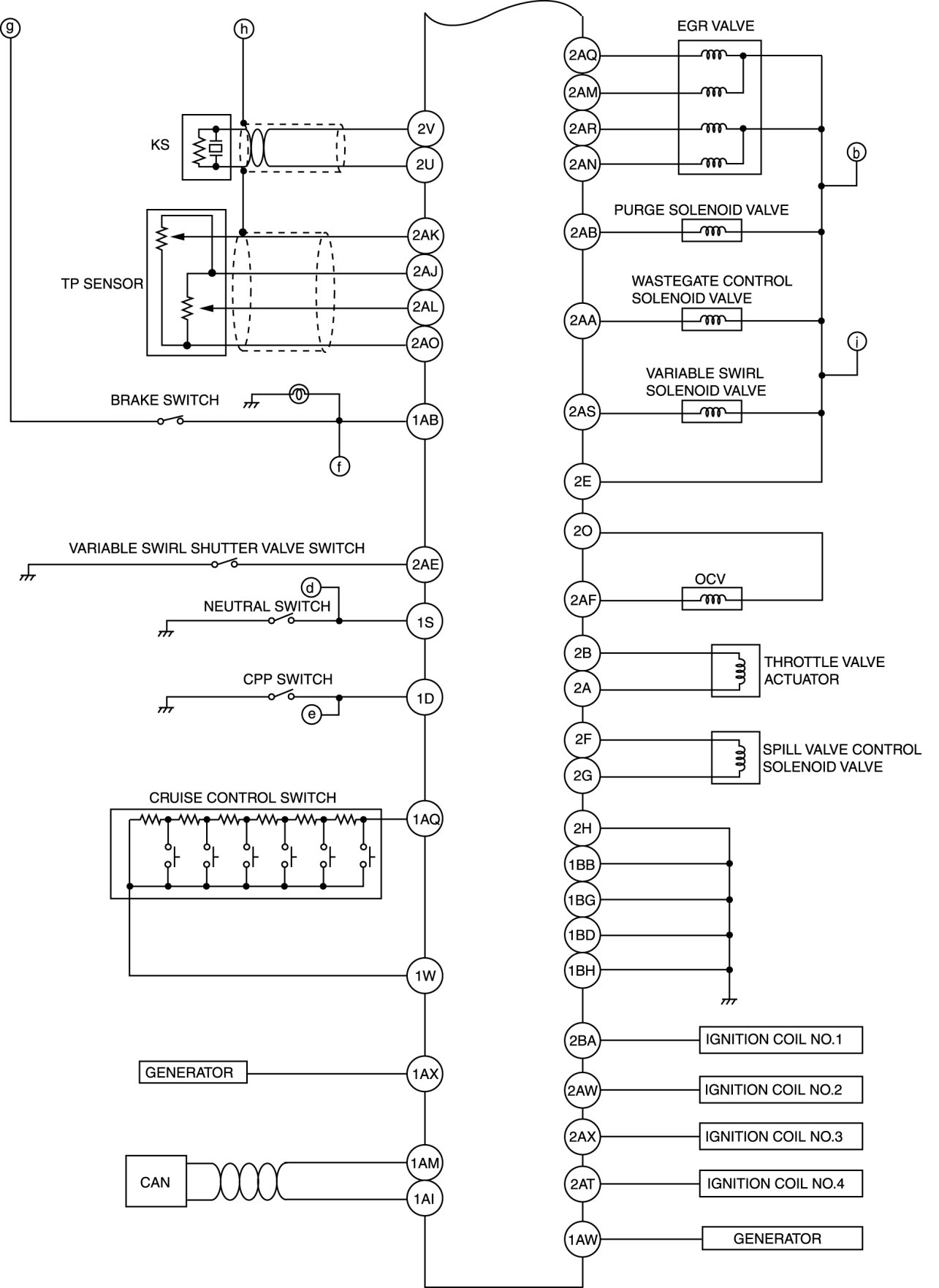

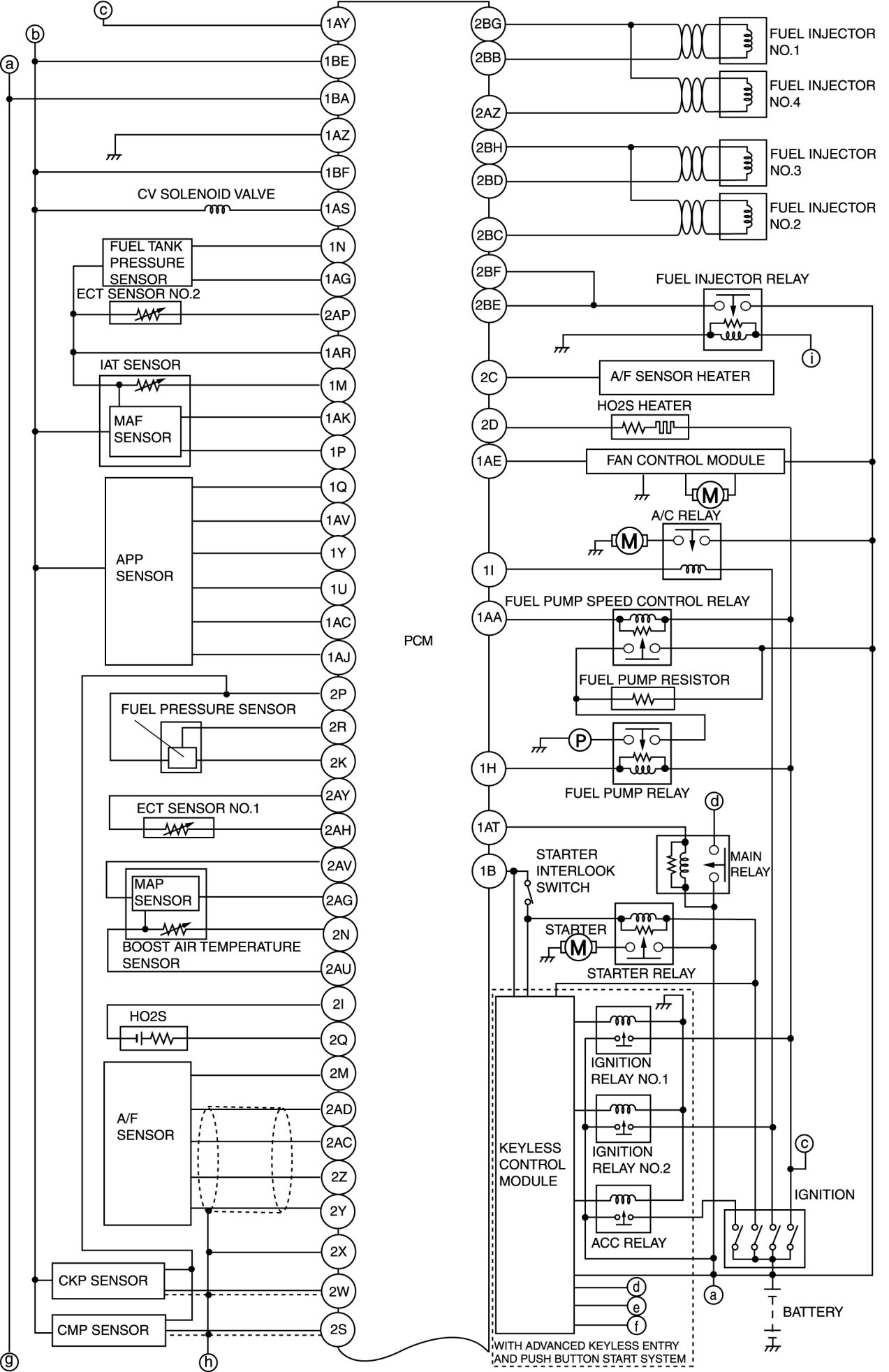

CONTROL SYSTEM WIRING DIAGRAM [L3 WITH TC]
