Advanced Keyless And Start System

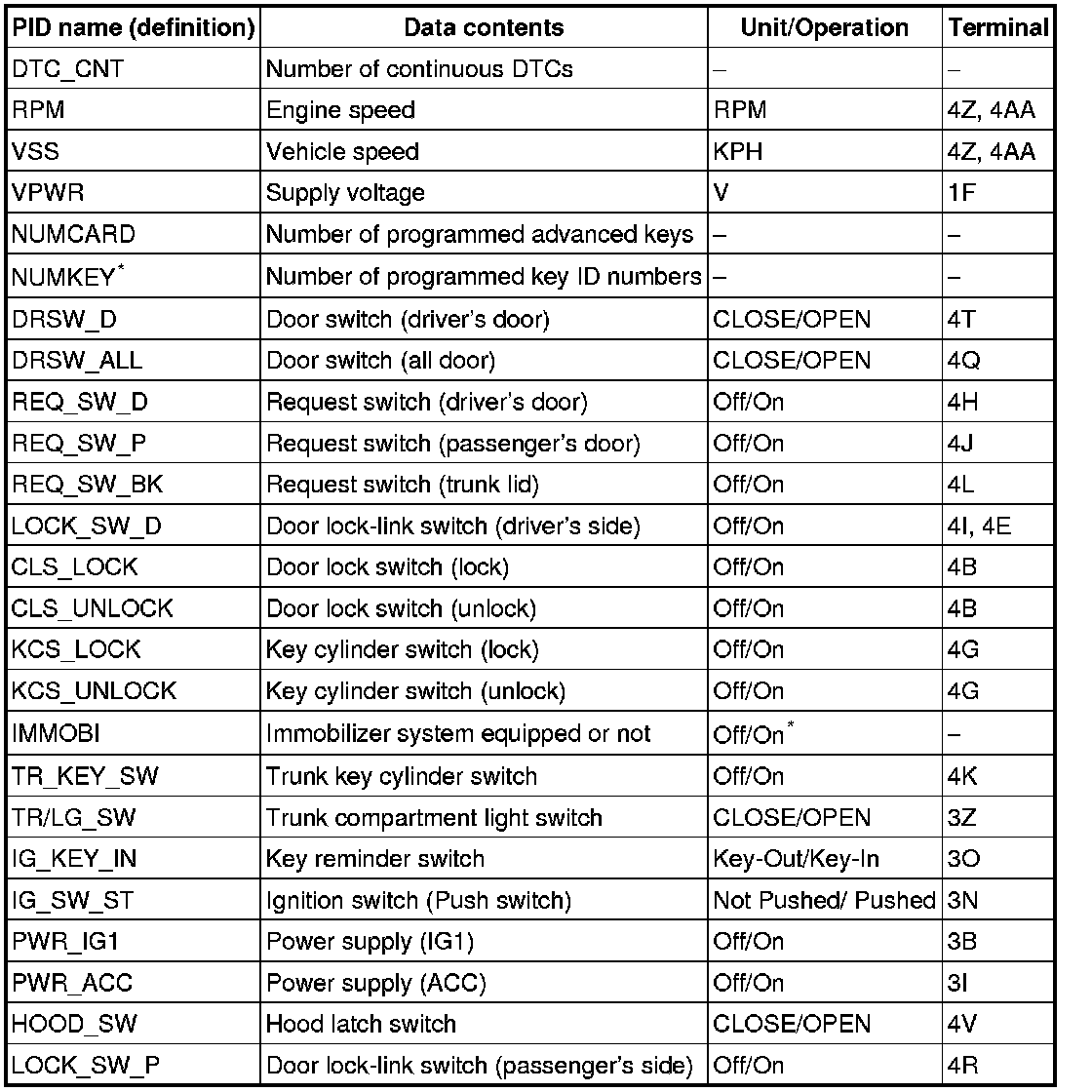

PID/DATA MONITOR TABLE [ADVANCED KEYLESS AND START SYSTEM]

PID/data monitor table





*
Vehicles with immobilizer system

Active command mode table
