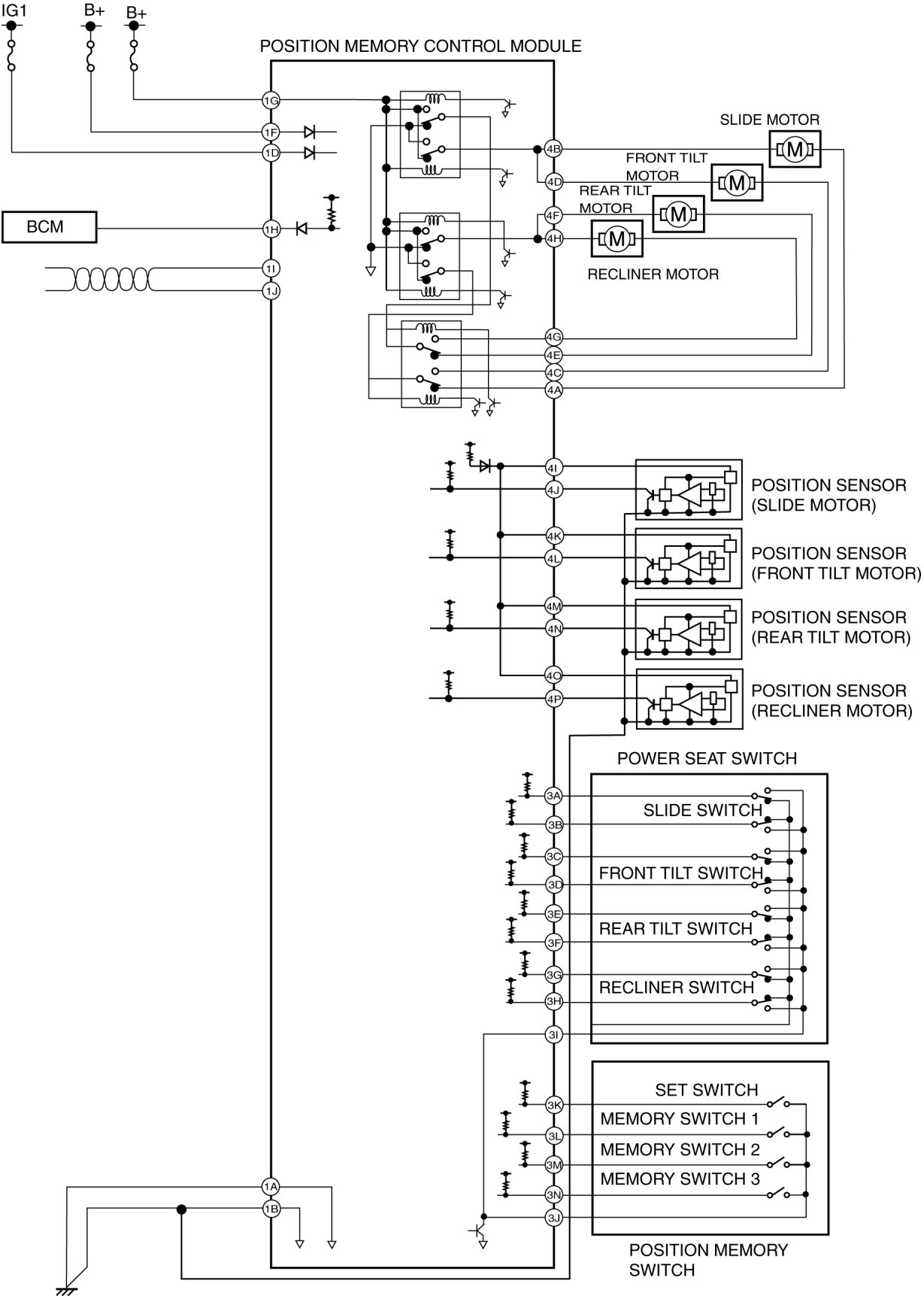

System Wiring Diagram - Position Memory Control System
System Wiring Diagram - Position Memory Control System
SYSTEM WIRING DIAGRAM [POSITION MEMORY CONTROL SYSTEM]
