Fan Control Module And Fan Control Module Relay Connector End View
Fan Control Module And Fan Control Module Relay Connector End View

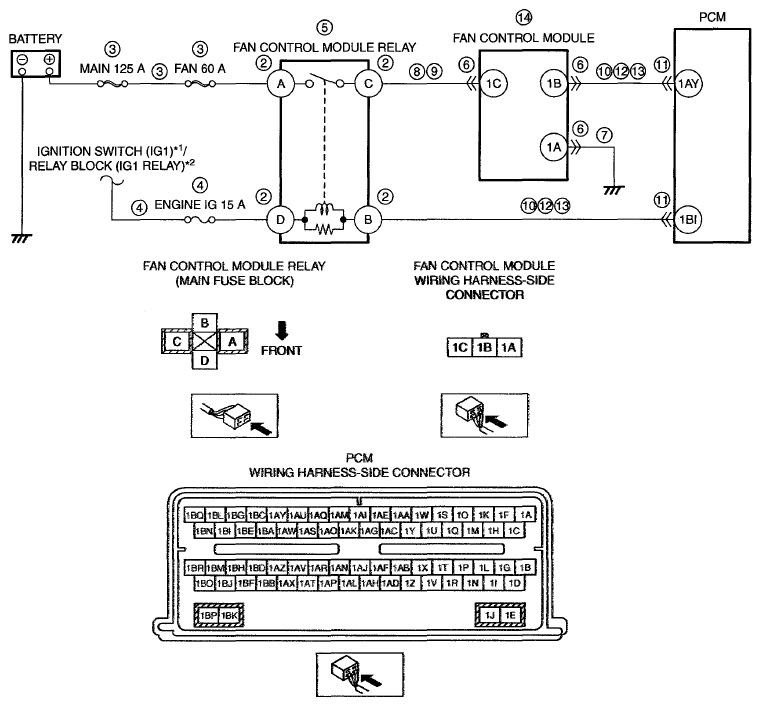

Fig 1: Fan Control Module And Fan Control Module Relay Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
