System Wiring Diagram - Keyless Entry System

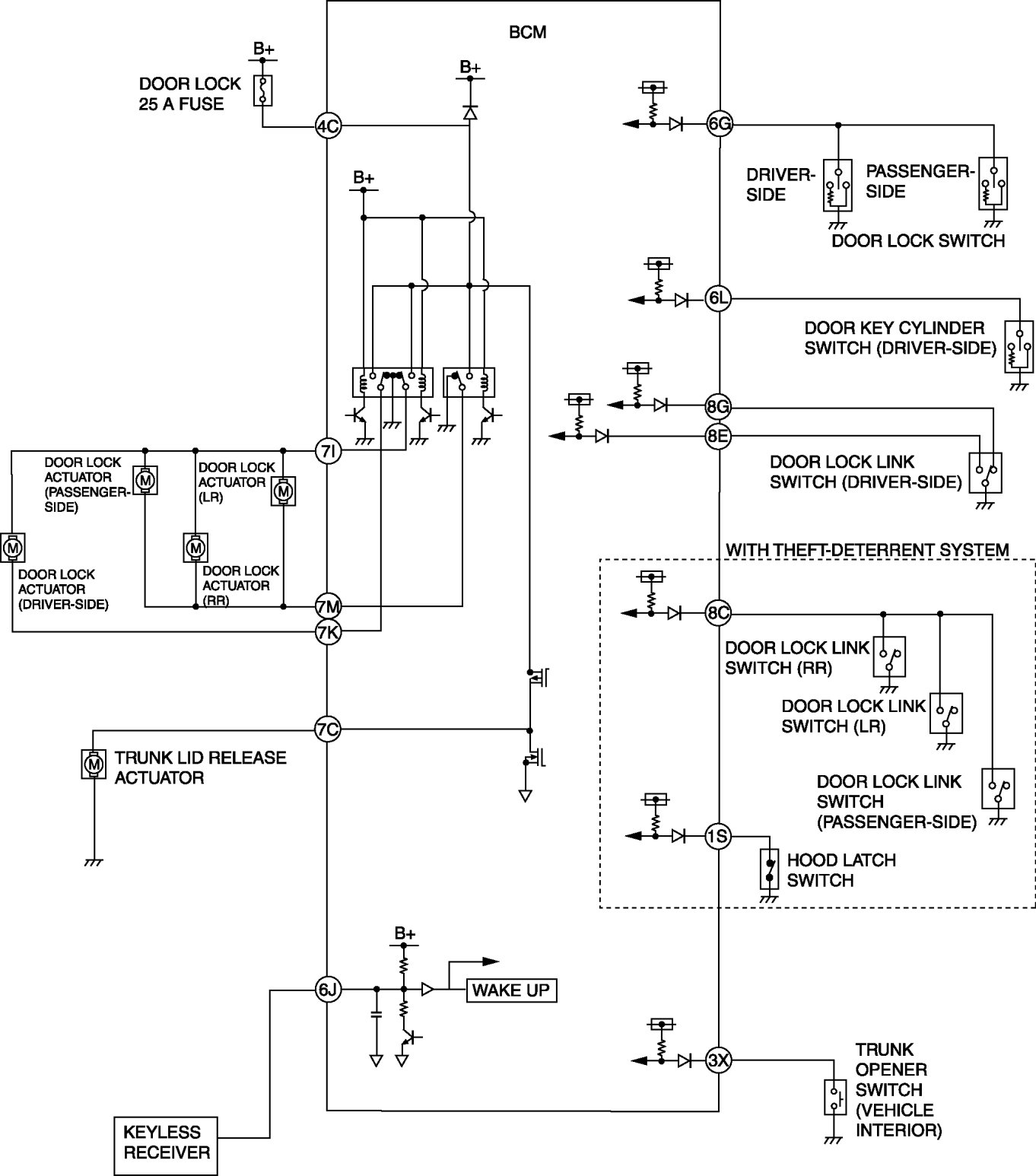

KEYLESS ENTRY SYSTEM WIRING DIAGRAM [KEYLESS ENTRY SYSTEM]
