Home >> Mazda >> 2011 >> 3 L4-2.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Service and Repair >> Overhaul >> Timing Chain Assembly >> Assembly

Assembly

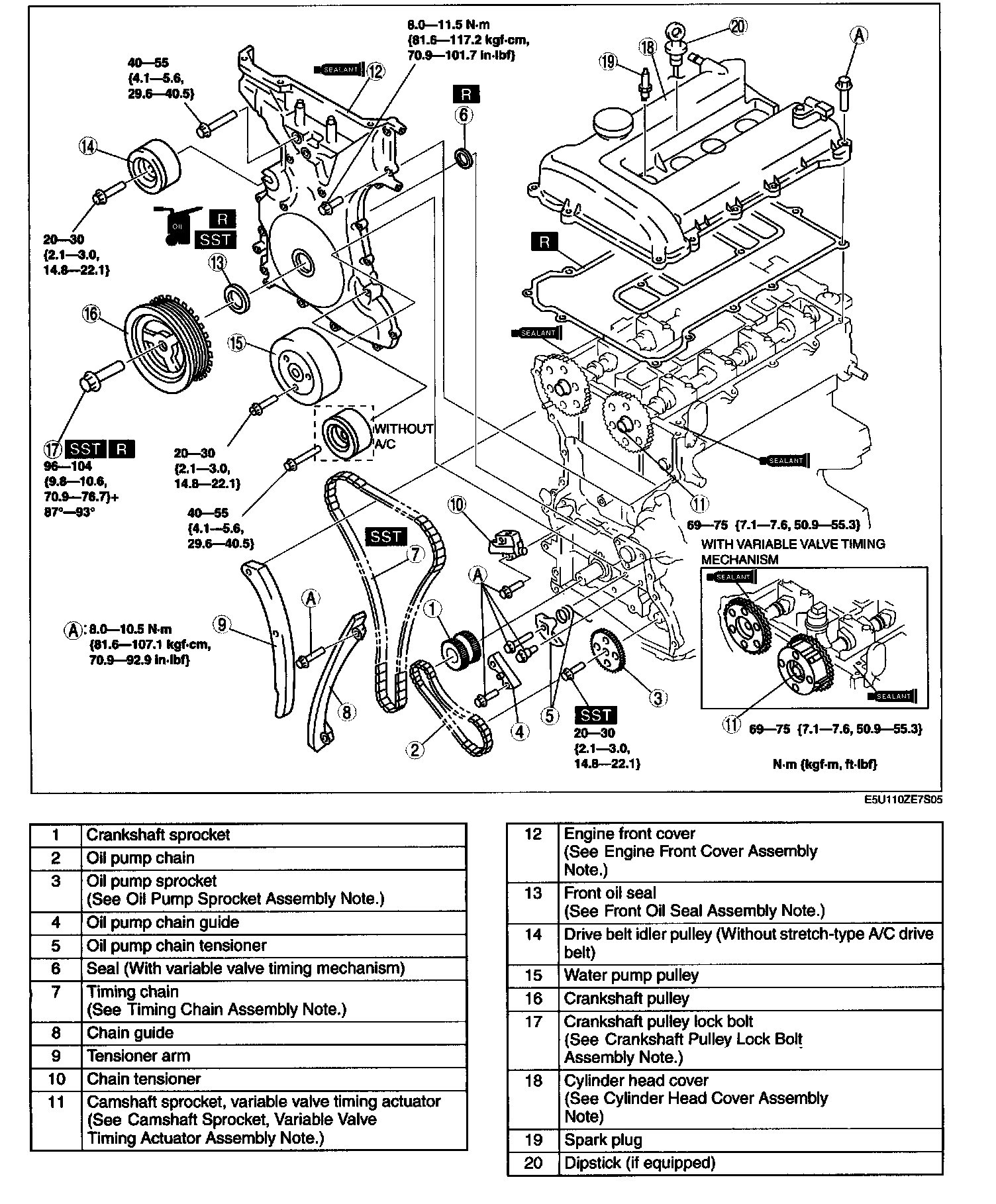

TIMING CHAIN ASSEMBLY
1. Assemble in the order indicated in the table.
