Home >> Mazda >> 2010 >> Tribute 4WD L4-2.5L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> General Specifications

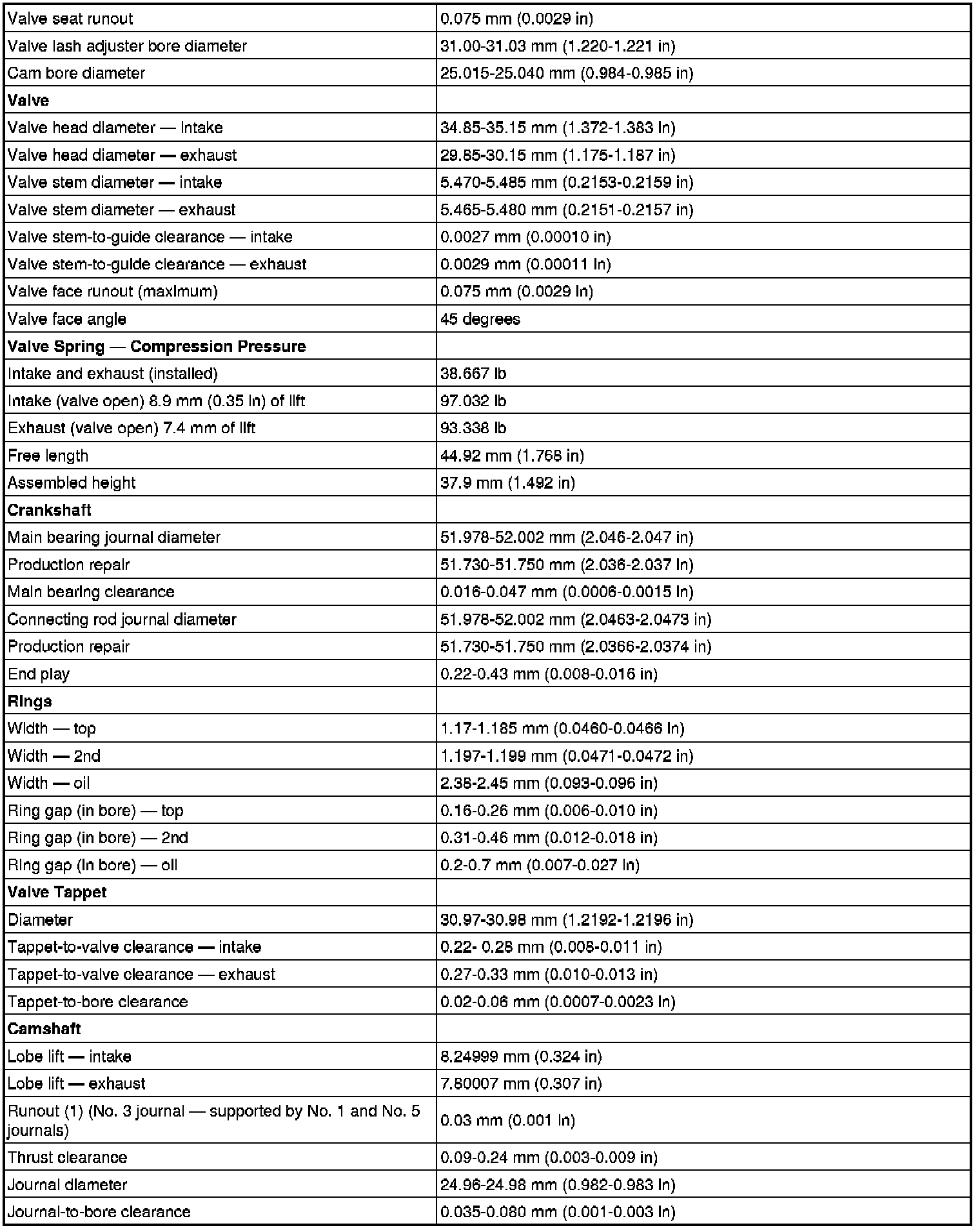

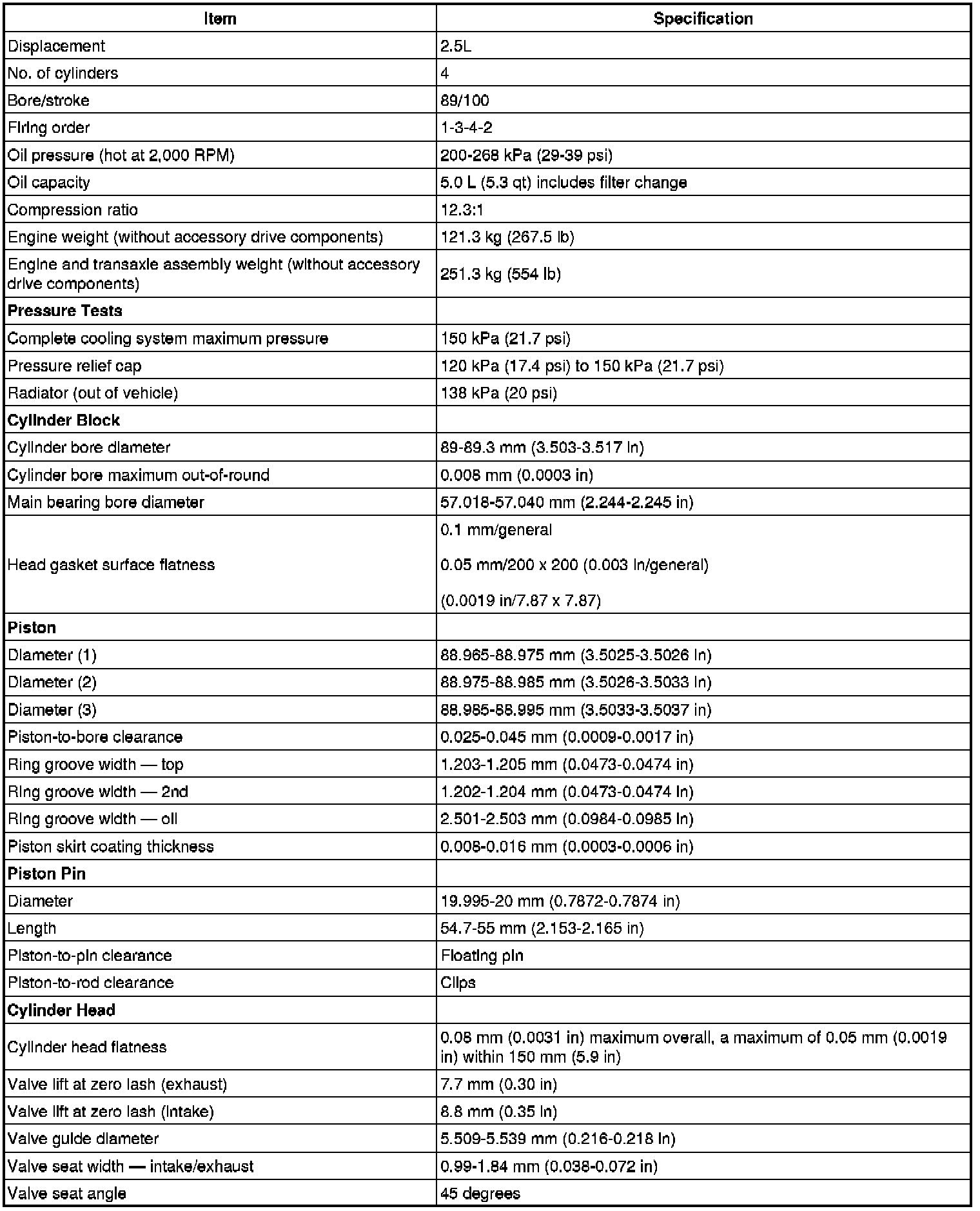

General Specifications



-
SPECIFICATIONS - HYBRID

General Specifications





Traction Battery Specifications





High-Voltage Converter/Inverter





Hybrid Engine
