Home >> Mazda >> 2010 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Locations >> Connector Locations >> C-07 (Front-Rear)

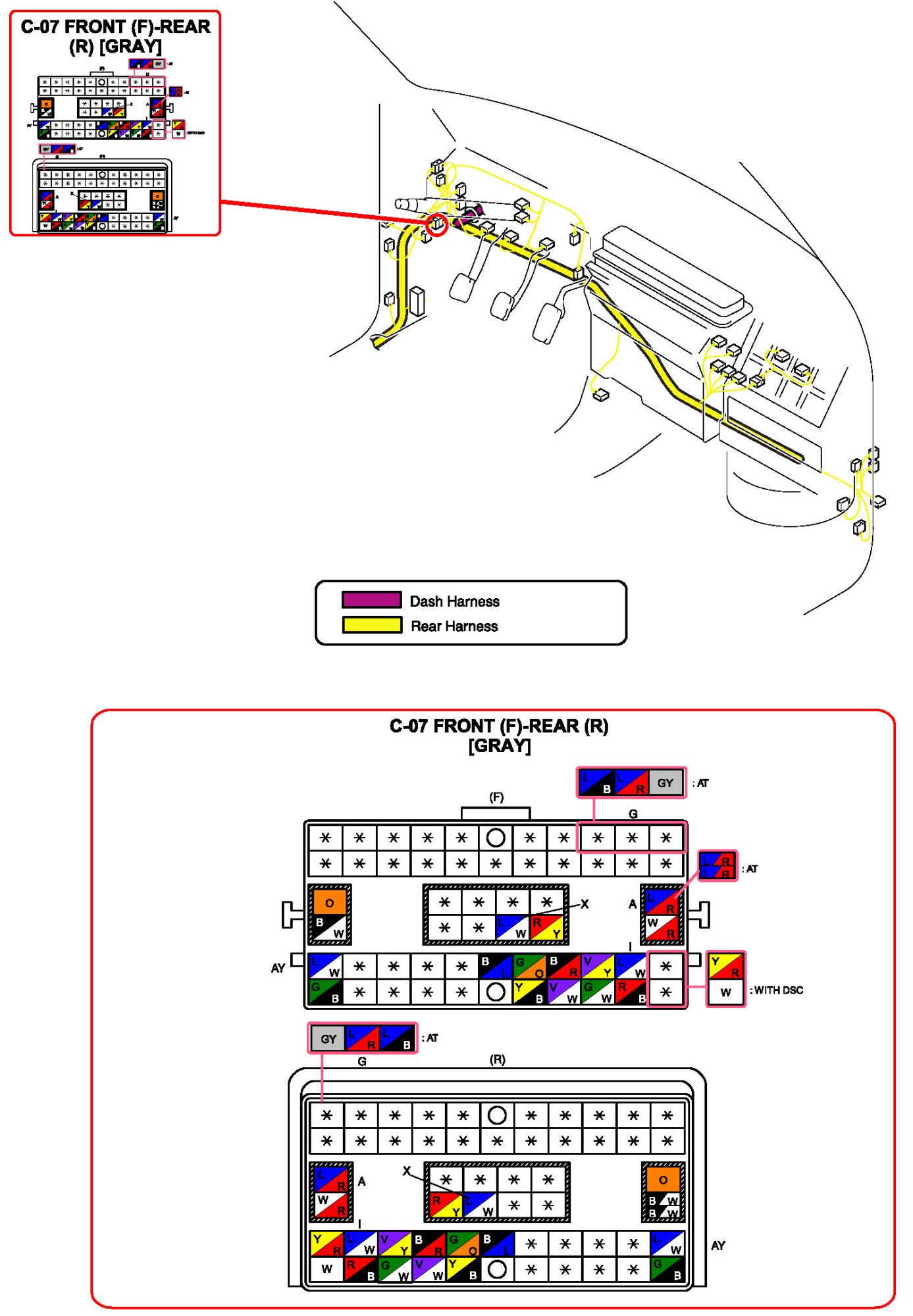

C-07 (Front-Rear)

C-07 (Front-Rear):
