Control System Device and Control Relationship Chart
Control System Device and Control Relationship Chart

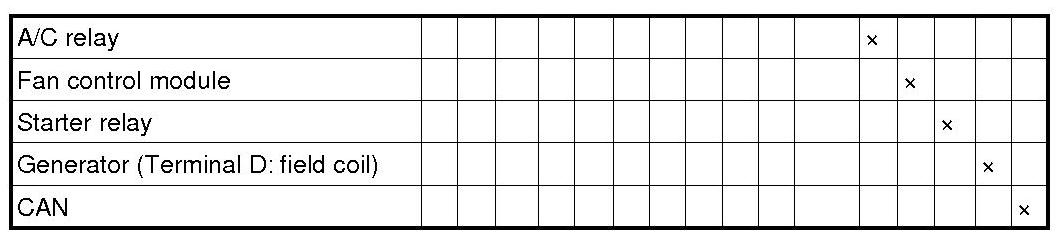

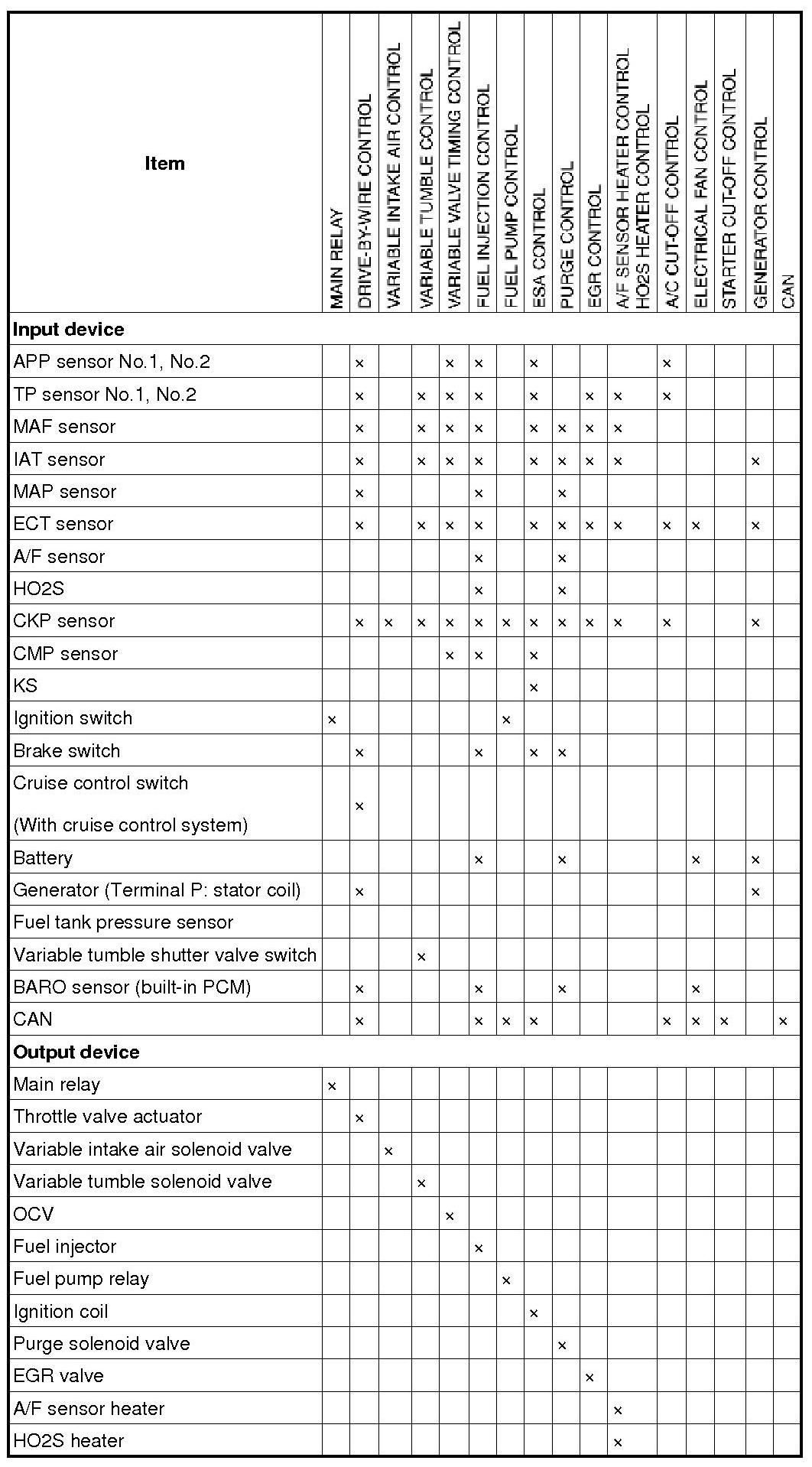

CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART [L5]
x: Applicable
