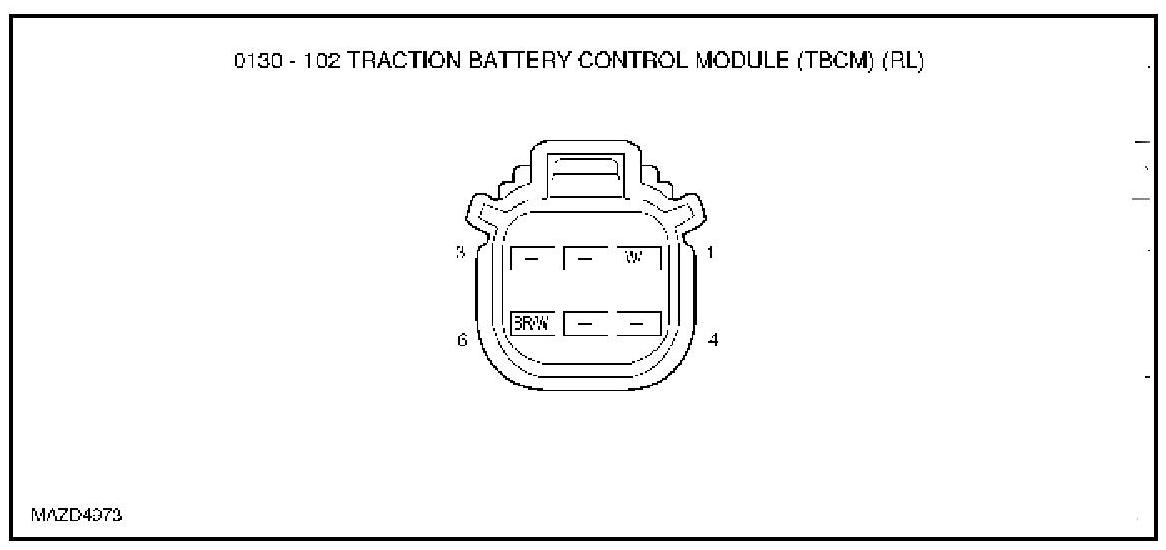

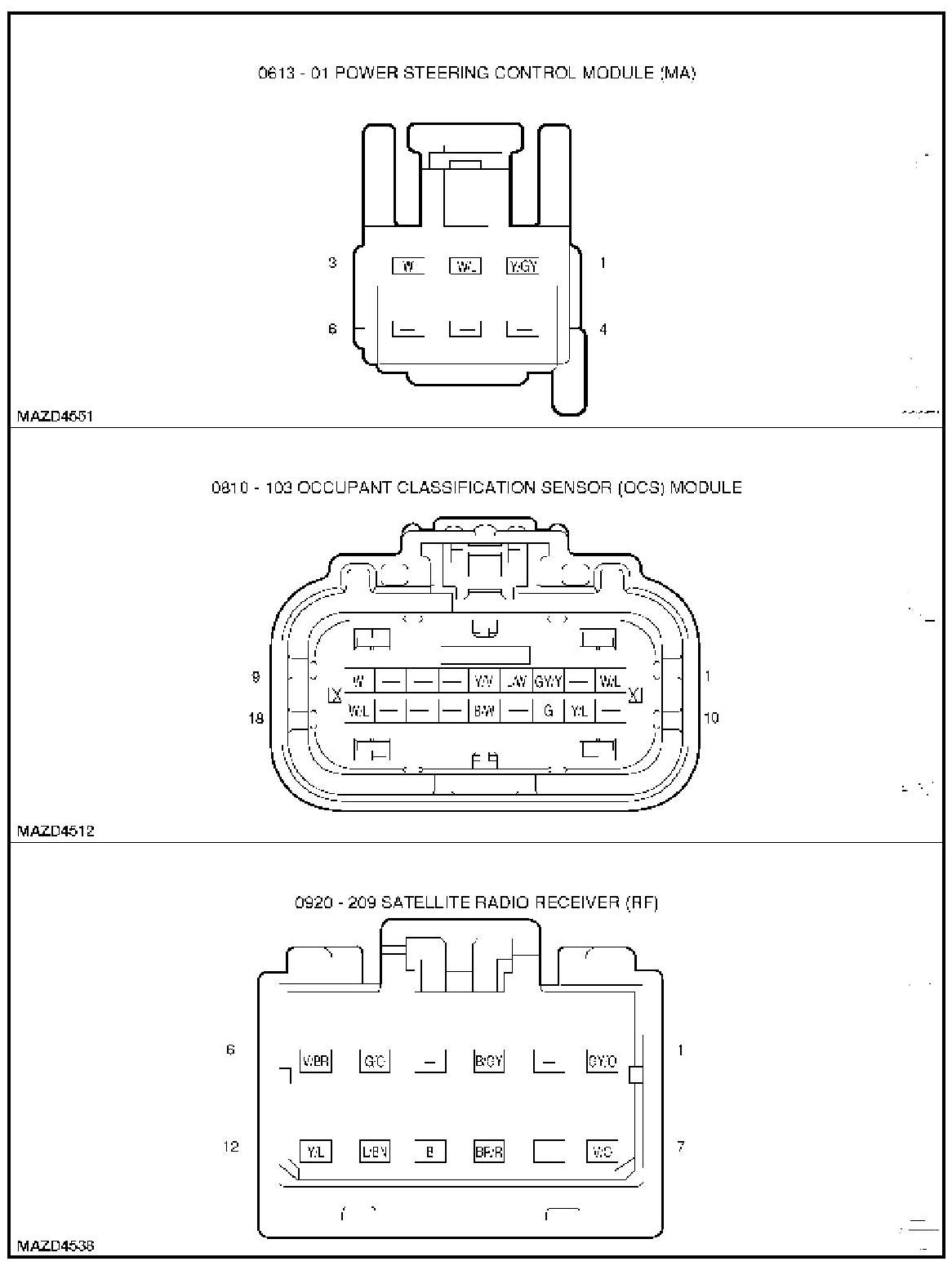

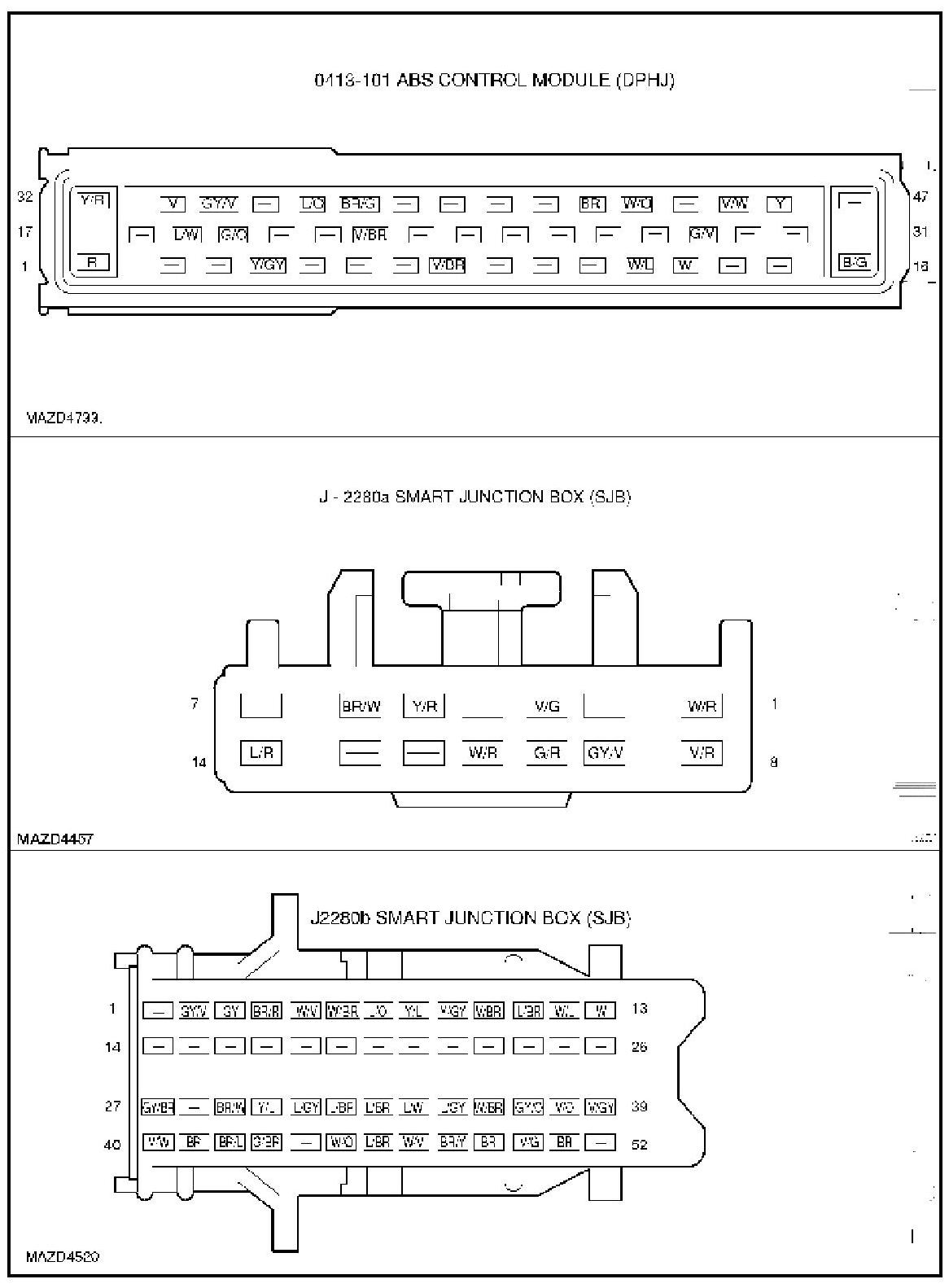

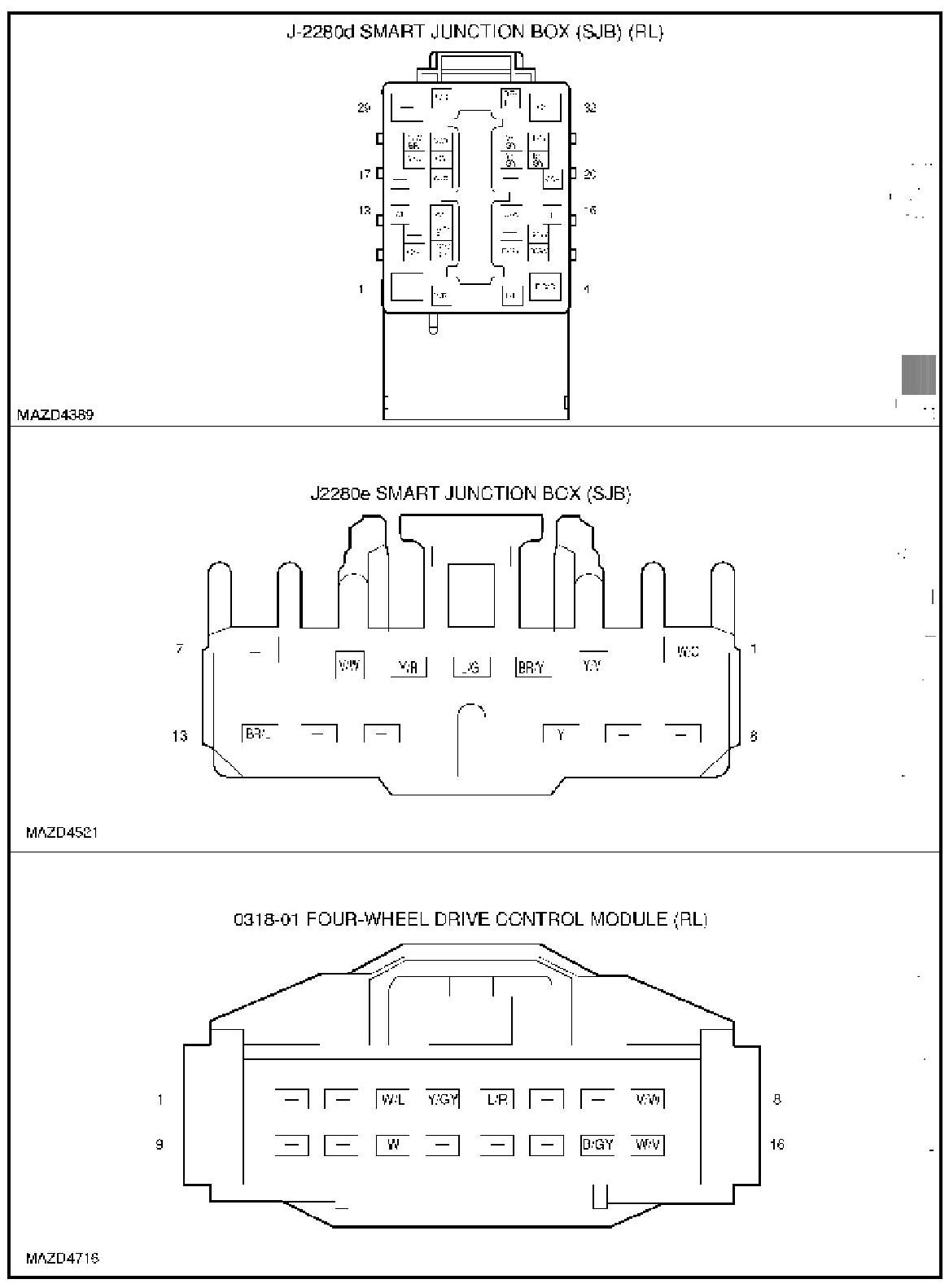

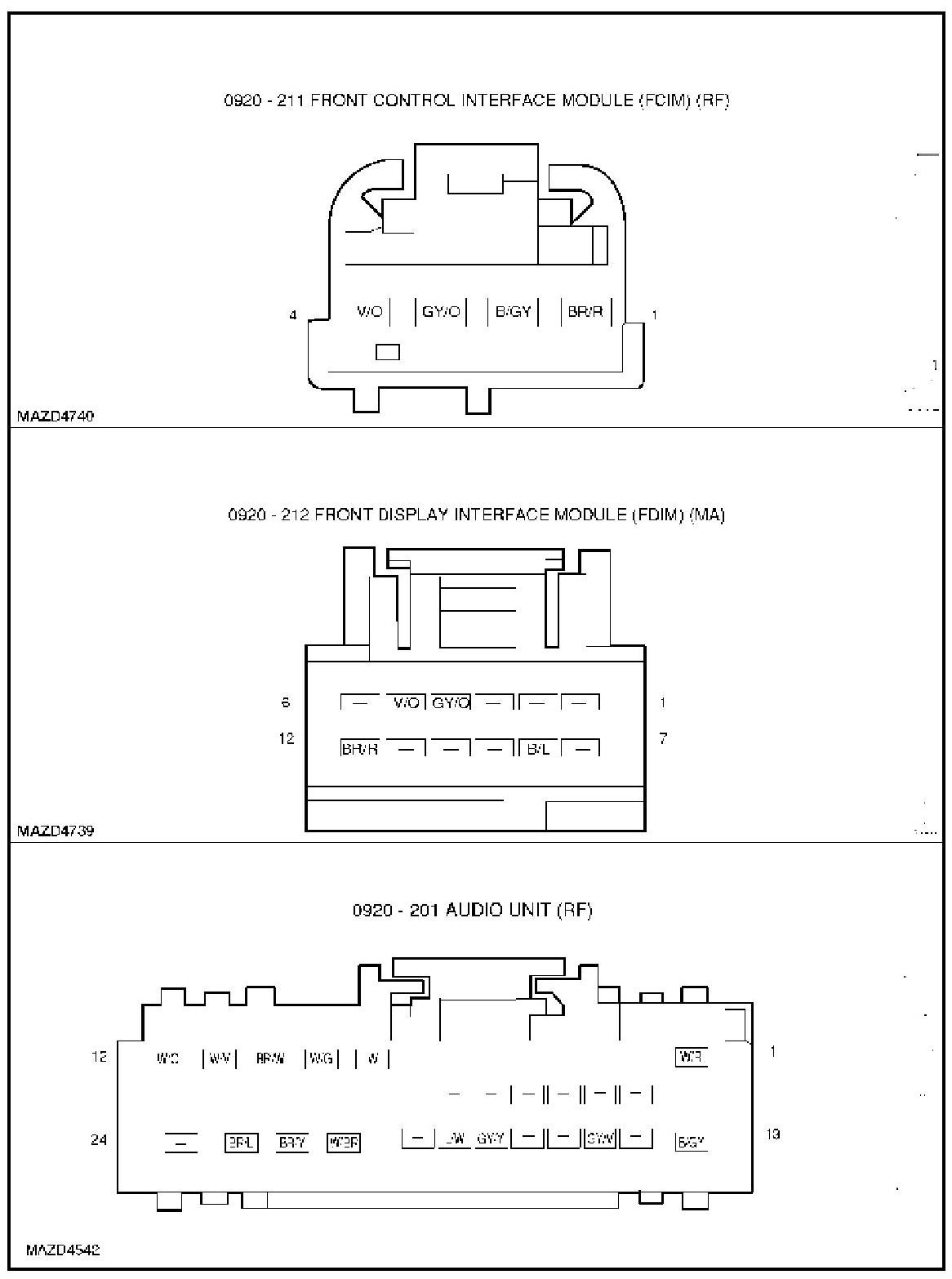

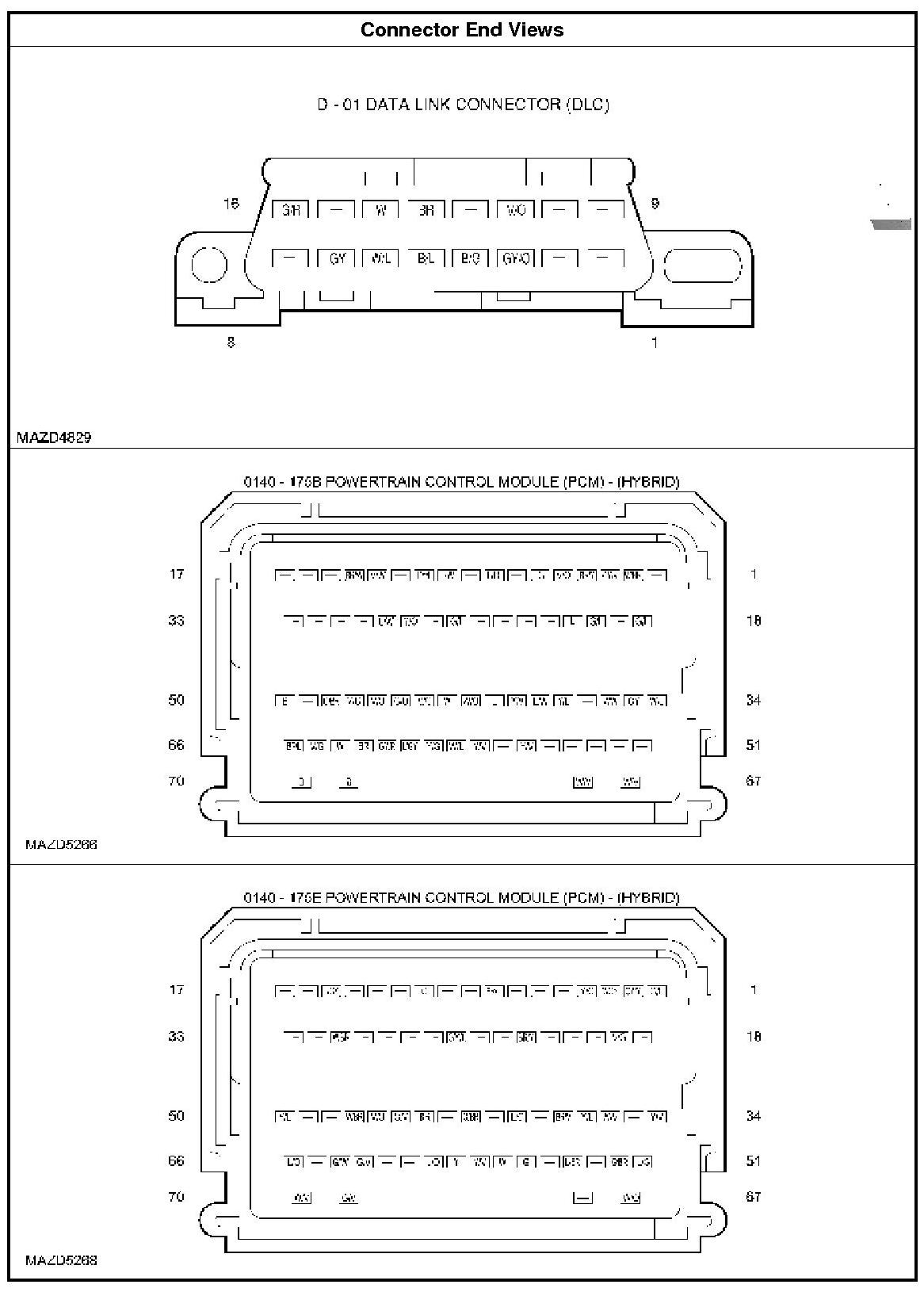

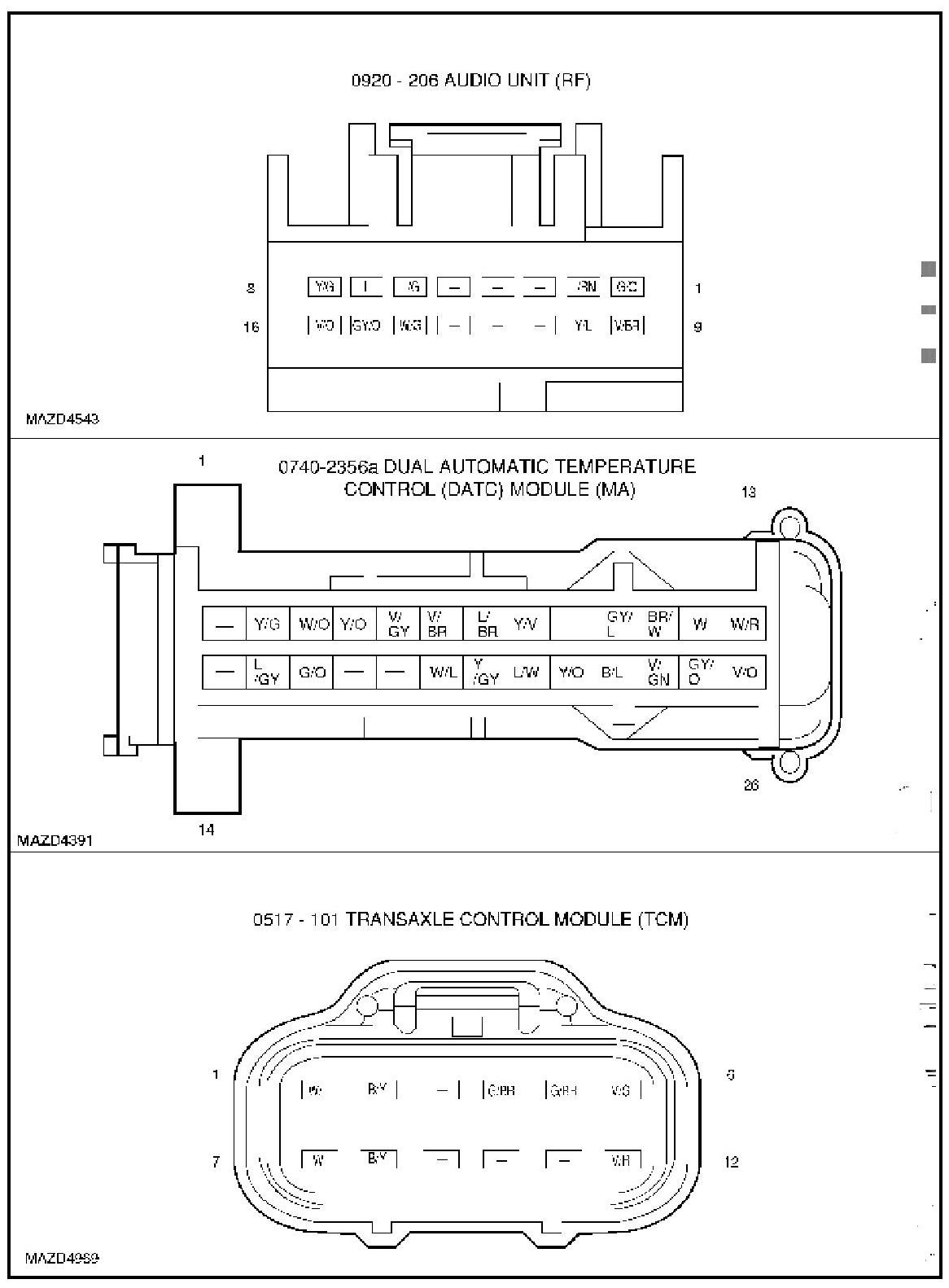

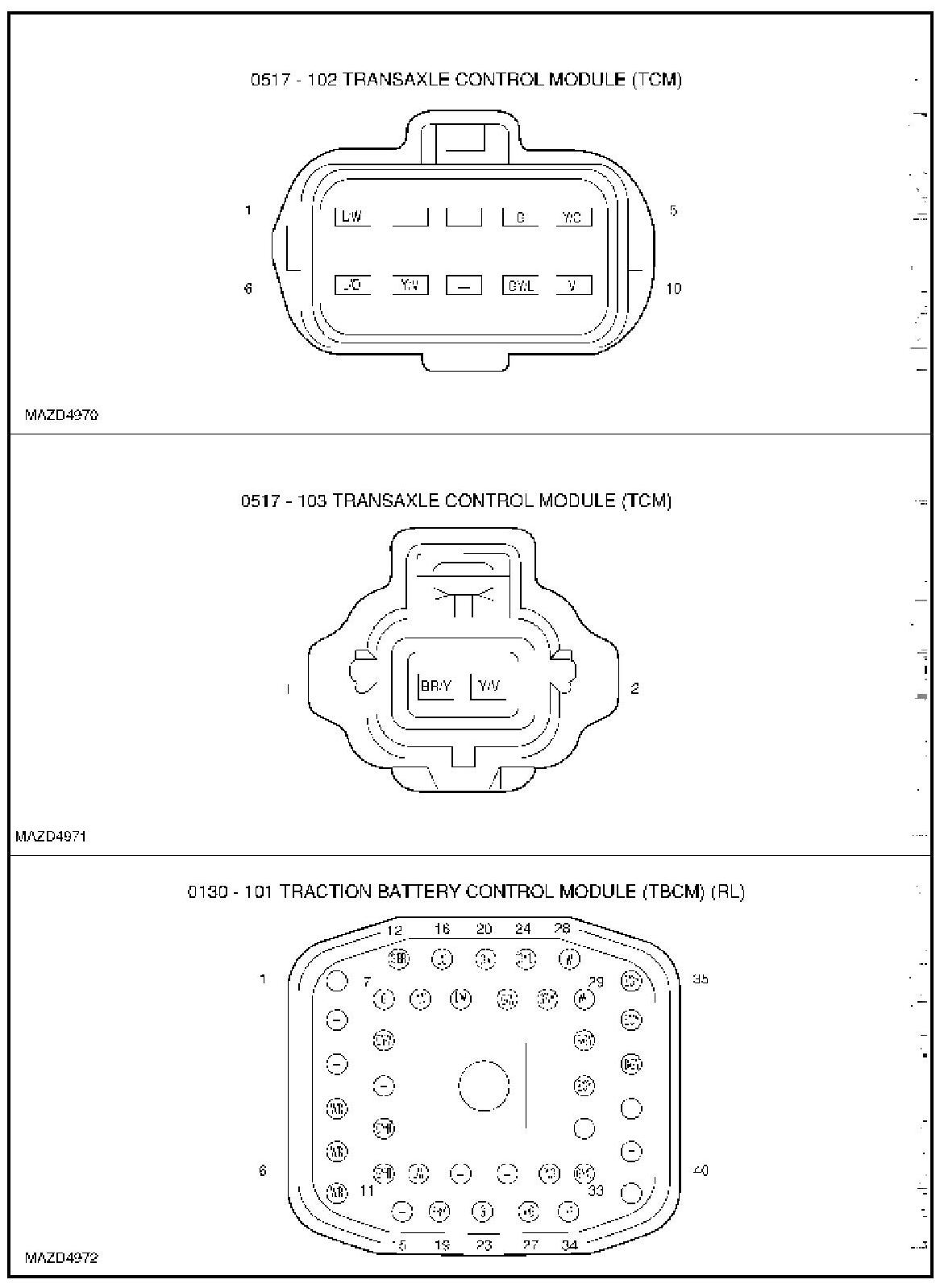

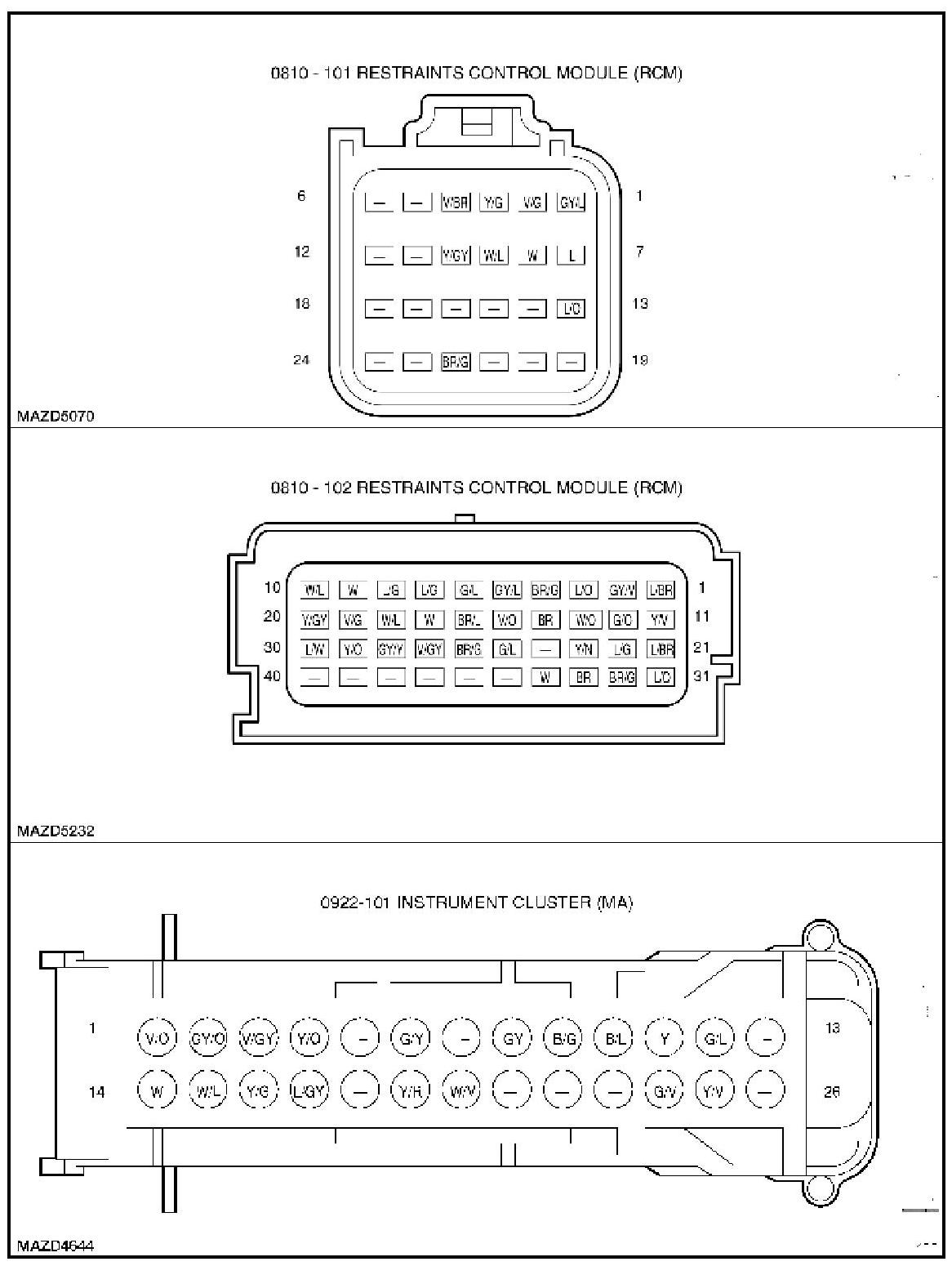

Home >> Mazda >> 2009 >> Tribute 4WD L4-2.5L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> CAN Communication Network >> Connector End Views - Control Systems
