Test 4: Fuel Delivery System
Test 4: Fuel Delivery System
TEST 4: FUEL DELIVERY SYSTEM

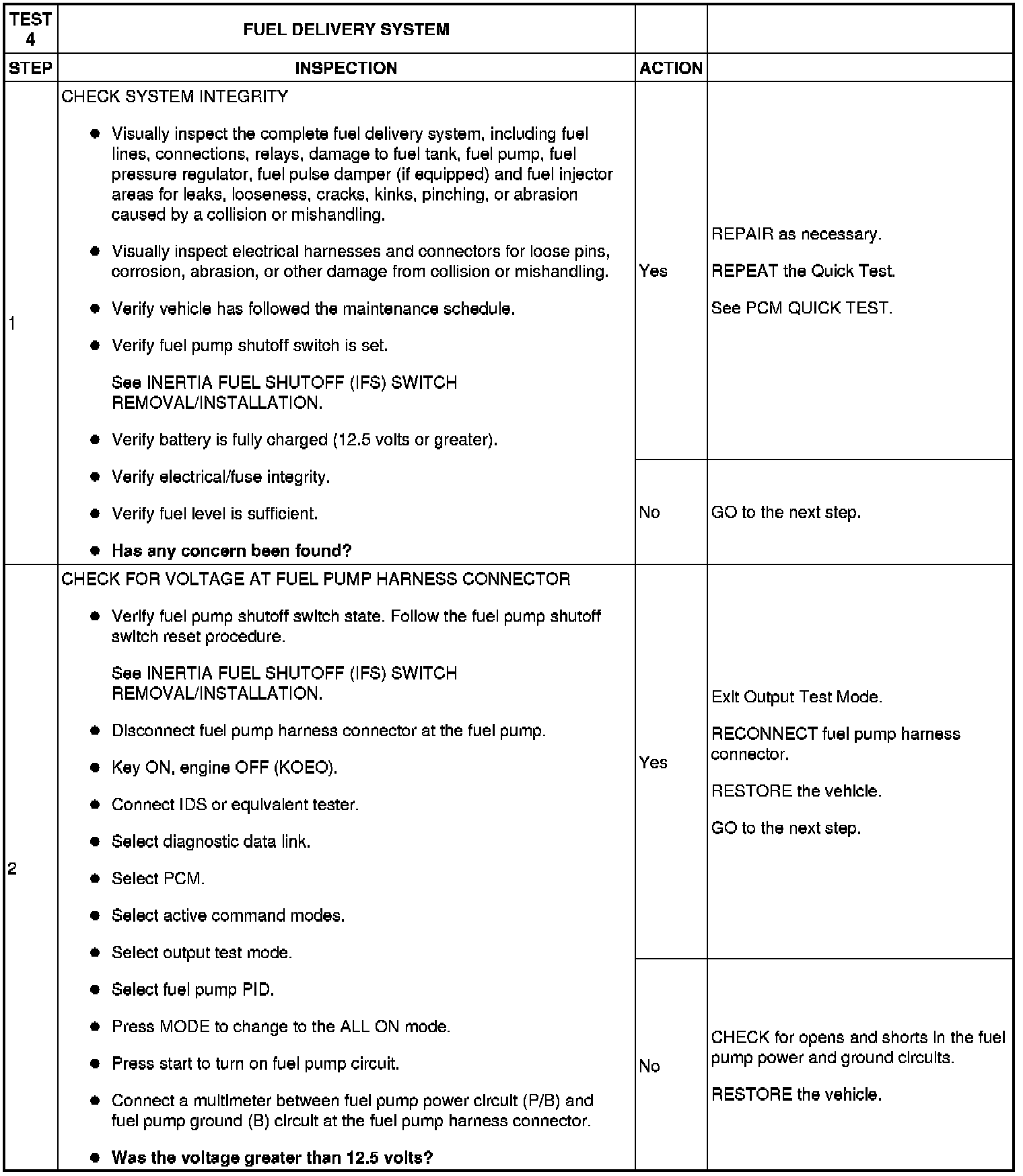

Step 1-Step 2:

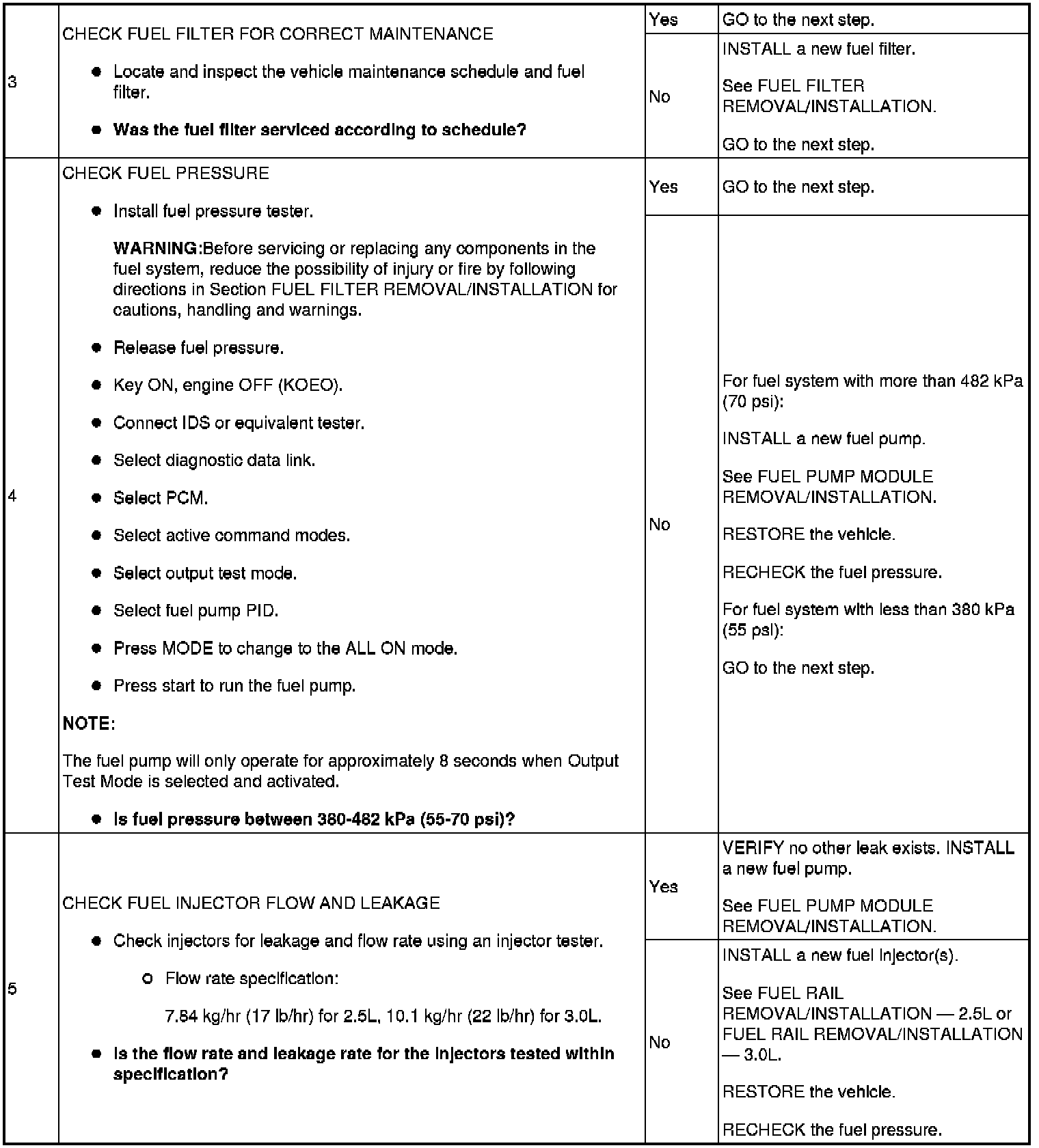

Step 3-Step 5:
Step 6-Step 7:
