Home >> Mazda >> 2009 >> Tribute 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Components >> Front Blower Motor Resistor Assembly

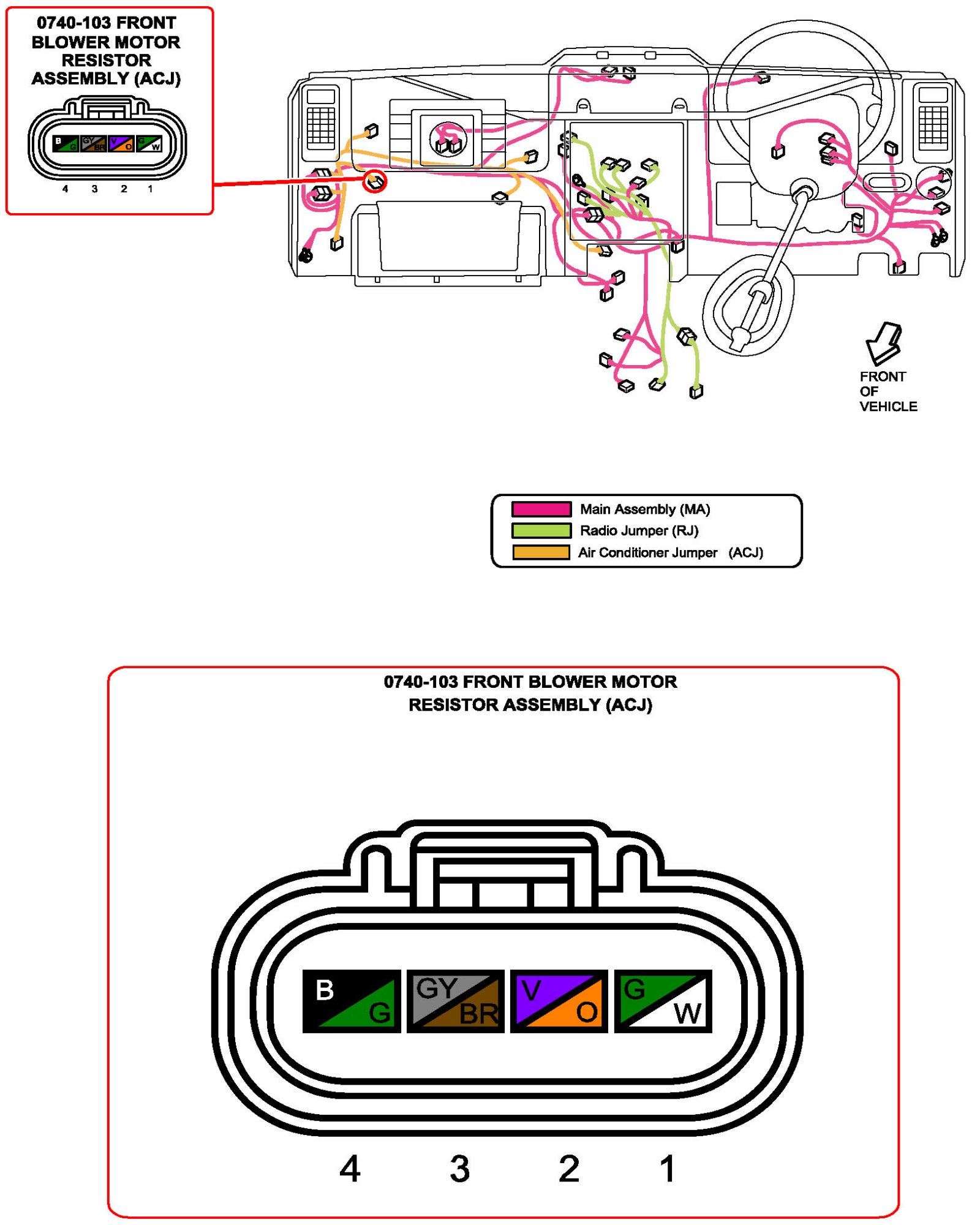

Front Blower Motor Resistor Assembly

Front Blower Motor Resistor Assembly:
