Side Impact Sensor, Driver
Side Impact Sensor, Driver

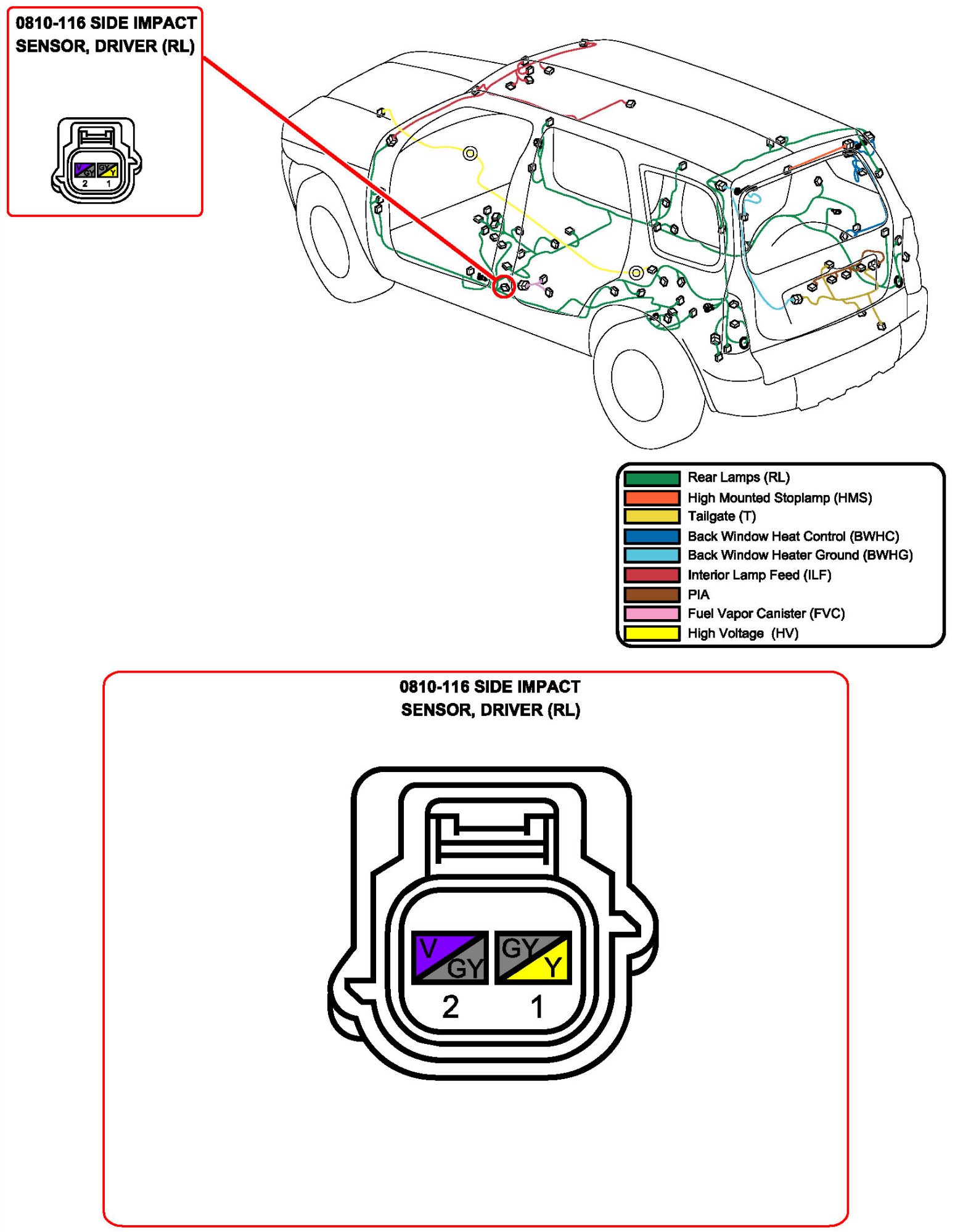

Side Impact Sensor, Driver:

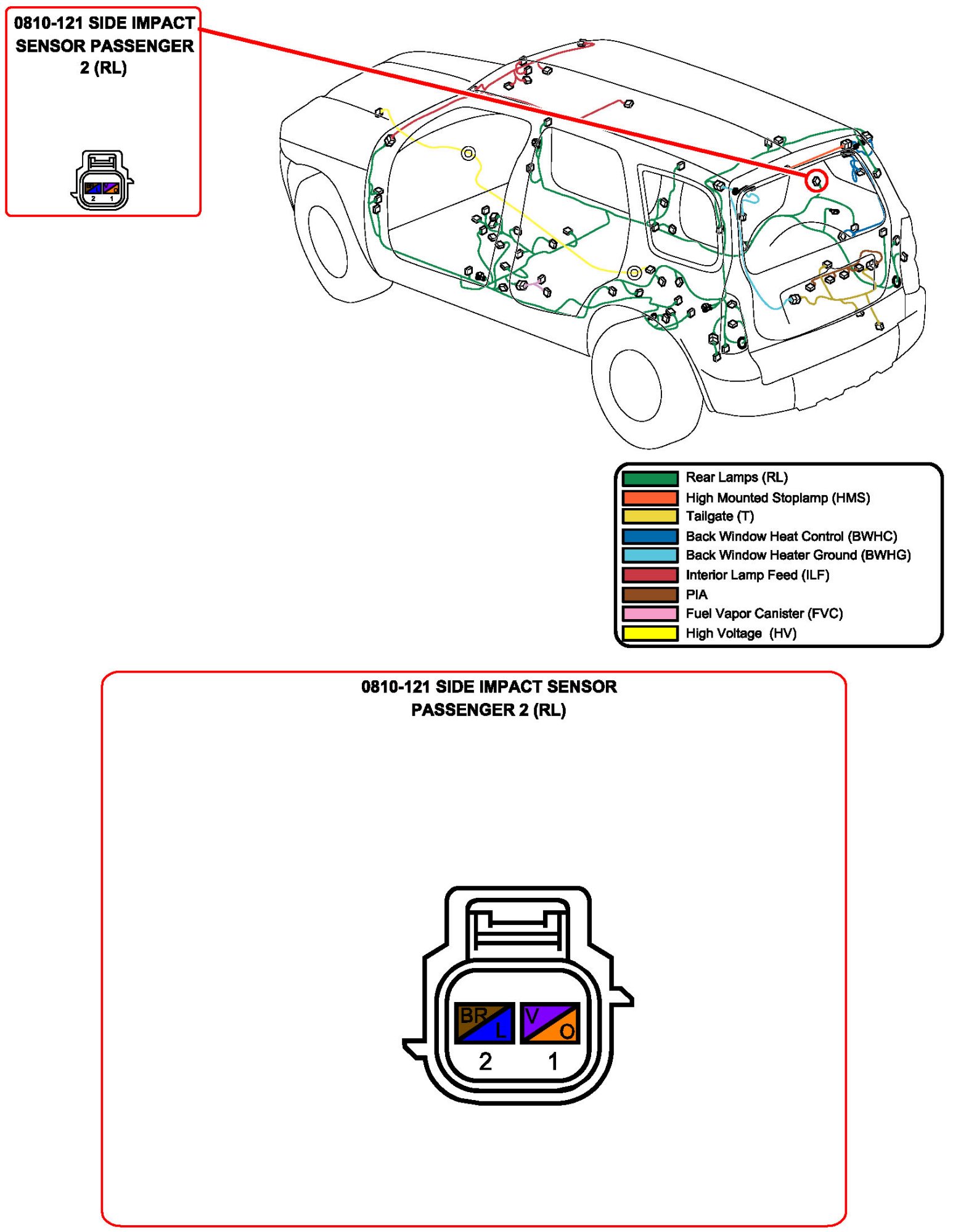

Side Impact Sensor Passenger 2:

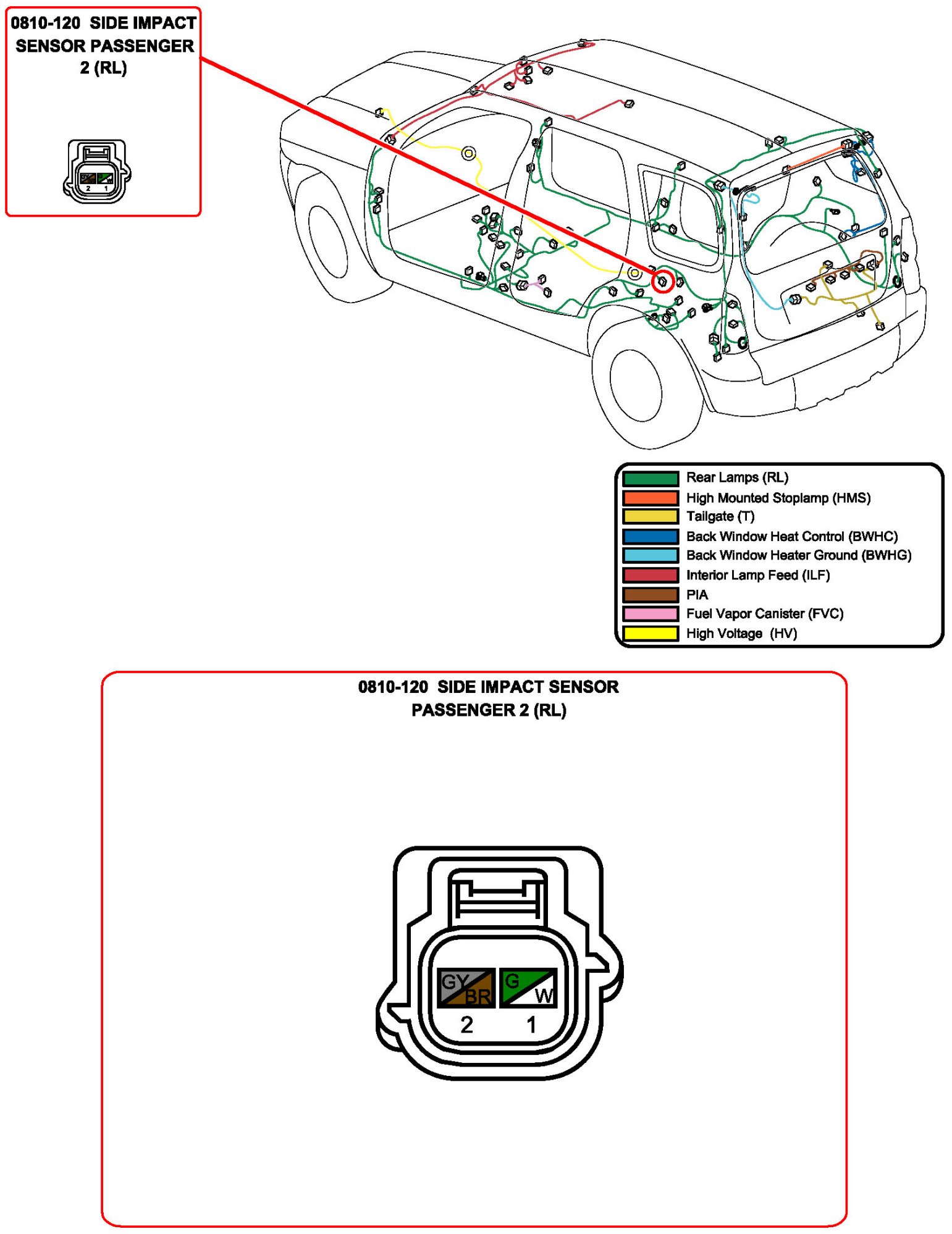

Side Impact Sensor Passenger 2:
Front Impact Sensor, Left:

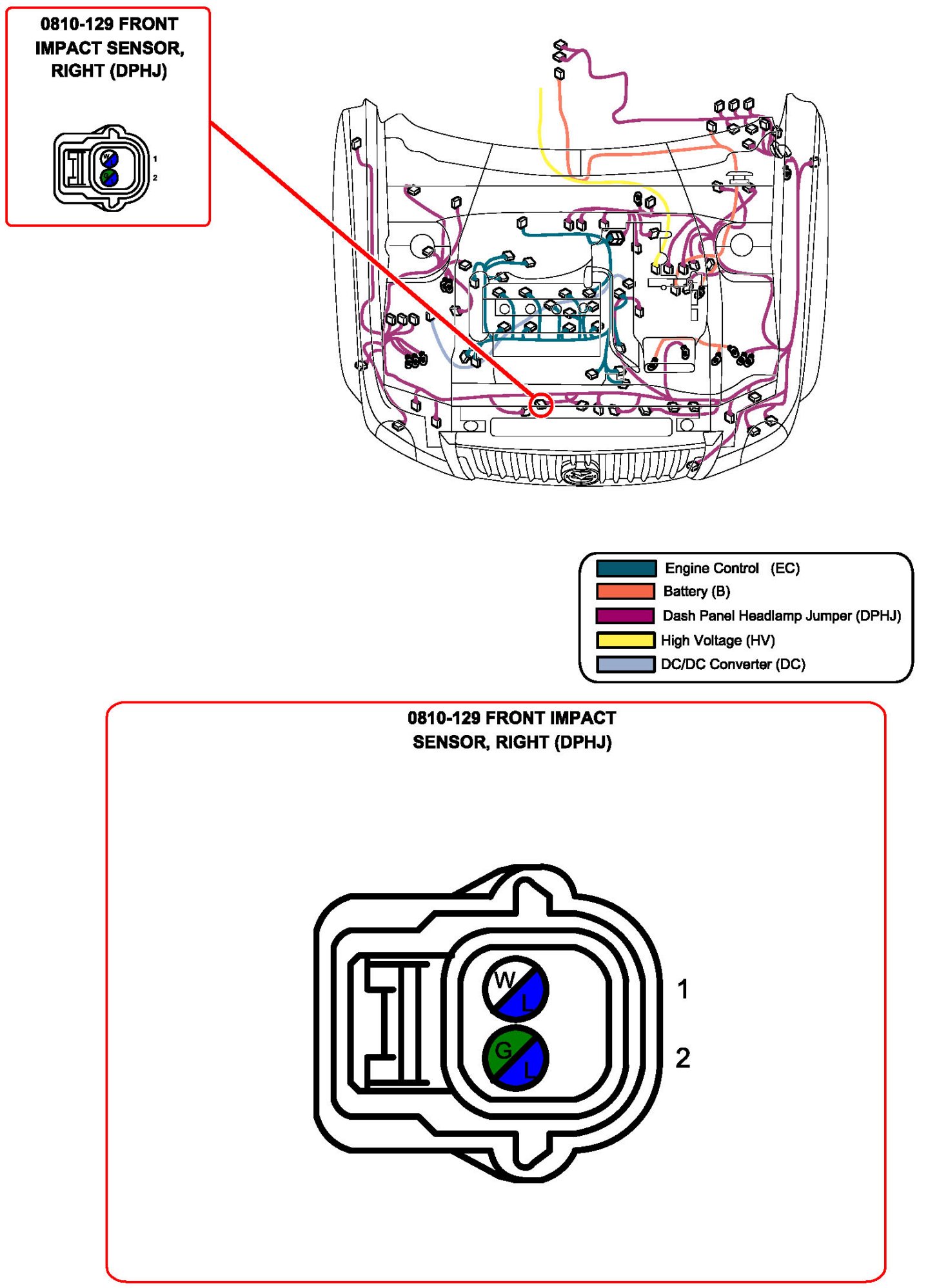

Front Impact Sensor, Right:
