Home >> Mazda >> 2009 >> Tribute 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Components >> Powertrain Control Module

Powertrain Control Module

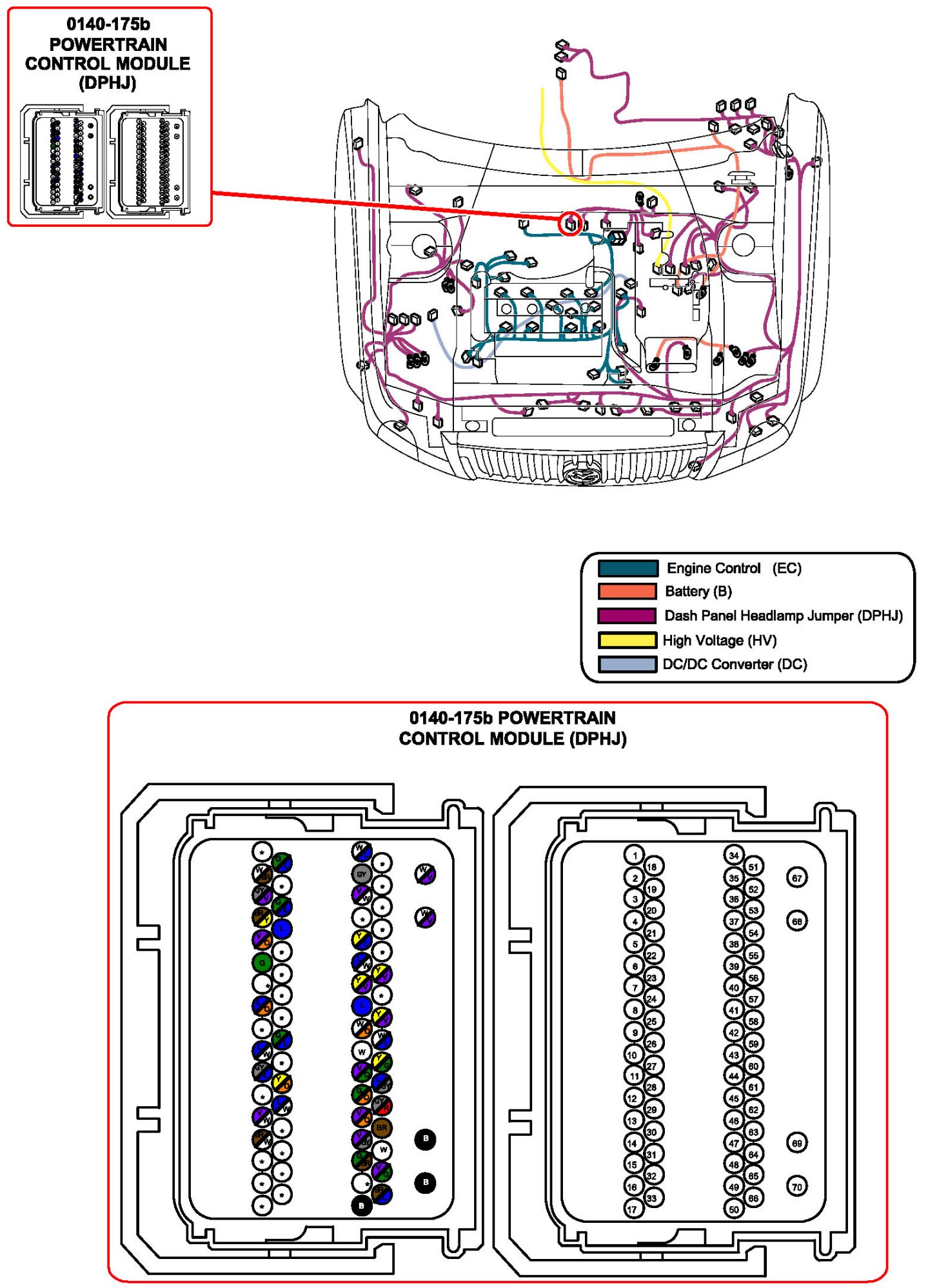

Powertrain Control Module:

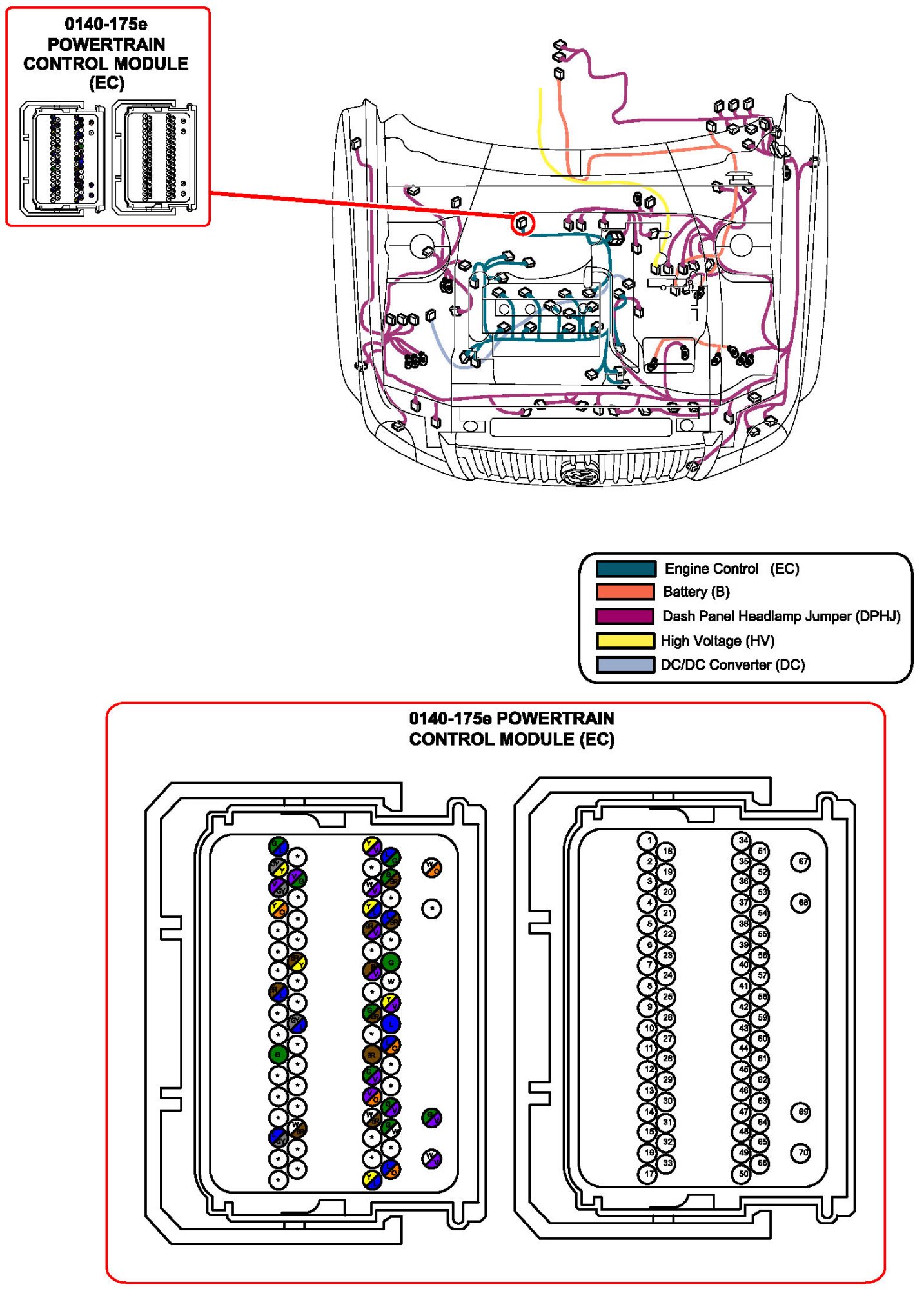

Powertrain Control Module:

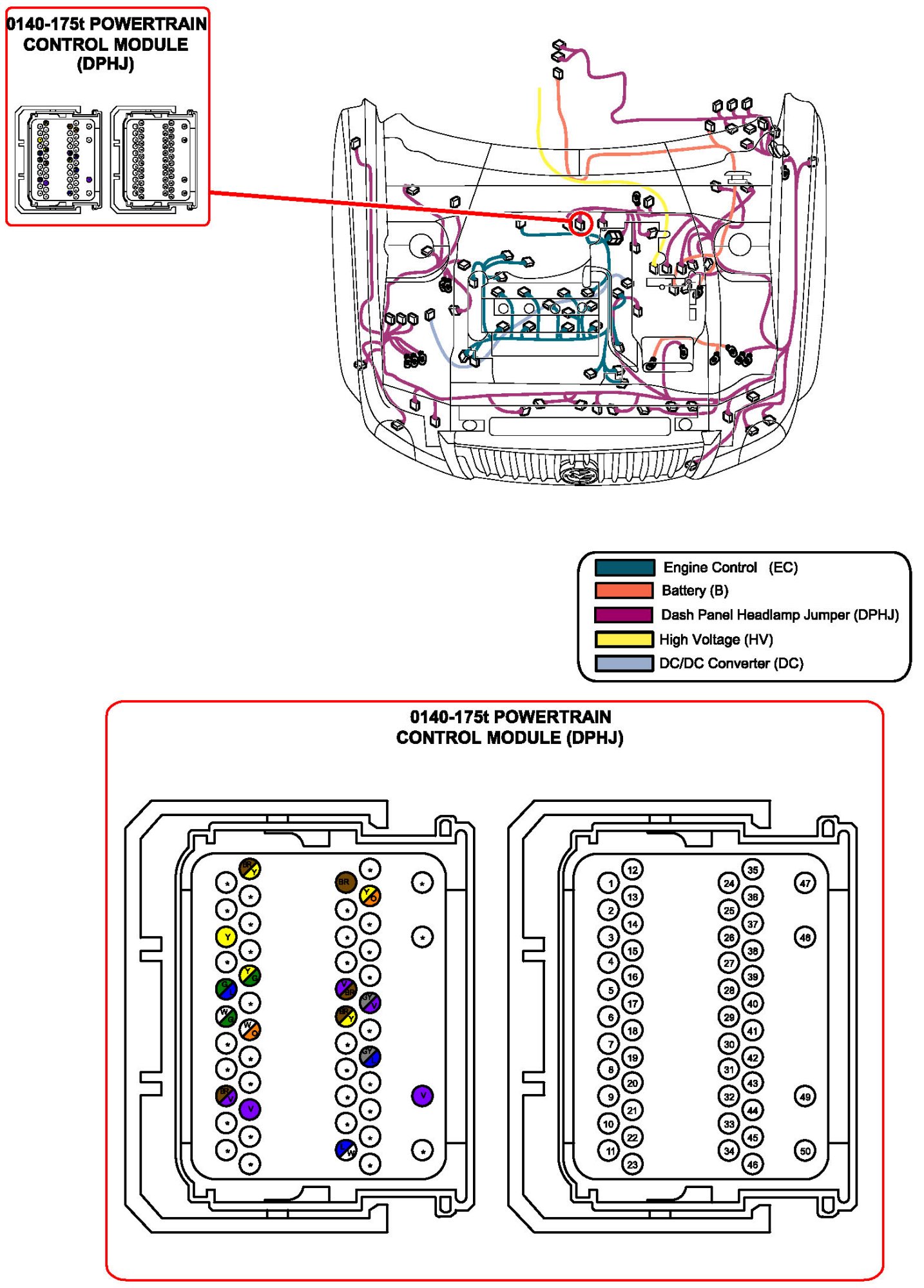

Powertrain Control Module:
